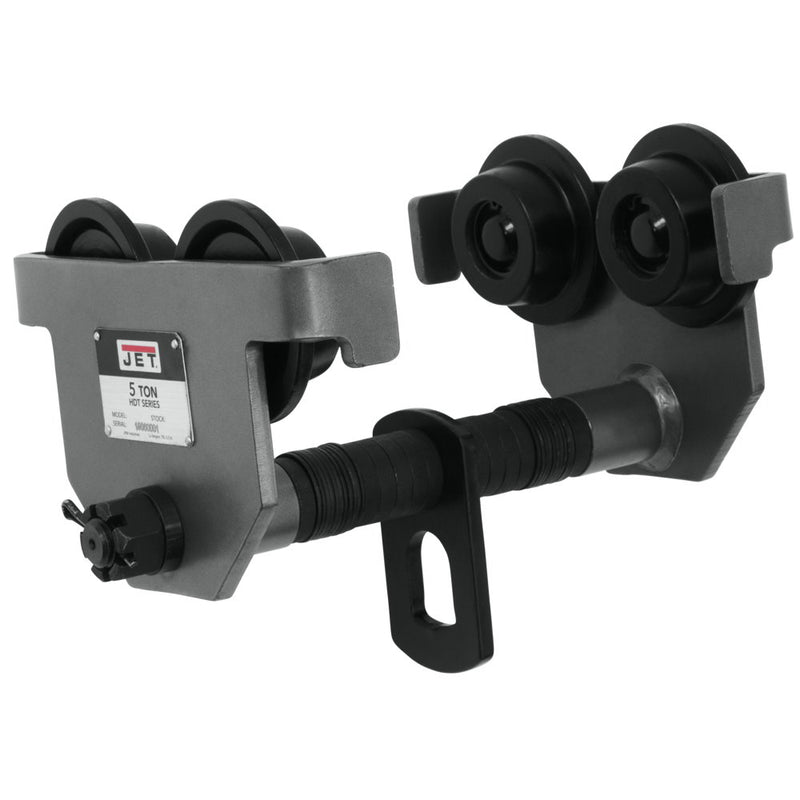

Jet 262050 5-HDT, 5-Ton Manual Trolley

Jet 262050 5-HDT, 5-Ton Manual Trolley

  • $448.99

Ships In 1-10 Business Days




FEATURES:
• Durability
• Welded all-steel frame and powder coat finish provide maximum durability and protection
• Built-in bumper guards on the side plates increase safety and extend trolley life
• Hardened steel wheels and double sealed lubricated ball bearings provide smooth movement
• Easily adjustable to wide-flange H-beams, standard I-beams or curved track with the included spacer washers
• Standards
• Complies with OSHA Regulations, ANSI / ASME B30.11 and B30.17 standards
• Certification- Load tested to 125% of capacity with certificate

SPECIFICATIONS:
• Minimum Beam Flange Width (In.): 4-5/8 - 8
• Minimum Beam Heighth (In.): 10
• Load Capacity (Tons): 5
• Capacity (Lbs.): 11,000
• Minimum Beam Curve Radius (In.): 55

JET® HDT Series manual trolleys are available in capacities from 1/2 ton to 5 Tons. They are designed for low maintenance, trouble free use on wide flange H-beams, standard I-beams or curved track. Each JET® Manual Trolley conforms to OSHA regulations, and ANSI / ASME standards
