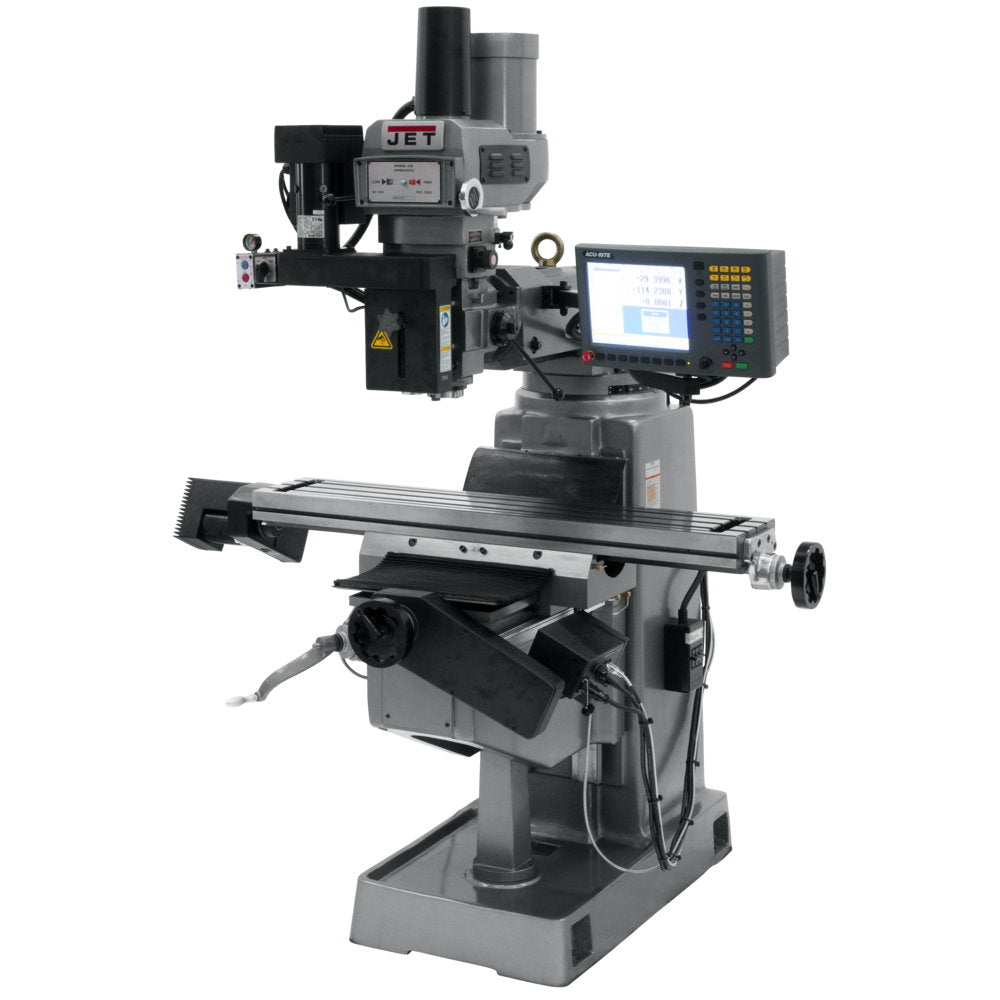

Jet 690575 JTM-949EVS/230 Mill With 2-Axis ACU-RITE G-2 MILLPWR CNC


Price:
Sale price$39,649.00 Regular price$42,611.00

Description

Jet 690575 Description

JET offers complete, factory-installed CNC packages with your choice of 2 or 3-axis CNC controls. The Computer Numerical Control system brings the added precision of digital automation to the process, allowing the user greater control and efficiency. Meehanite® casted JET Vertical Mills with CNC packages deliver accurate results every time. All the features you've come to expect backed by the industry-leading JET Two Year Warranty

Jet 690575 Features

  • Certified Meehanite® catings
  • Class 7 bearings support the spindle for maximum ridgity in heavy cutting applications
  • Precision bored and honed milling head
  • Spindle head is internally cooled extending bearing, belt and motor life
  • Quick spindle feed nut easily adjusts to different depths
  • One-piece quill pinion and shaft
  • Three-stage power downfeed with automatic stop
  • Heavy-duty spindle brake
  • Precision hardened and ground ways and table

Jet 690575 Specifications

• Quill Down Feed Rates (IPR): .0015 - .003 - .006
• Travel of Knee (In.): 15-3/4
• Head Movement (Deg.): 90° R & L, 45° F & B
• Motor (HP): 3HP, 230V, 3Ph
• Overall Dimensions (L x W x H) (In.): 67 x 64 x 86
• Spindle Travel (In.): 5
• Style (Type): CNC
• Spindle Taper (In. x TPI): R-8
• Work Table Weight Capacity (Lbs.): 720
• CNC Package: ACU-RITE MILLPWR® G2
• Table Longitudinal Travel (In.): 36
• Table Size (L x W) (In.): 9 x 49
• Weight (Lbs.): 2,420
• T-Slots Number and Size (In.): 3 and 5/8
• Table Cross Travel (In.): 12-5/8
• Number of Spindle Speeds: Variable
• T-Slot Centers (In.): 2-1/2
• Range of Spindle Speeds (RPM): 60 - 4,500
• Travel of Ram (In.): 15-1/4
• Distance Spindle to Column (Max.) (In.): 18-1/8
• Distance Spindle to Column (Min.) (In.): 4-3/4
• Quill Diameter (In.): 3-3/8
• Number of Axis: 2
• Collet Capacity: 1/8 - 7/8
• Max Distance Spindle to Table (In.): 20-3/4
• Column Width (In.): 18
• Saddle Width (In.): 11-1/2
• Inverter Type: Delta, B
• Table Longitudinal Travel With Powerfeed (In.): 30-3/4
