Description
FEATURES:
• The cyclone's two stage separation provides more working CFM than comparable horsepower single stage units
• Heavy debris is pulled down to collection drum before debris stream reaches the filter, providing constant suction
• Direct mounted filter eliminates inefficiencies from ridged flex hosing and bends
• Fine dust particles are filtered through pleated material that captures even the smallest particles down to 1 micron and below
• Heavy debris is captured in a 66 gallon drum with quick release levers and independent casters for quick emptying
• Included radio frequency remote control works from up to 50 feet away
• Remote timer settings allows system to run for 2, 4, 6, or 8 hours before automatic shutoff
• Double paddle manual cleaning system quickly cleans the pleated filter
• Swivel casters make it easy to move the unit around the shop
SPECIFICATIONS:
• Prewired Voltage: 230 V
• Motor Power: 3 HP
• 1-Hose Connection Diameter: 8"
• Filter Efficiency (Micron): 1
• Impeller Diameter: 15"
• Motor Voltage: 230 V
• 3-Hoses Connection Diameter: 4"
• Motor Phase (PH): 1
• Impeller Material: Steel
• Number of Air Inlets: 1 at 8", 3 at 4"
• Static Pressure (Wc.): 2.0
• Sound Rating: 76 Db
• Velocity @ 8": 5609 FPM
• Air Flow @ 8": 1963 CFM
• Motor Amps: 13
• Collection Drum Capacity: 66 gal
• Max. Static Pressure (Wc.): 8.9
• Drum Collection Bag (Dia. x L/In.): 38-9/16 x 47-1/4
• Canister Collection Bag (Dia. x L/In.): 23-5/8 x 19-11/16
• Canister Filter Diameter: 14-9/16"
• Canister Filter Length: 38-3/8"
• Assembled Dimensions (L x W x H): 30-7/16" x 57" x 88"
• Footprint (L x W): 57" x 30-7/16"

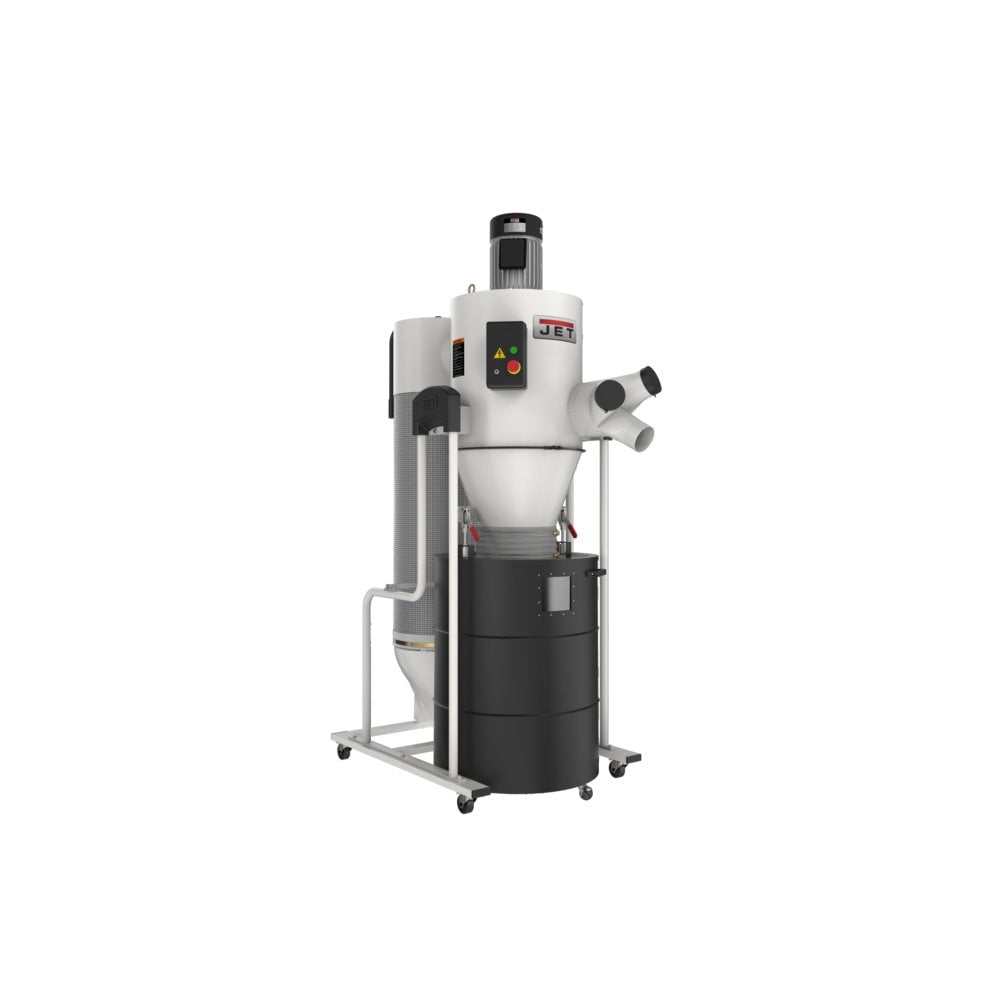

Are you ready to get more from your dust collector? The Cyclone Dust Collector Collection from JET delivers the efficiency you’ve been waiting for. With a direct mount filter, a radio frequency remote control and a large collection bin these dust collectors take your shop’s capabilities to a new level. Upgrade to a JET Cyclone Dust Collector and experience The Power of Efficiency.
• The cyclone's two stage separation provides more working CFM than comparable horsepower single stage units
• Heavy debris is pulled down to collection drum before debris stream reaches the filter, providing constant suction
• Direct mounted filter eliminates inefficiencies from ridged flex hosing and bends
• Fine dust particles are filtered through pleated material that captures even the smallest particles down to 1 micron and below
• Heavy debris is captured in a 66 gallon drum with quick release levers and independent casters for quick emptying
• Included radio frequency remote control works from up to 50 feet away
• Remote timer settings allows system to run for 2, 4, 6, or 8 hours before automatic shutoff
• Double paddle manual cleaning system quickly cleans the pleated filter
• Swivel casters make it easy to move the unit around the shop
SPECIFICATIONS:
• Prewired Voltage: 230 V
• Motor Power: 3 HP
• 1-Hose Connection Diameter: 8"
• Filter Efficiency (Micron): 1
• Impeller Diameter: 15"
• Motor Voltage: 230 V
• 3-Hoses Connection Diameter: 4"
• Motor Phase (PH): 1
• Impeller Material: Steel
• Number of Air Inlets: 1 at 8", 3 at 4"
• Static Pressure (Wc.): 2.0
• Sound Rating: 76 Db
• Velocity @ 8": 5609 FPM
• Air Flow @ 8": 1963 CFM
• Motor Amps: 13
• Collection Drum Capacity: 66 gal
• Max. Static Pressure (Wc.): 8.9
• Drum Collection Bag (Dia. x L/In.): 38-9/16 x 47-1/4
• Canister Collection Bag (Dia. x L/In.): 23-5/8 x 19-11/16
• Canister Filter Diameter: 14-9/16"
• Canister Filter Length: 38-3/8"
• Assembled Dimensions (L x W x H): 30-7/16" x 57" x 88"
• Footprint (L x W): 57" x 30-7/16"
Are you ready to get more from your dust collector? The Cyclone Dust Collector Collection from JET delivers the efficiency you’ve been waiting for. With a direct mount filter, a radio frequency remote control and a large collection bin these dust collectors take your shop’s capabilities to a new level. Upgrade to a JET Cyclone Dust Collector and experience The Power of Efficiency.
