Description
Jet 287302 Description

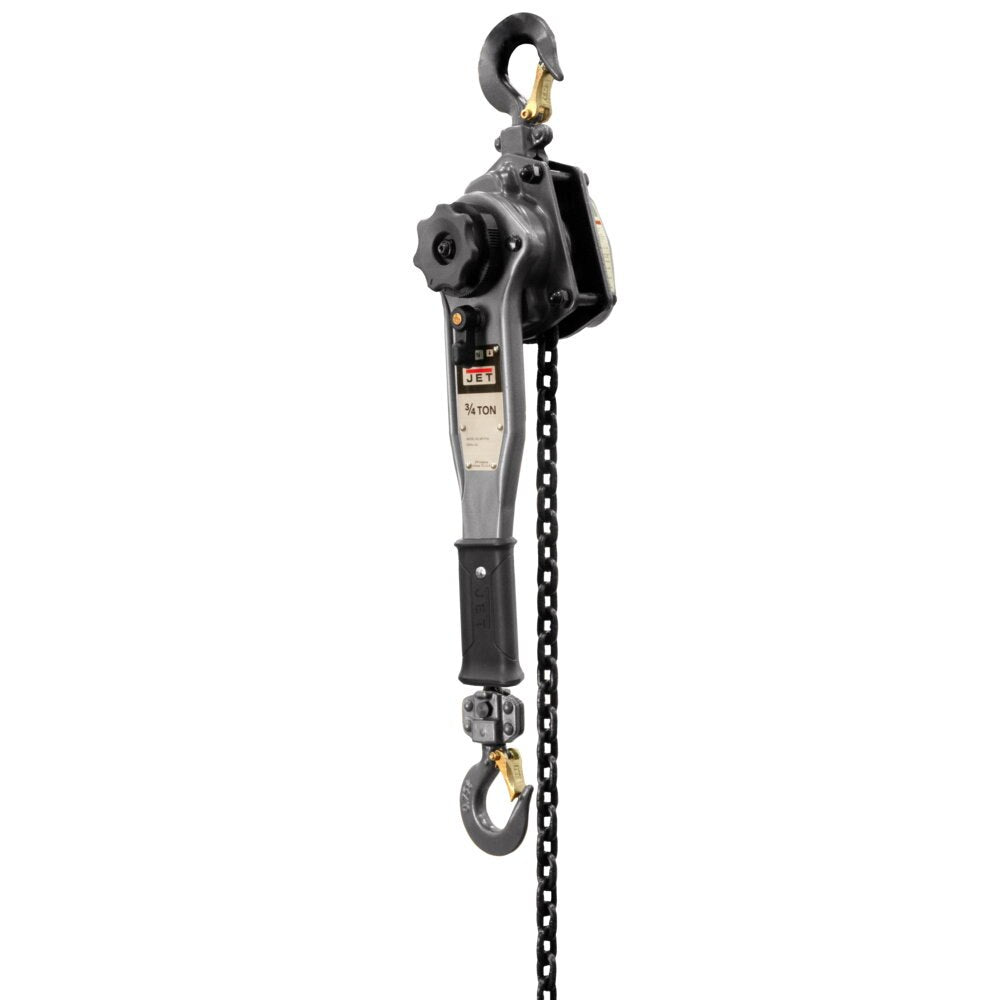

JET® JLP-A Series lever hoists combine safety, reliability, and durability that are designed to perform in light to medium-duty industrial applications. The patented Brake Wear Indicator increases safety by letting you know when to replace the friction disks. JET® also offers the option of shipyard hooks, virtually eliminating stretched hooks caused by point or tip loading. The JET® JLP-A lever hoist is available in ¼ ton to 6 ton capacities with standard lifts of 5, 10, 15, and 20 feet (custom lifts available). The JET® JLP-A Series is the perfect choice for a contractor grade lever hoist.
Jet 287302 Features
- Patented brake wear indicator provides visual indication when to replace worn friction disks
- Weston Style, double pawl brake design splits the load to opposite sides of the ratchet gear for greater load security
- Industrial rated alloy steel hooks rotate 360 degrees for easy rigging
- Hooks slowly stretch to indicate an overload situation increasing jobsite safety
- Cast steel safety latches are secured with Allen screws and lock nuts
- Grade 80 black oxide coated for added durability
- Needle bearing design increases efficiency and promotes smooth operation
- Impact resistant all steel construction for added durability and protection
- This product complies with ANSI / ASME B30.21 and HST-3 standards
- Load tested to 125% of capacity with certificate
Jet 287302 Specifications
| Load Capacity | 3/4 tons |
| Lift | 15' |
| Overload Protection | No |
| Ship Yard Hooks | No |
| Headroom | 12-4/5" |
| Handle Length | 11" |
| Lever Pull Force | 31 |
| Lift per Turn | 4/5" |
| Number of Falls | 1 |
| Load Chain Dimensions | 6mm x 18mm |
| Hook Throat Opening | 1-1/2" |
| Overall Width | 5-5/6" |
| Weight | 19 lbs |
