Description
FEATURES:

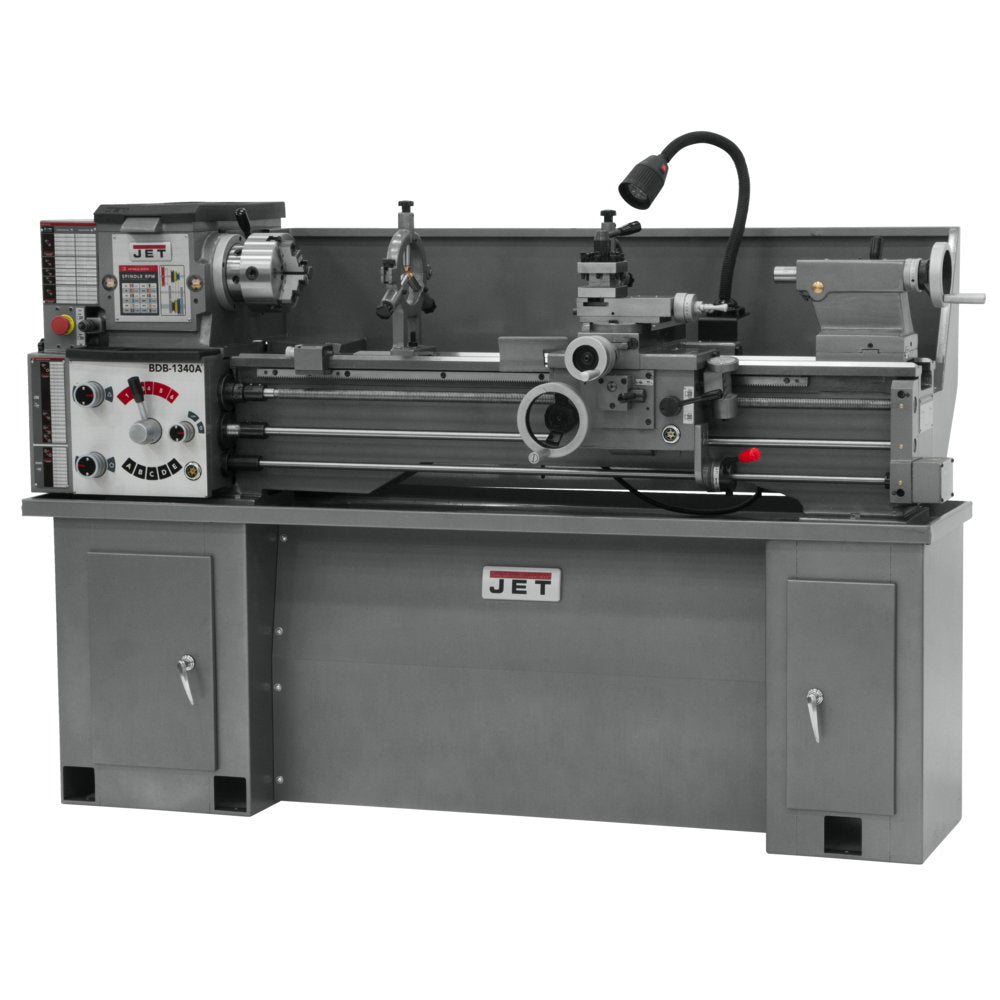

• One of the most popular JET lathes now comes with an enclosed gear box
• Enclosed gear box design provides smooth, quiet operation
• Fast, easy speed changes
• Hardened and ground gears are featured in the headstock and gearbox
• D1-4 spindle is precision ground for accuracy and supported by high quality tapered roller bearings
• Headstock is constantly oiled during operation
• Gear box gives wide inch threading and feed capabilities with no gear changes
• V-way bed design is induction hardened and ground
• Gap bed section provided for larger diameter work
• Independent leadscrew and feed rod
SPECIFICATIONS:
• Number of Longitudinal and Cross Feed Rates: 40
• Number of Metric Threads: 23
• Max Tool Size (In.): 5/8 x 5/8
• Drive: SV_1375591258789
• Overall Dimensions (L x W x H) (In.): 71 x 32 x 45
• Swing Through Gap (In.): 18-3/4
• Weight (Lbs.): 1,154
• Width of Bed (In.): 7-3/8
• Motor (HP): 2 HP, 230V, 1Ph
• Swing Over Bed (In.): 13
• Cross Slide Travel (In.): 6-5/16
• Taper in Tailstock Spindle: MT-3
• Compound Slide Travel (In.): 2-11/16
• Range of Metric Threads: .45 - 10
• Carriage Travel (In.): 35
• Steady Rest Capacity (more...)
• One of the most popular JET lathes now comes with an enclosed gear box
• Enclosed gear box design provides smooth, quiet operation
• Fast, easy speed changes
• Hardened and ground gears are featured in the headstock and gearbox
• D1-4 spindle is precision ground for accuracy and supported by high quality tapered roller bearings
• Headstock is constantly oiled during operation
• Gear box gives wide inch threading and feed capabilities with no gear changes
• V-way bed design is induction hardened and ground
• Gap bed section provided for larger diameter work
• Independent leadscrew and feed rod
SPECIFICATIONS:
• Number of Longitudinal and Cross Feed Rates: 40
• Number of Metric Threads: 23
• Max Tool Size (In.): 5/8 x 5/8
• Drive: SV_1375591258789
• Overall Dimensions (L x W x H) (In.): 71 x 32 x 45
• Swing Through Gap (In.): 18-3/4
• Weight (Lbs.): 1,154
• Width of Bed (In.): 7-3/8
• Motor (HP): 2 HP, 230V, 1Ph
• Swing Over Bed (In.): 13
• Cross Slide Travel (In.): 6-5/16
• Taper in Tailstock Spindle: MT-3
• Compound Slide Travel (In.): 2-11/16
• Range of Metric Threads: .45 - 10
• Carriage Travel (In.): 35
• Steady Rest Capacity (more...)
