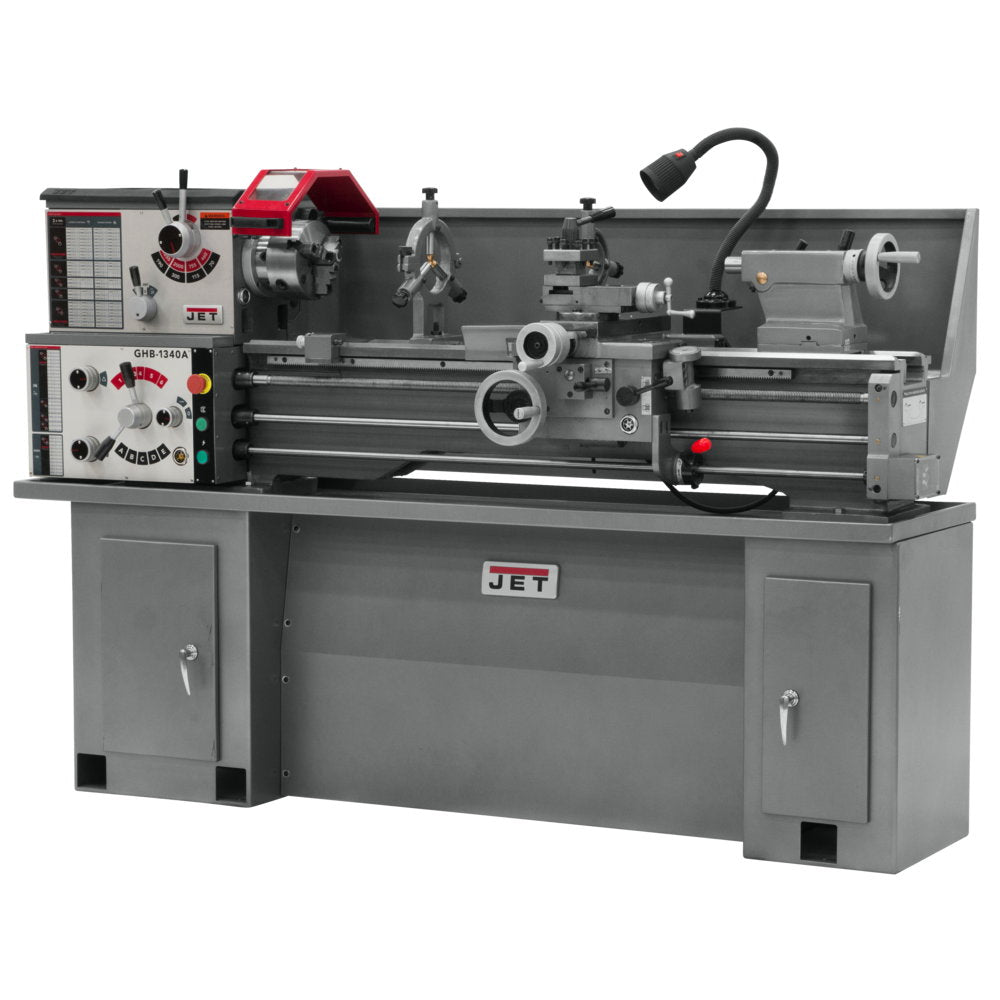

Jet 321119 GHB-1340A With Taper Attachment

Jet 321119 GHB-1340A With Taper Attachment

  • $8,639.00

Ships In 1-10 Business Days




FEATURES:
• One of the most popular JET lathes now comes with an enclosed gearbox as a standard feature
• Enclosed gearbox design provides smooth, quiet operation
• Fast, easy speed changes
• Hardened and ground gears are featured in the headstock and gearbox
• D1-4 spindle is precision ground for accuracy and supported by high quality tapered roller bearings
• Headstock is constantly being oiled during operation
• Gearbox gives wide inch threading and feed capabiltites with no gear changes
• V-way bed design is induction hardened and ground
• Gap bed section provided for larger diameter work
• Independent leadscrew and feed rod

SPECIFICATIONS:
• Number of Longitudinal and Cross Feed Rates: 40
• Number of Metric Threads: 23
• Max Tool Size (In.): 5/8 x 5/8
• Drive: SV_1375591258789
• Overall Dimensions (L x W x H) (In.): 79 x 28-1/2 x 30
• Swing Through Gap (In.): 18-3/4
• Weight (Lbs.): 1,154
• Width of Bed (In.): 7-3/8
• Motor (HP): 2 HP, 230V, 1Ph
• Swing Over Bed (In.): 13
• Cross Slide Travel (In.): 6-5/16
• Taper in Tailstock Spindle: MT-3
• Compound Slide Travel (In.): 2-11/16
• Range of Metric Threads: .45 - 10
• Accessory 1: Taper Attachment
• Carriage Travel (In.): 35
• Steady Rest Capacity (In.): 2-3/4
• Number of Inch Threads: 38
• Range of Spindle Speeds (RPM): 70 - 2,000

JET geared head bench lathes feature an enclosed gearbox for smooth, quiet operation. Precision roller bearings support the hardened and ground spindle resulting in tight tolerances. Each JET Lathe comes loaded with features you’ve come to expect, all backed by the industry leading JET Two Year Warranty.
