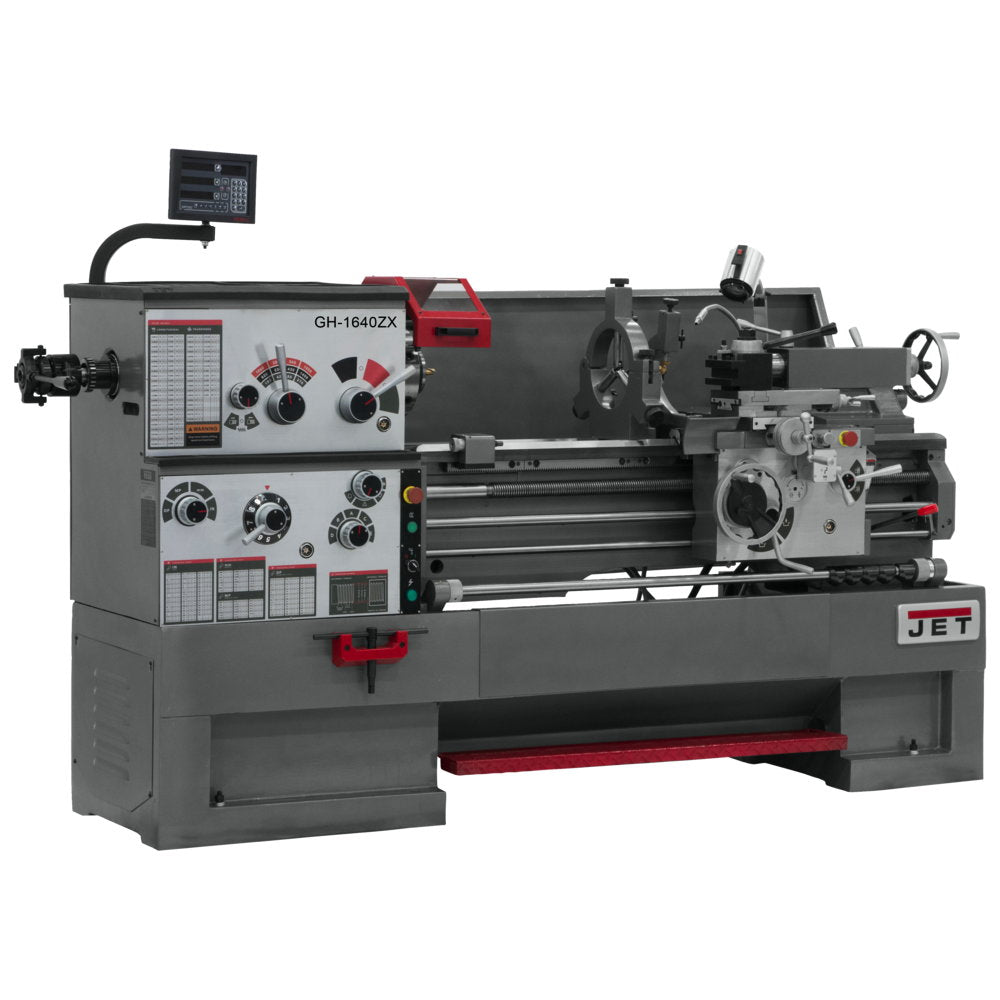

Jet 321494 GH-1640ZX With Newall DP700 DRO With Collet Closer

Jet 321494 GH-1640ZX With Newall DP700 DRO With Collet Closer

  • $25,799.00

Ships In 1-10 Business Days

• 3-1/8” bore spindle is supported by two tapered and one ball bearings
• Chrome molybdenum headstock gears are hardened, ground and shaved
• Universal gearbox allows inch, metric, diametral and module pitch threads, no change gears required
• Carriage features one-shot lubrication and Turcite-B on bed sliding surfaces
• T-slotted compound slide featuring four-way tool post
• One piece cast iron base absorbs vibration allowing heavier cuts
• High quality ANSI Class 50 wear resistant cast iron bed ways are hardened and ground
• Removable gap allows large diameter work
• Five position automatic carriage stop increases productivity
• Attractive chrome levers, dials and knobs complete this impressive package

• Number of Longitudinal and Cross Feed Rates: 122
• Number of Metric Threads: 24
• Max Tool Size (In.): 1 x 1
• Drive: SV_1375591258789
• Overall Dimensions (L x W x H) (In.): 96 x 44 x 66
• Swing Through Gap (In.): 25-7/8
• Weight (Lbs.): 5,475
• Width of Bed (In.): 13-3/8
• Motor (HP): 7-1/2 HP, 230/460, 3 Ph
• Swing Over Bed (In.): 16
• Cross Slide Travel (In.): 9
• Taper in Tailstock Spindle: MT-4
• Compound Slide(more...)
