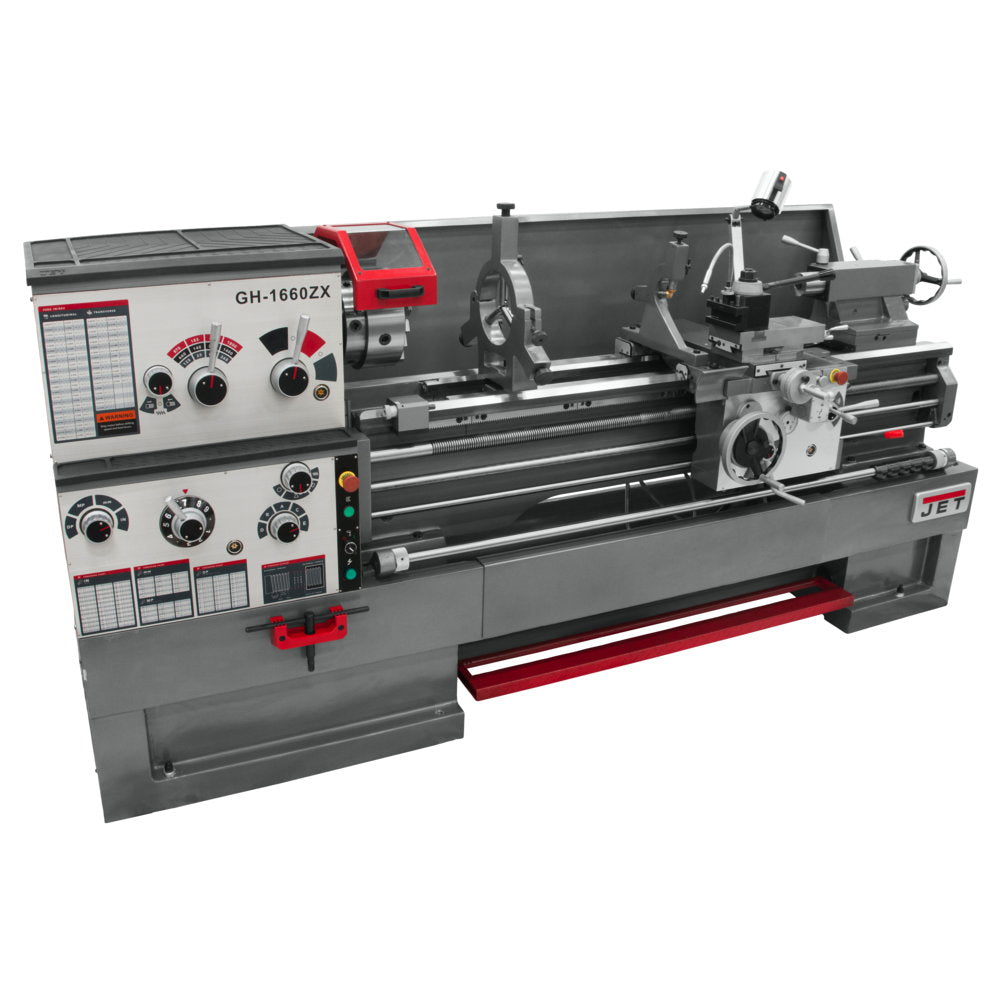

Jet JT9-321529 GH-1660ZX With Newall DP700 DRO With Taper Attachment


Price:
Sale price$37,599.00

Description

Jet 321529 Description

The ZX-Series Large Spindle Bore Lathe provides power, precision, efficiency and reliability to your metal shop. A one piece cast iron base absorbs vibrations during operation to allow heavier cuts and ensure accuracy, while the Universal Gearbox eliminates the need to change gears. Features you've come to expect in a JET Lathe that is backed by the industry-leading JET Two Year Warranty.

Jet 321529 Features

  • 3-1/8” bore spindle is supported by two tapered and one ball bearings
  • Chrome molybdenum headstock gears are hardened, ground and shaved
  • Universal gearbox allows inch, metric, diametral and module pitch threads, no change gears required
  • Carriage features one-shot lubrication and Turcite-B on bed sliding surfaces
  • T-slotted compound slide featuring four-way tool post
  • One piece cast iron base absorbs vibration allowing heavier cuts
  • High quality ANSI Class 50 wear resistant cast iron bed ways are hardened and ground
  • Removable gap allows large diameter work
  • Five position automatic carriage stop increases productivity
  • Attractive chrome levers, dials and knobs complete this impressive package

Jet 321529 Specifications

Number of Longitudinal and Cross Feed Rates 122
Number of Metric Threads 24
Max Tool Size (In.) 1 x 1
Drive SV_1375591258789
Overall Dimensions (L x W x H) (In.) 115 x 44 x 66
Swing Through Gap (In.) 25-1/2
Weight (Lbs.) 5,795
Width of Bed (In.) 13-3/8
Motor (HP) 7-1/2 HP, 230/460, 3 Ph
Swing Over Bed (In.) 16
Cross Slide Travel (In.) 9
Taper in Tailstock Spindle MT-4
Compound Slide Travel (In.) 5-1/8
Range of Metric Threads .05 - 20
Accessory 1 Taper Attachment
Carriage Travel (In.) 55-9/16
Steady Rest Capacity (In.) 3/8 - 7
Number of Inch Threads 61
Range of Spindle Speeds (RPM) 25 - 1,800
