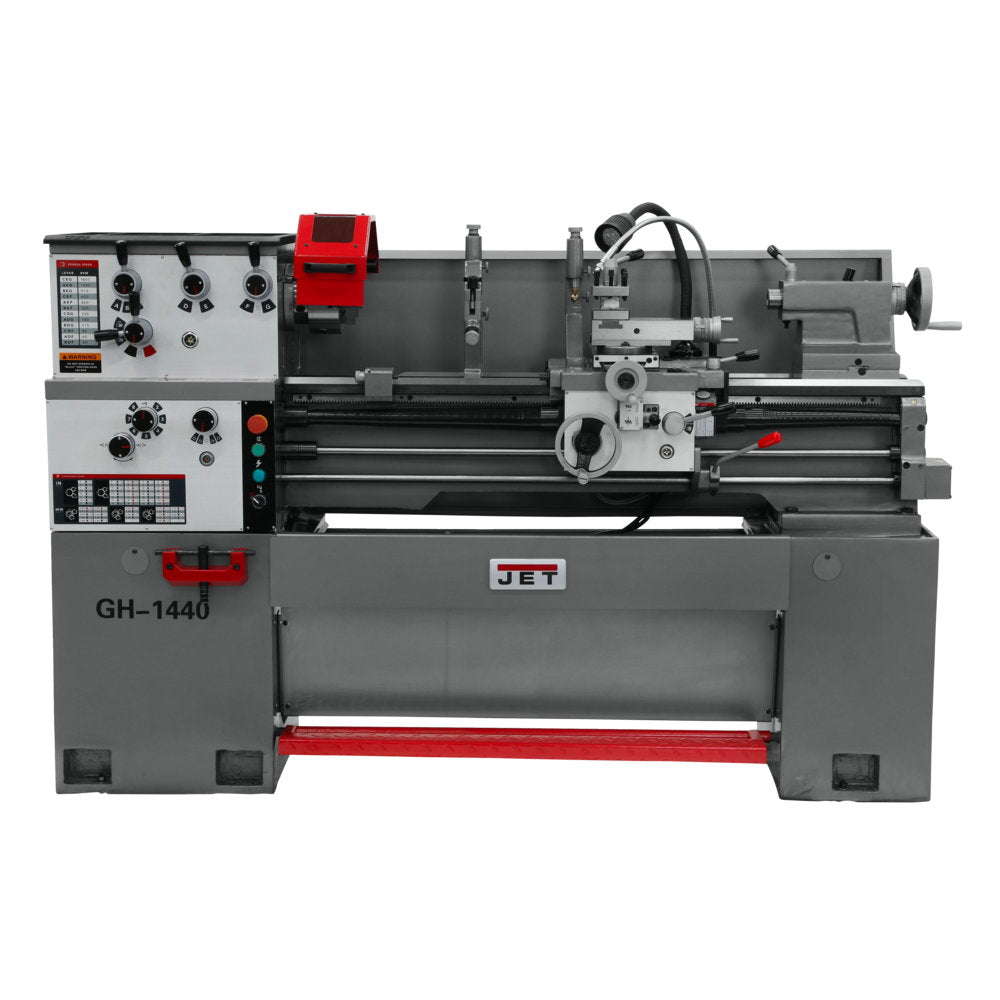

Jet JT9-323413 GH-1440-3 Lathe with Newall DP700 DRO & Taper Attachment


Price:
Sale price$24,159.00

Description

Jet 323413 Description

The new JET GH-1440-1 and GH-1440-3 Geared Head engine lathes weigh over one ton and come equipped with precision induction hardened ground bed-ways, spindle roller bearings, and high-quality steel hardened gears in the headstock for the ultimate working durability. The enclosed gearbox design, standard coolant system, and lead screw cover provide a smooth and quiet operation while maintaining peak performance. The GH-1440-1 and GH-1440-3 also includes a patented electronic chuck key docking station that prevents startup without the chuck key when safely docked.

Jet 323413 Features

  • V-way bed design is induction hardened and ground
  • Splined, not keyed, shafts are utilized
  • D1-4 spindle is precision ground for accuracy and supported by high quality tapered roller bearings
  • Independent leadscrew and feed rod
  • Adjustable gibs are incorporated in the carriage and slideways
  • Safety on/off switch
  • Emergency Stop within easy reach of the Operator
  • Electronic Chuck Key Docking Station
  • Chuck Guard
  • Foot Brake

Jet 323413 Specifications

Number of Longitudinal and Cross Feed Rates 40
Number of Metric Threads 23
Max Tool Size (In.) 5/8 x 5/8
Overall Dimensions (L x W x H) (In.) 74-4/5 x 28 x 46
Swing Through Gap (In.) 20
Weight (Lbs.) 2336
Width of Bed (In.) 10-1/5
Motor (HP) 3HP, 230/460V, 3PH
Swing Over Bed (In.) 14
Cross Slide Travel (In.) 6-3/8
Taper in Tailstock Spindle MT-3
Compound Slide Travel (In.) 3-1/2
Range of Metric Threads 0.45-7.5
Taper Attachment Yes
Carriage Travel (In.) 37-1/2
Steady Rest Capacity (In.) 3-1/2
Number of Inch Threads 40
Range of Spindle Speeds (RPM) 40-1800
Spindle Mount D1-4
Follow Rest Capacity (In.) 2-5/8
Spindle Bore (In.) 1-1/2
Range of Inch Threads (TPI) 4-112
Digital Readout Newall DP700
Spindle Taper with Sleeve MT-5
Swing Over Cross Slide (In.) 8-1/5
Number of Spindle Speeds 12
Tailstock Spindle Travel (In.) 4-3/4
Length of Gap (In.) 9-3/8
Range of Cross Feeds (IPR) 0.0004 - 0.0103
Distance Between Centers (In.) 40
Range of Longitudinal Feeds (IPR) 0.0012 - 0.0294
Prewired (V.) 230V
