Jet JT9-323448 GH-1440B Geared Head Bench Lathe with Newall DP500 & Taper


Price:
Sale price$17,599.00

Description

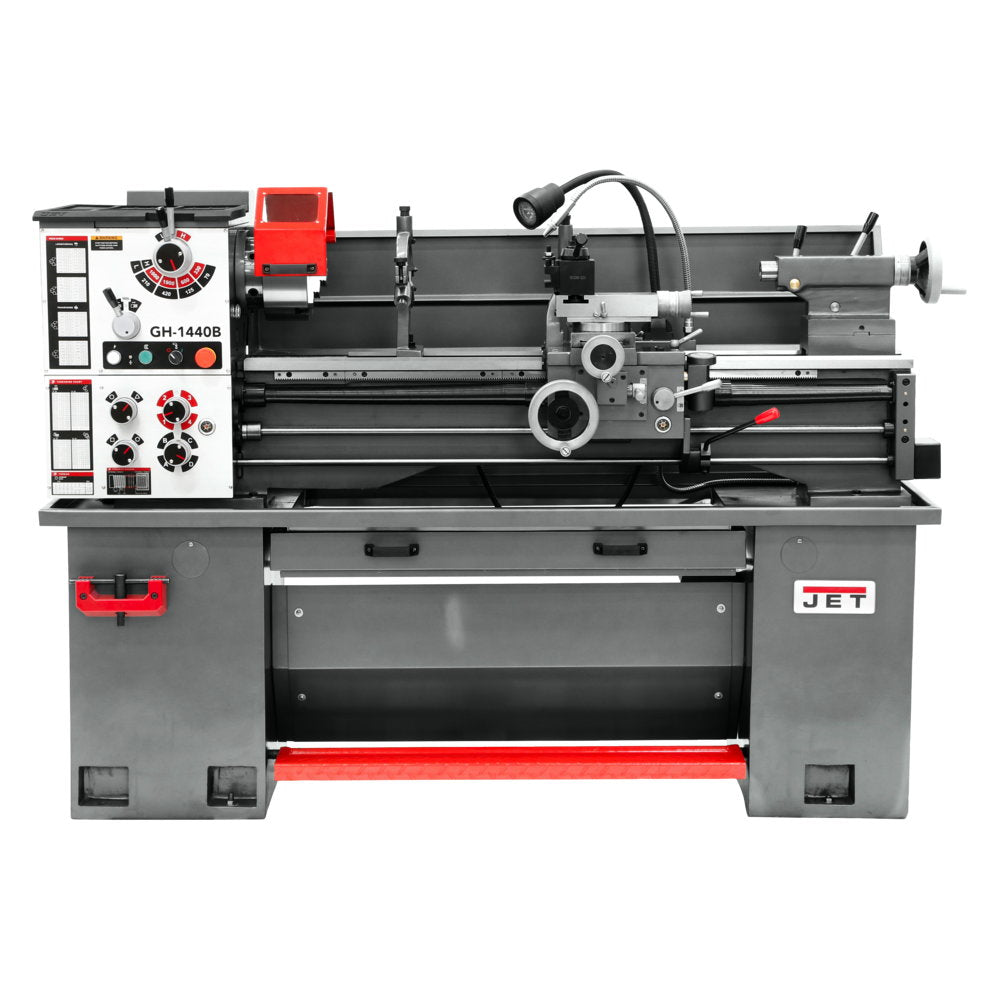

This new JET GH-1440B Geared Head Bench Lathe is engineered for smooth, quiet operation and user versatility. Positioned on a heavy-duty stand with a newly added built-in footbrake, the GH-1440B includes precision induction hardened ground bed-ways, spindle roller bearings, and high-quality steel hardened gears in the headstock for ultimate working durability. The GH1440B also includes a patented electronic chuck key docking station that prevents startup without the chuck key when safely docked.

FEATURES:
• Precision spindle roller bearings
• High quality steel hardened gears in headstock
• Lead screw cover
• Cast iron Stand
• Foot Brake comes standard
• Emergency Stop within easy reach of the Operator
• Emergency Stop within easy reach of the Operator
• Chuck Guard
• Electronic Chuck Key Docking Station, provides Operator safety as the Lathe will not turn without the chuck key being docked
• Mounted on Cast Iron stand with foot pedal, coolant, chuck key docking station ready to use

SPECIFICATIONS:
• Number of Longitudinal and Cross Feed Rates: 32/32
• Number of Metric Threads: 26
• Max Tool Size (In.): 4/5 x 4/5
• Overall Dimensions (L x W x H) (In.): 76-13/32 x 29-29/32 x 59-13/16
• Swing Through Gap (In.): 20
• Weight (Lbs.): 1753
• Width of Bed (In.): 7.32
• Motor (HP): 2 HP, 230V, Single Phase
• Swing Over Bed (In.): 14
• Cross Slide Travel (In.): 7
• Taper in Tailstock Spindle: MT4
• Compound Slide Travel (In.): 3-1/2
• Range of Metric Threads: 0.4-7
• Taper Attachment: Yes
• Carriage Travel (In.): 37-2/5
• Steady Rest Capacity (In.): 0.31-2.95
• Number of Inch Threads: 34
• Range of Spindle Speeds (RPM): 70-1900
• Spindle Mount: D1-5
• Follow Rest Capacity (In.): 0.31-2.16
• Spindle Bore (In.): 2
• Range of Inch Threads (TPI): 4-56
• Digital Readout: Newall DP500
• Spindle Taper with Sleeve: MT6
• Swing Over Cross Slide (In.): 8
• Number of Spindel Speeds: 8
• Tailstock Spindle Travel (In.): 4
• Length of Gap (In.): 8
• Range of Cross Feeds (IPR): 0.007-0.0187
• Distance Between Centers (In.): 36-7/8
• Range of Longitudinal Feeds (IPR): 0.002-0.0548
• Prewired (V.): 230V
