Description
Jet 331440 Description

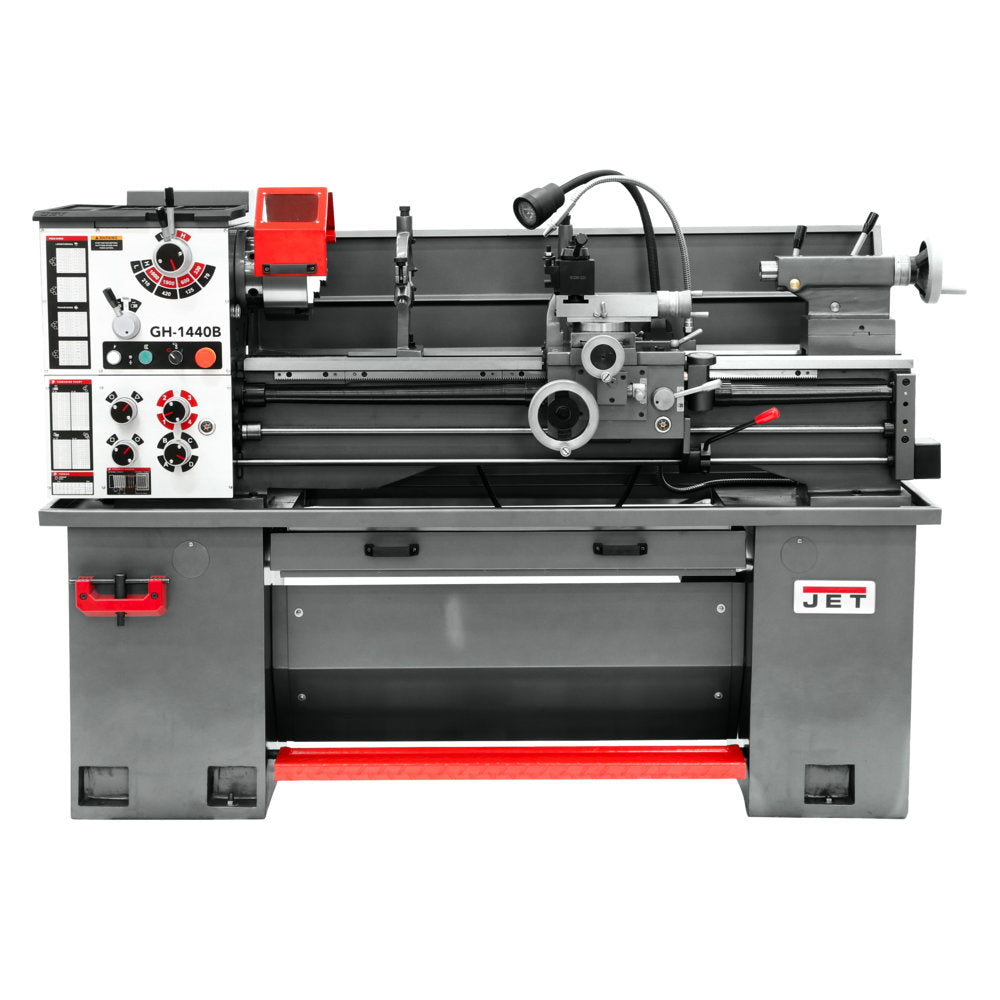

This new JET GH-1440B Geared Head Bench Lathe is engineered for smooth, quiet operation and user versatility. Positioned on a heavy-duty stand with a newly added built-in footbrake, the GH-1440B includes precision induction hardened ground bed-ways, spindle roller bearings, and high-quality steel hardened gears in the headstock for ultimate working durability. The GH1440B also includes a patented electronic chuck key docking station that prevents startup without the chuck key when safely docked.
Jet 331440 Features
- Precision spindle roller bearings
- High quality steel hardened gears in headstock
- Lead screw cover
- Cast iron Stand
- Foot Brake comes standard
- Emergency Stop within easy reach of the Operator
- Emergency Stop within easy reach of the Operator
- Chuck Guard
- Electronic Chuck Key Docking Station, provides Operator safety as the Lathe will not turn without the chuck key being docked
- Mounted on Cast Iron stand with foot pedal, coolant, chuck key docking station ready to use
Jet 331440 Specifications
Number of Longitudinal and Cross Feed Rates | 32/32 |
Number of Metric Threads | 26 |
Max Tool Size (In.) | 4/5 x 4/5 |
Overall Dimensions (L x W x H) (In.) | 76-13/32 x 29-29/32 x 59-13/16 |
Swing Through Gap (In.) | 20 |
Weight (Lbs.) | 1753 |
Width of Bed (In.) | 7.32 |
Motor (HP) | 2 HP, 230V, Single Phase |
Swing Over Bed (In.) | 14 |
Cross Slide Travel (In.) | 7 |
Taper in Tailstock Spindle | MT4 |
Compound Slide Travel (In.) | 3-1/2 |
Range of Metric Threads | 0.4-7 |
Carriage Travel (In.) | 37-2/5 |
Steady Rest Capacity (In.) | 0.31-2.95 |
Number of Inch Threads | 34 |
Range of Spindle Speeds (RPM) | 70-1900 |
Spindle Mount | D1-5 |
Follow Rest Capacity (In.) | 0.31-2.16 |
Spindle Bore (In.) | 2 |
Range of Inch Threads (TPI) | 4-56 |
Spindle Taper with Sleeve | MT6 |
Swing Over Cross Slide (In.) | 8 |
Number of Spindle Speeds | 8 |
Tailstock Spindle Travel (In.) | 4 |
Length of Gap (In.) | 8 |
Range of Cross Feeds (IPR) | 0.007 -0.0187 |
Distance Between Centers (In.) | 36-7/8 |
Range of Longitudinal Feeds (IPR) | 0.002 -0.0548 |
Prewired (V.) | 230V |
