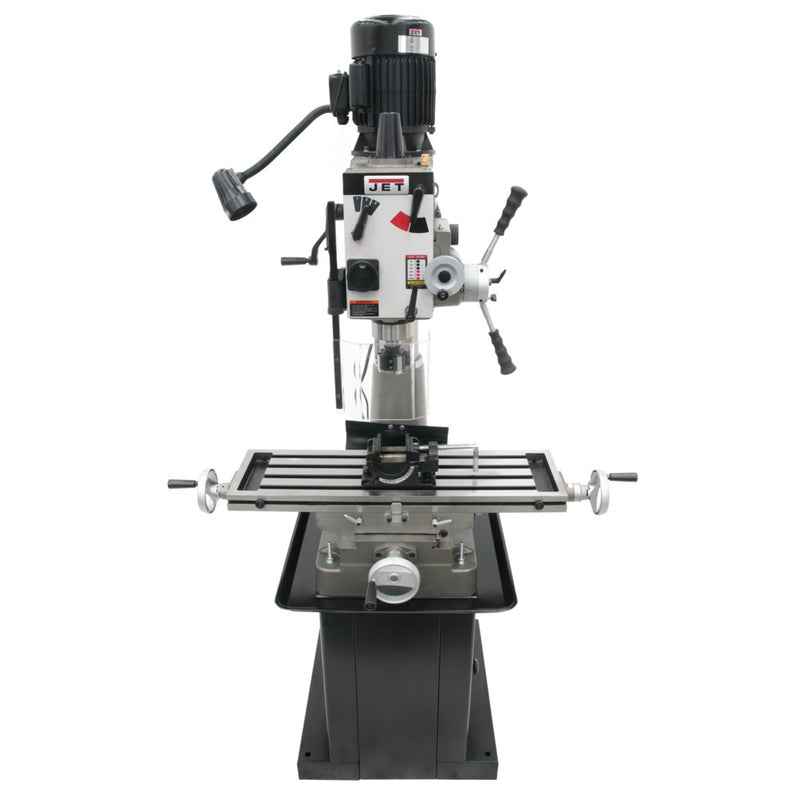

Jet 351143 JMD-40GHPF Geared Mill Drill, Downfeed, Newall DP700, X-Feed

Jet 351143 JMD-40GHPF Geared Mill Drill, Downfeed, Newall DP700, X-Feed

  • $6,569.10

Ships In 1-10 Business Days


FEATURES:
• Heavy-duty design allows for a variety of precision drilling applications
• Full power to the cutting tools through 6 speed geared head
• CSA/CUS:  Following strict guidelines and electrical requirements, this JET Mill Drill is CSA/CUS certified
• Spindle guard
• Work Lamp
• Calibrated fine down feed built in
• Easy to read internal depth gauge
• Head tilts left & right 90º
• Rapid spindle speed changes through quick-select gear shift levers
• Forward/reverse switch
• Power Downfeed standard
• Milling table allows for movement
• R8 spindle allows use of all mill tooling

SPECIFICATIONS:
• Table Size (L x W) (In.) (EN): 8-1/4 x 28-3/4
• Number of Spindle Speeds (EN): 6
• Spindle Travel (In.) (EN): 5
• Spindle Taper (In. x TPI) (EN): R8
• Swing (In.) (EN): 21
• Weight (Lbs.) (EN): 655


Engineered for precision drilling, the heavy-duty JMD-40GHPF Round Column Geared Head Mill Drill with power downfeed is loaded with intuitive features for maximum accuracy.
