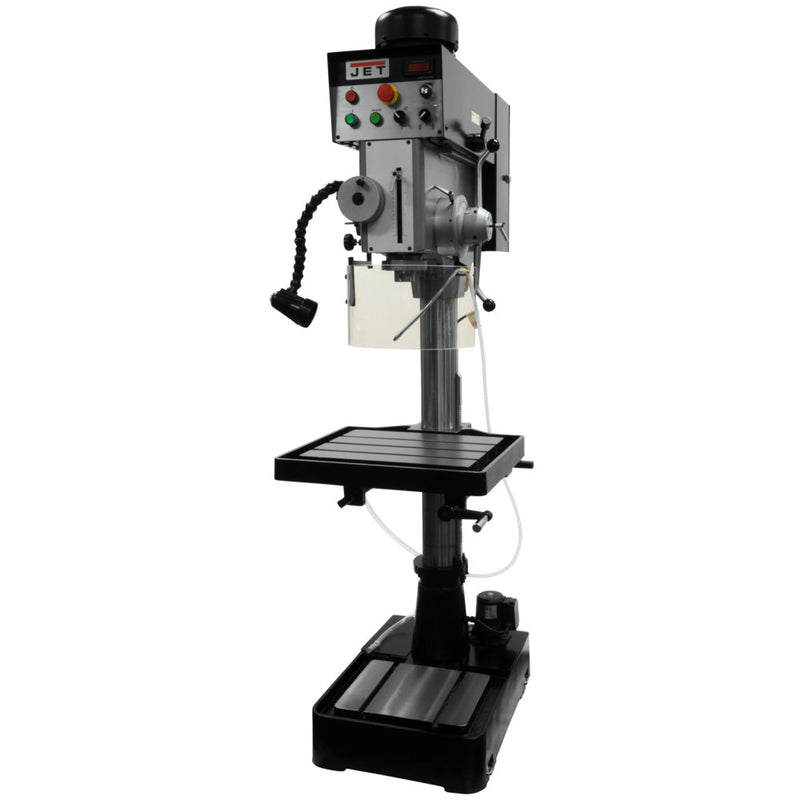

Jet JT9-354245 JDP20EVST-230-PDF 20" EVS Drill Press, Powerfeed, 230V


Price:
Sale price$7,859.00

Description

Jet 354245 Description

Accuracy, stability and versatility are the benchmark features of the JET 20" Drill Presses. This high quality line of JET Drill Presses offer a greater range in spindle speeds than other machines of this class. JET backs their machines with the industry-leading Two Year Warranty.

Jet 354245 Features

  • Heavy-duty steel column for increased precision and rigidity
  • Heavy Duty casted head for more accuracy and rigidity
  • Large Precision Ground T-slot Production Table for easy set ups
  • Latest AC Inverter Variable Speed Technology
  • CSA Coolant System
  • CSA/CUS: Following strict guidelines and electrical requirements, these JET Drills are CSA/CUS certified
  • LED Machine Lamp
  • Spindle Safety Guard
  • Spindle is supported by high quality ball bearings
  • Variable Spindle Speeds from 65 - 2,000 RPM's

Jet 354245 Specifications

Table Travel (In.) 20
Table Size (L x W) (In.) 22x18-3/4
Column Diameter (In.) 4-1/2
Spindle Distance to Table (Max.) (In.) 25.5 (648mm)
Base Dimensions (In.) 27 x 19
Drilling Capacity Mild Steel (In.) 2
Spindle Travel (In.) 6
Distance Column to Spindle (In.) 10-7/16
Drills to Center of Circle (in) 20
Work Table Weight Capacity (Lbs.) 154
Range of Spindle Speeds (RPM) 60 - 2,000(60-540/225-2000)
Spindle Distance to Base (In.) 44.68 (1135mm)
T-Slot Centers (In.) 7-7/16
Tapping Capacity Cast Iron (In.) 1
Motor (HP) 2 HP, 230V 3ph
Base Slots Number & Size (In.) 2 & 5/8
Drilling Capacity Cast Iron (In.) 2 5/32
Tapping Capacity Mild Steel (In.) 1
Number of Spindle Speeds Variable
Overall Dimensions (L x W x H) (In.) 42.5 x 27.16 x 78.74
Spindle Taper (In. x TPI) MT-4
Style (Type) SV_1375591258801
T-Slots Number and Size (In.) 3 & 5/8
Inverter Type B Type 230V 1/3Ph
Prewired (V.) 230V
