Description

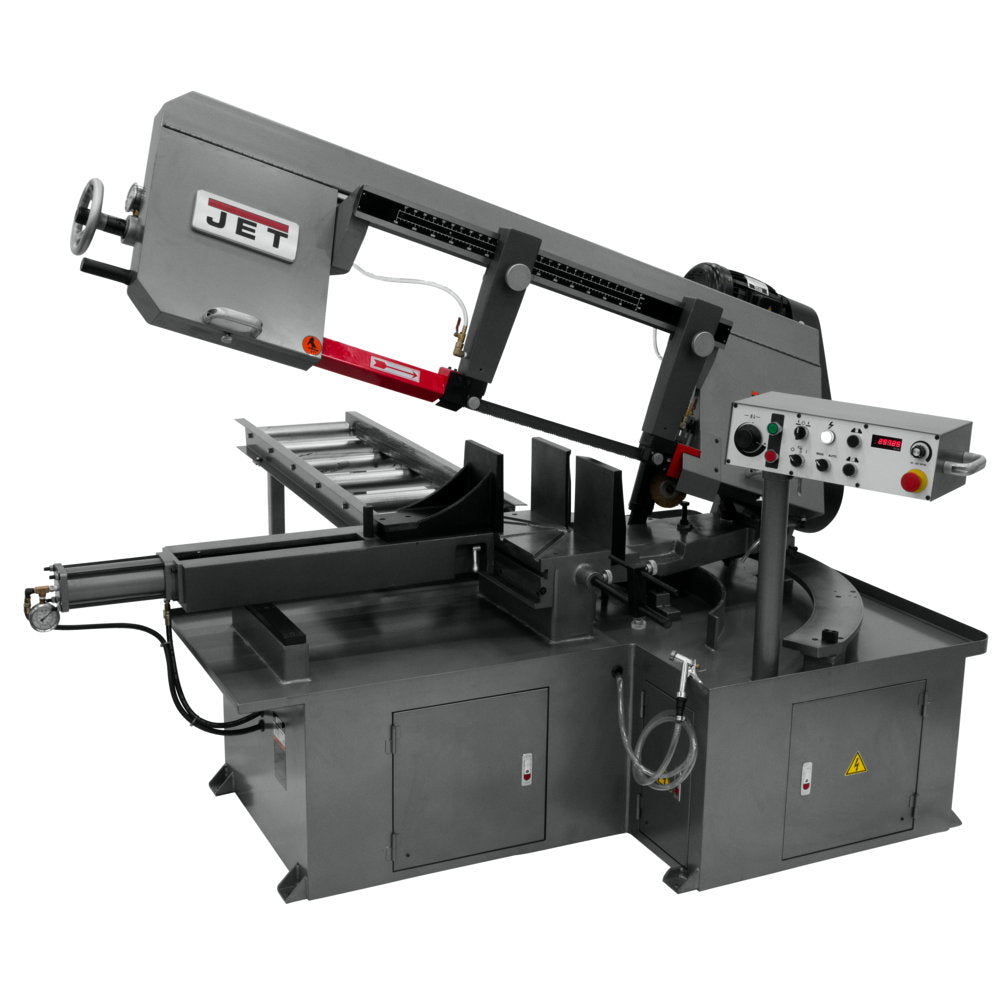

JET Dual Mitering Horizontal bandsaws unique design head dual miters both left and right for quick angle cuts. The Frequency Inverter, unique to this saw, allows this EVS saw a full range of blade speeds.
FEATURES:
• Heavy duty construction reduces vibration and deflection
• Built in, self propelled blade brush prevents chip build up in blade guides
• Blade tension gauge helps to ensure the blade is in the correct cutting position
• Magnetic starter for low voltage and lost phase protection
• Automatic blade breakage sensor detects accidental breakage and interrupts the power
• Power switch with safety key prevents accidental start up
• CSA/CUS: Following strict guidelines and electrical requirements, this JET saw is CSA/CUS certifield
• Blade is fully guarded for Operator safety
• Automatic shut off switch stops the sawing process
• Equpped with Frequency Inverter which allows this EVS saw full range of blade speeds
SPECIFICATIONS:
• Bed Height (In.): 27.75
• Blade Size (In.): 1-1/4 x 0.043 x 172
• Blade Speed (SFPM): Variable 50 - 297
• Blade Wheel Diameter (In.): 16
• Cutting Capacity (W x D) (In.): 12" x 32"
• Drive: EVS
• Motor (HP): 3 HP
• Rectangle at 45 Degrees (In.): 8 x 16
• Rectangle at 90 Degrees (In.): 12 x 23-1/2
• Round at 45 Degrees (In.): 13
• Round at 90 Degrees (In.): 13
• Weight (Lbs.): 2090
• Overall Dimensions (L x W x H) (In.): 88 x 55 x 51
• Prewired Voltage (V.): 230V, 3Ph
• Rectangle at 60 Degrees (In.): 7 x 12
• Round at 60 Degrees (In.): 11
