Description

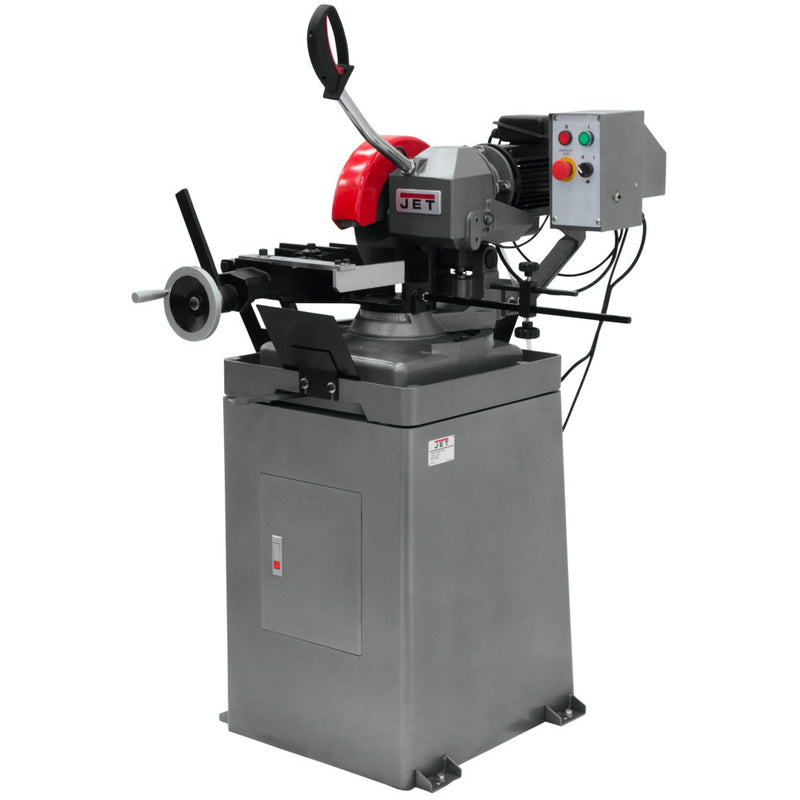

Jet 414226 Description
JET Coldsaws deliver clean, burr-free cuts and offer machine shop and fabrication professionals a list of features and standard design characteristics that you’ve come to expect from JET. All backed by the industry leading full service Two Year Warranty
Jet 414226 Features
- Now available in Single Phase 115V
- Two-piece cast iron blade guard system permits quick and easy blade changes without removing the guards
- Quick clamping cam-action vise with adjustable gib and material support bar for burr-free cutting operations
- Hardened and ground direct drive worm shaft and bronze worm wheel transmits maximum torque to the saw blade
- Blade drive reduction gearbox operates in an oil bath for increaded durability
- Heavy-Duty cast iron frame base with easy access storage provides a stable cuting platform
- 1-1/3 Gallon coolant reservoir and pump with flow control system extends blade life
- Quick tension and release mitering capabilities with stops at 45° right, 45° left
- Fully adjustable material depth stop for sawing repeatability and increased production
Jet 414226 Specifications
| Tubing Rectangle at 45 Degrees (In.) | 2-1/5 x 2 |
| Blade Speeds (RPM) | 54, 108 |
| Solid Round at 45 Degrees (In.) | 3-2/7 |
| Overall Dimensions (L x W xH) (In.) | 40 x 39 x 72 |
| Weight (Lbs.) | 360 |
| Solid Square at 45 Degrees (In.) | 2-1/5 x 2-1/5 |
| Style (Type) | SV_1375591258785 |
| Blade Size (Mm.) | 275 x 32 x 2 |
| Maximum Vise Opening (In.) | 4 |
| Solid Rectangle at 90 Degrees (In.) | 3-1/9 x 2 |
| Tubing Round at 45 Degrees (In.) | 3-2/7 |
| Tubing Round at 90 Degrees (In.) | 3-2/7 |
| Solid Square at 90 Degrees (In.) | 2-1/2 x 2-1/2 |
| Tubing Rectangle at 90 Degrees (In.) | 3-1/9 x 2 |
| Solid Round at 90 Degrees (In.) | 3-2/7 |
| Tubing Square at 45 Degrees (In.) | 2-1/5 x 2-1/5 |
| Solid Rectangle at 45 Degrees (In.) | 2-1/5 x 2 |
| Tubing Square at 90 Degrees (In.) | 2-1/2 x 2-1/2 |
| Motor (HP) | 1-1/2 HP, 230V, 3Ph |
