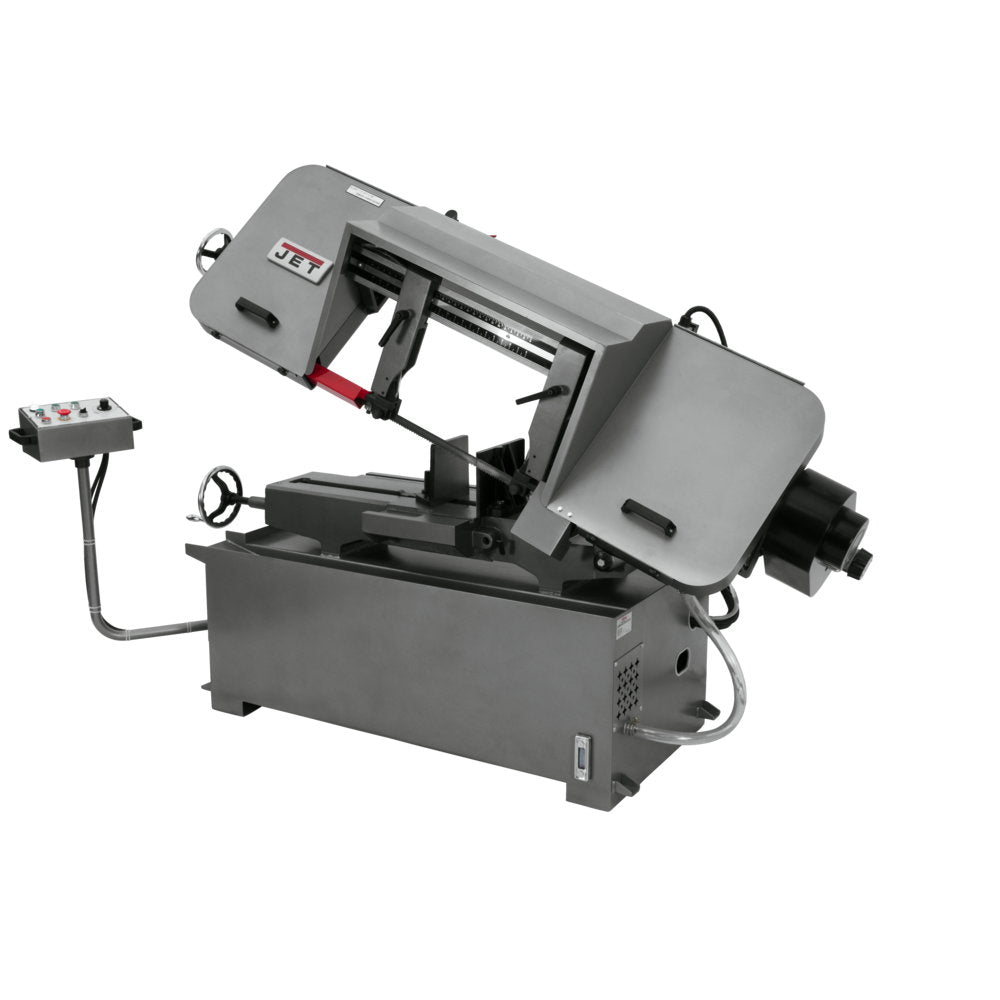

Description
FEATURES:
• Swing away control panel houses major saw controls
• Adjustable blade guide with six contact point system that utilizes cam follower bearings mounted on eccentric shafts on both sides of the blades
• Downfeed system is controlled by a dual system of counterbalance springs working with a hydraulic cylinder
• Saw head raises hydraulically after each cut
• Variable speed drive system allows the operator to easily fine tune the blade speed
• Heavy-Duty transmission utilizes hardened and ground gears operating in an oil bath
• Cast Iron blade wheels
• Patented 3-Jaw vise with rapid action moveable jaw for faster set up
• Coolant system
• Adjustable material stop
SPECIFICATIONS:
• Round at 90 Degrees (In.): 12
• Blade Size (In.): 1 x .035 x 156
• Drive: Variable Speed
• Blade Speeds (SFPM): 82 - 262
• Round at 45 Degrees (In.): 12
• Rectangle at 90 Degrees (In.): 12 x 20
• Blade Wheel Diameter (In.): 17
• Bed Height (In.): 26-1/4
• Cutting Capacity (W x D) (In.): 12 x 20
• Rectangle at 45 Degrees (In.): 12 x 12
• Weight (Lbs.): 1,210
• Vise Swivels (Deg.): 45°
• Blade Length (In.): 156
• Motor (HP): 3 HP, 230/460V, 3Ph
• Overall(more...)
