Description

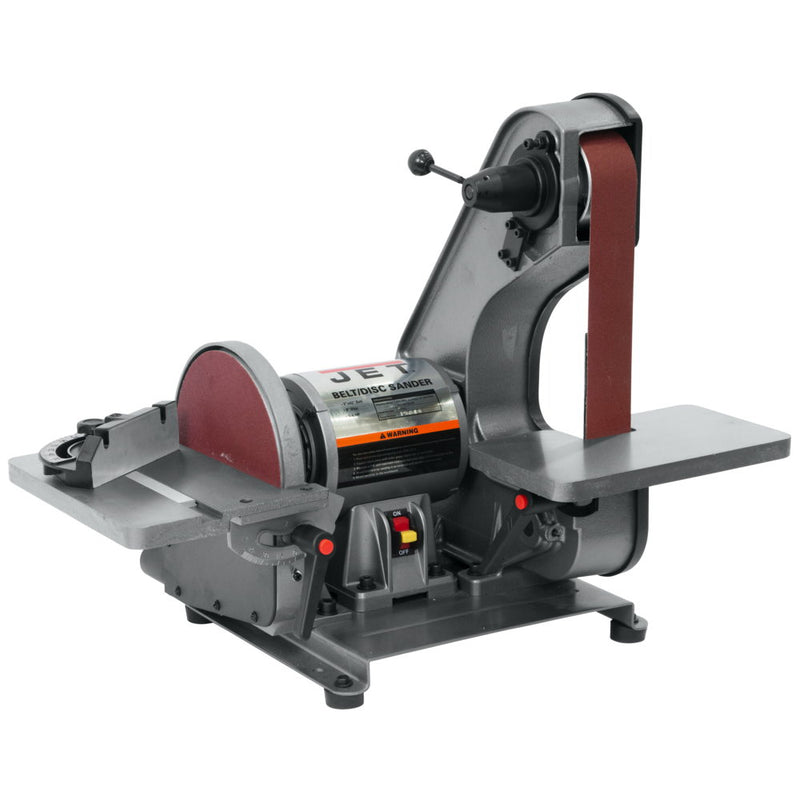

Another JET combination Bench Belt and Disc Sander designed to deliver the superior finish. The design of this machine permits sanding, grinding and finishing of outside curves or odd-shaped pieces. Heavy-duty base, cast construction and cast iron tilting table means you are getting the very best JET has to offer.
FEATURES:
• Abrasive belt unit does the work of a jig-saw, copying saw or hand file while removing material and finishing at the same time, allows the operator to get into small openings plus handle odd shapes and angles
• Deluxe miter gauge that turns and locks for common angles, 45° both left and right
• Allows for sanding, grinding or finishing of outside, curves or odd shaped work pieces on the belt
• Hinged idler wheel cover
• Cast Iron construction
• Heavy-duty steel base and rubber feet
• Adjustable dust deflector and dust chute
SPECIFICATIONS:
• Style (Type): Belt & Disc
• Weight (Lbs.): 60
• Belt Speed (SFPM): 3,100
• Disc Diameter (In.): 8
• Table Slots (In.): 5/8
• Disc Speed (RPM): 3,450
• Belt Table Size (In.): 10 x 6
• Disc Table Size (L x W) (In.): 10-3/4 x 7-1/2
• Belt Size (W x L) (In.): 2 x 42
• Motor (HP): 3/4 HP, 115V, 1Ph
• Overall Dimensions (L x W x H) (In.): 20-1/2 x 22-3/4 x 20
• Disc Table Tilt (Deg.): 45° out
• Belt Table Tilt (Deg.): 45° out
FEATURES:
• Abrasive belt unit does the work of a jig-saw, copying saw or hand file while removing material and finishing at the same time, allows the operator to get into small openings plus handle odd shapes and angles
• Deluxe miter gauge that turns and locks for common angles, 45° both left and right
• Allows for sanding, grinding or finishing of outside, curves or odd shaped work pieces on the belt
• Hinged idler wheel cover
• Cast Iron construction
• Heavy-duty steel base and rubber feet
• Adjustable dust deflector and dust chute
SPECIFICATIONS:
• Style (Type): Belt & Disc
• Weight (Lbs.): 60
• Belt Speed (SFPM): 3,100
• Disc Diameter (In.): 8
• Table Slots (In.): 5/8
• Disc Speed (RPM): 3,450
• Belt Table Size (In.): 10 x 6
• Disc Table Size (L x W) (In.): 10-3/4 x 7-1/2
• Belt Size (W x L) (In.): 2 x 42
• Motor (HP): 3/4 HP, 115V, 1Ph
• Overall Dimensions (L x W x H) (In.): 20-1/2 x 22-3/4 x 20
• Disc Table Tilt (Deg.): 45° out
• Belt Table Tilt (Deg.): 45° out
