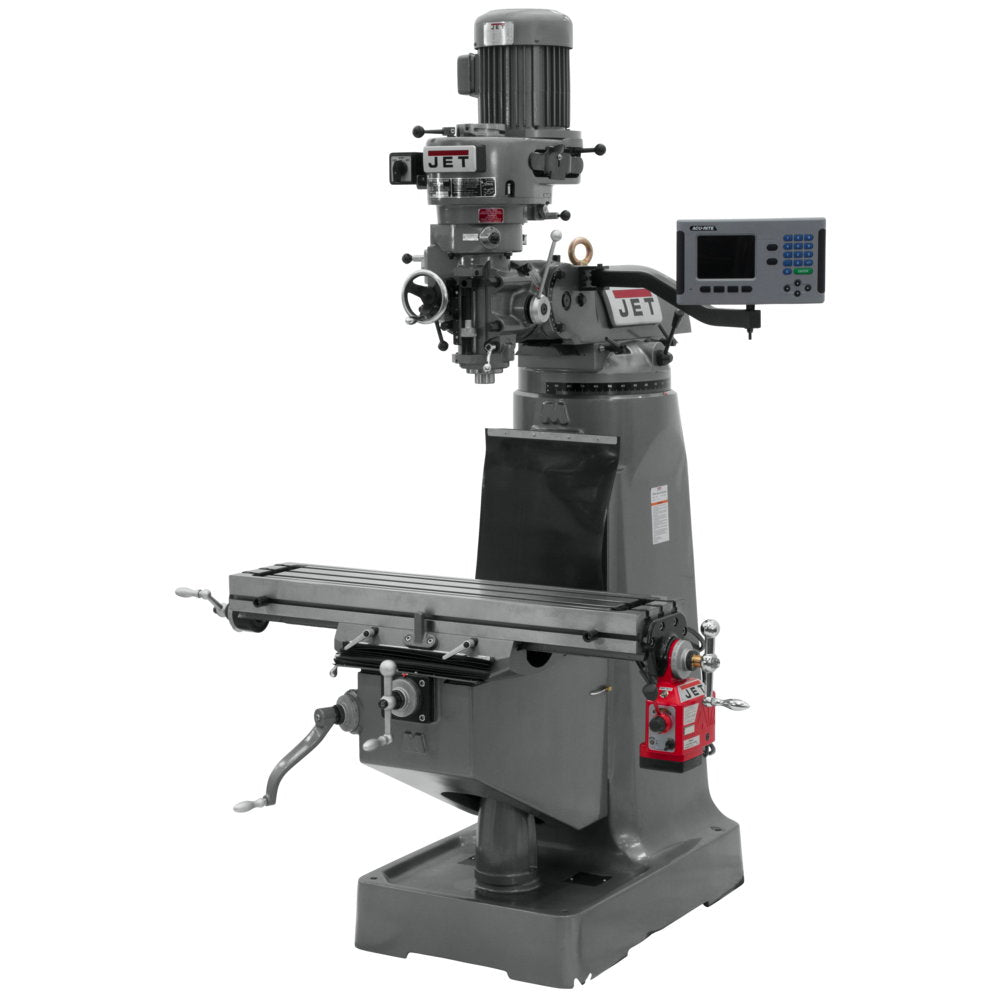

Jet 690072 Description
Three-stage power down feed with auto stop, high precision Class 7 spindle bearings and the rugged stability of Meehanite® castings ensures you get everything you need from the JTM-1 and 2 models. The internally cooled spindle head prevents seizing, and JET precision engineering ensures superior results with all the features you've come to expect, all backed by the industry-leading JET Two Year Warranty
Jet 690072 Features
- Meehanite Castings
- Precision bored and honed milling head
- Large diameter quill is chromed
- High precision Class 7 spindle bearings
- Spindle head is internally cooled
- Heavy duty splined motor drive
- One piece quill pinion and shaft
- Three stage power downfeed with automatic stop
- Heavy duty spindle brake
- Precision hardened and ground ways
Jet 690072 Specifications
Spindle Travel (In.) | 5 |
Table Cross Travel (In.) | 12-1/2 |
T-Slot Centers (In.) | 2-1/2 |
Distance Spindle to Column (Min.) (In.) | 4-1/2 |
Quill Down Feed Rates (IPR) | .0015 - .003 - .006 |
Work Table Weight Capacity (Lbs.) | 550 |
Quill Diameter (In.) | 3-3/8 |
Collet Capacity | 1/8 - 7/8 |
Overall Dimensions (L x W x H) (In.) | 57 x 64 x 82 |
Number of Spindle Speeds | 8 |
Range of Spindle Speeds (RPM) | 80 - 2,720 |
Head Movement (Deg.) | 90° R & L, 45° F & B |
Number of Axis | 3 (Quill) |
Weight (Lbs.) | 2,200 |
Motor (HP) | 2 HP, 115/230V, 1Ph |
Style (Type) | Step Pulley R8 |
Table Size (L x W) (In.) | 9 x 42 |
Distance Spindle to Column (Max.) (In.) | 19 |
T-Slots Number and Size (In.) | 3 and 5/8 |
