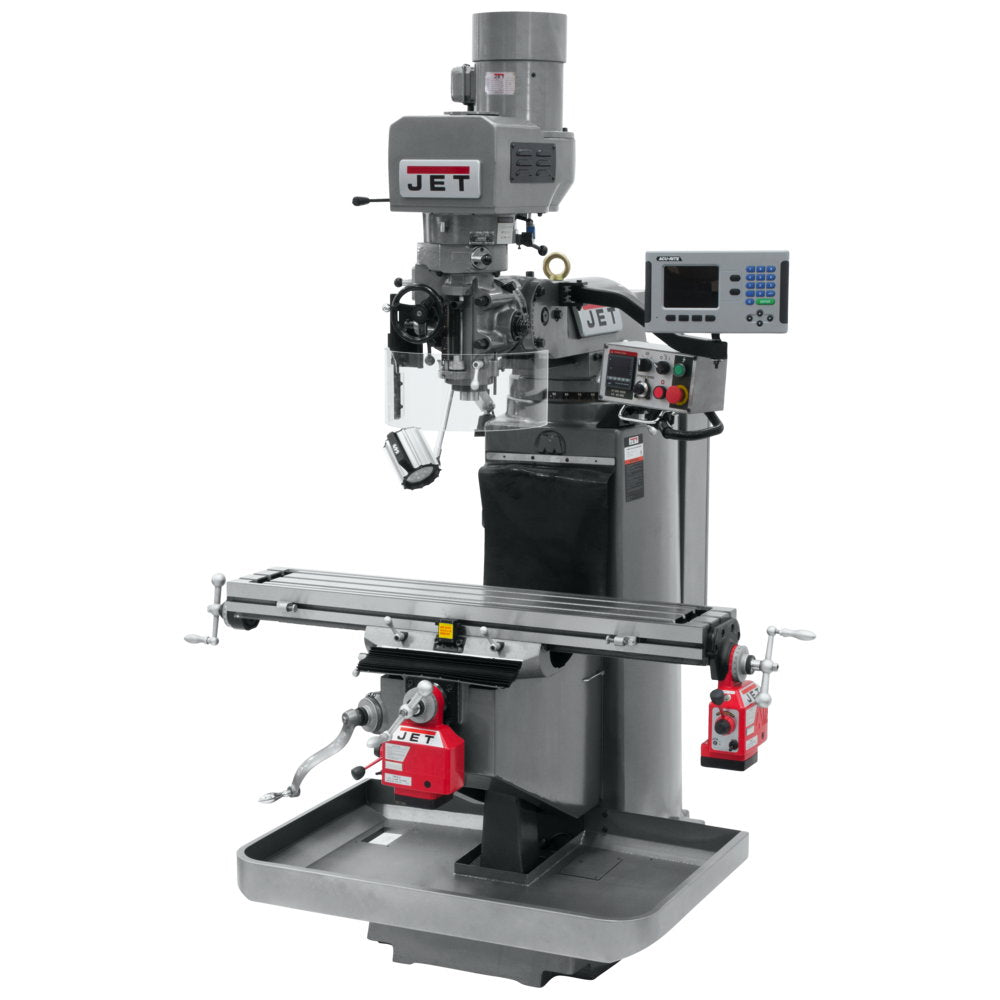

Jet 690532 JTM-949EVS Mill With 3-Axis Acu-Rite 200S DRO (Quill) With X and Y-Axis Powerfeeds

Jet 690532 JTM-949EVS Mill With 3-Axis Acu-Rite 200S DRO (Quill) With X and Y-Axis Powerfeeds

  • $16,349.00

Ships In 1-10 Business Days


FEATURES:
• New! JET designed Certified Meehanite® casting with enhanced ribbing ensures rigidity and tolerance retention
• Swing away control box houses an e-stop and puts all controls at the operators fingertips
• The innovative design of the machine base provides an easier solution to level the machine without raising it up off the floor
• Automatic oiler releases 3 to 6 cc/cy of lubrication every 30 minutes
• For added safety, the heavy-duty spindle break stops the spindle and interrupts the power, preventing accidental start-ups
• The electrical box has been relocated to the back of the mill and houses two 115V outlets for powered accessories
• CSA/CUS Certified
• Class 7 spindle bearings support the spindle for maximum rigidity in heavy cutting applications
• Spindle head is internally cooled extending bearing, belt and motor life
• Table and ways are hardened up to 54 HRC and precision ground for greater accuracy

SPECIFICATIONS:
• Spindle Travel (In.): 5
• Table Cross Travel (In.): 12-5/8
• T-Slot Centers (In.): 2-1/2
• Min. Distance Spindle to Column (Min.) (In.): 4-3/4
• Quill Down Feed Rates (IPR): .0015 - .003 - .006
• Work Table Weight Capacity (Lbs.): 720
• Quill Diameter (more...)
