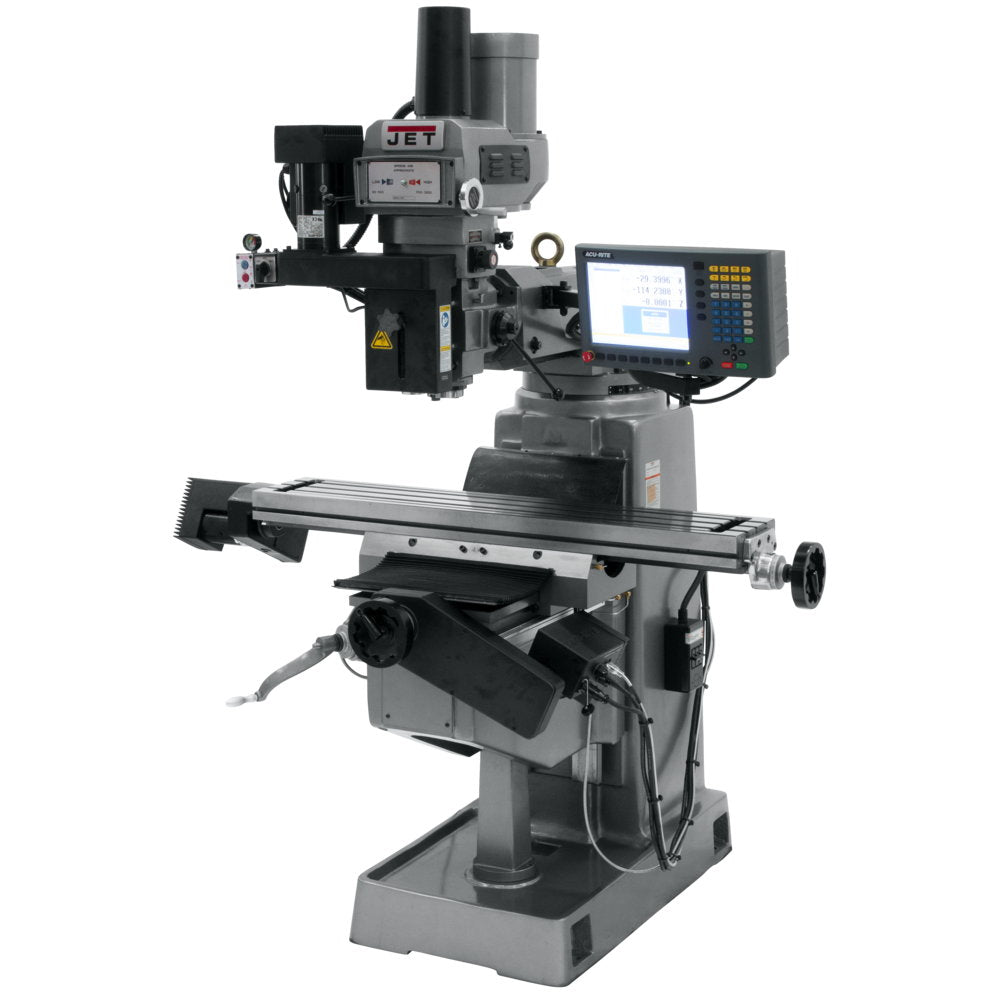

Description
FEATURES:
• Certified Meehanite® catings
• Class 7 bearings support the spindle for maximum ridgity in heavy cutting applications
• Precision bored and honed milling head
• Spindle head is internally cooled extending bearing, belt and motor life
• Quick spindle feed nut easily adjusts to different depths
• One-piece quill pinion and shaft
• Three-stage power downfeed with automatic stop
• Heavy-duty spindle brake
• Precision hardened and ground ways and table
SPECIFICATIONS:
• Quill Down Feed Rates (IPR): .0015 - .003 - .006
• Travel of Knee (In.): 15-3/4
• Head Movement (Deg.): 90° R & L, 45° F & B
• Motor (HP): 3HP, 230V, 3Ph
• Overall Dimensions (L x W x H) (In.): 67 x 64 x 86
• Spindle Travel (In.): 5
• Style (Type): CNC
• Spindle Taper (In. x TPI): R-8
• Work Table Weight Capacity (Lbs.): 720
• CNC Package: ACU-RITE MILLPWR® G2
• Table Longitudinal Travel (In.): 36
• Table Size (L x W) (In.): 9 x 49
• Weight (Lbs.): 2,420
• T-Slots Number and Size (In.): 3 and 5/8
• Table Cross Travel (In.): 12-5/8
• Number of Spindle Speeds: Variable
• T-Slot Centers (In.): 2-1/2
• Range of Spindle Speeds (RPM): 60 - 4,500
• Travel of Ram (In(more...)
