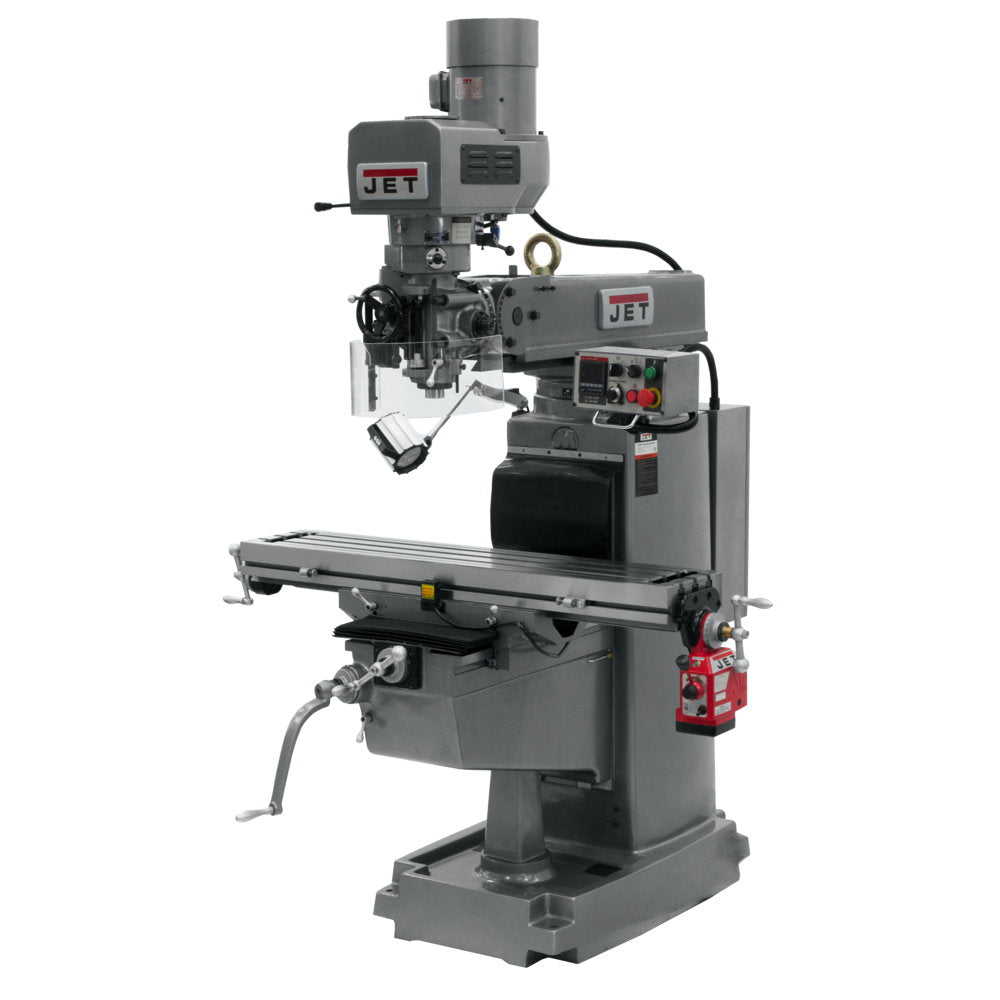

Jet 690601 JTM-1050EVS2/230 Mill With X-Axis Powerfeed

Sale price$18,999.00


Jet 690601 Description

Constructed using the Meehanite® casting process, the JTM-1050EVS2/230, 10" x 50" Electronic Variable Speed Milling Machine provides consistent and reliable operation. The newly designed column and base incorporates a rigid, robust design that is easily leveled without lifting the machine. JET Mills have features you've come to expect and are backed by the industry-leading JET Two Year Warranty

Jet 690601 Features

  • JET designed Certified Meehanite® casting with enhanced ribbing ensures rigidity and tolerance retention
  • Swing away control box houses an e-stop and puts all controls at the operators fingertips
  • The innovative design of the machine base provides an easier solution to level the machine without raising it up off the floor
  • Automatic oiler releases 3 to 6 cc/cy of lubrication at adjustable time intervals
  • For added safety, the heavy-duty spindle break stops the spindle and interrupts the power, preventing accidental start-ups
  • The electrical box has been relocated to the back of the mill and houses two 115V outlets for powered accessories
  • CSA/CUS Certified
  • Class 7 spindle bearings support the spindle for maximum rigidity in heavy cutting applications
  • Spindle head is internally cooled extending bearing, belt and motor life
  • Table and ways are hardened up to 54 HRC and precision ground for greater accuracy

Jet 690601 Specifications

• Spindle Travel (In.): 5
• Table Cross Travel (In.): 14-3/4
• T-Slot Centers (In.): 2-1/2
• Min. Distance Spindle to Column (Min.) (In.): 4-3/4
• Quill Down Feed Rates (IPR): .0015 - .003 - .006
• Work Table Weight Capacity (Lbs.): 840
• Quill Diameter (In.): 3-3/8
• Collet Capacity: 1/8 - 7/8
• Overall Dimensions (L x W x H) (In.): 66 x 63 x 87
• Number of Spindle Speeds: Variable
• Range of Spindle Speeds (RPM): 60 - 4,500
• Head Movement: (Deg.)
• Motor (HP): 3 HP, 230V, 3Ph
• Style (Type): EVS
• Table Size (L x W) (In.): 10 x 50
• Max. Distance Spindle to Column: 26-3/4
• T-Slots Number and Size: (In.)
• Powerfeed: X Axis
• Travel of Knee: (In.)
• Travel of Ram: (In.)
• Max Distance Spindle to Table: (In.)
• Table Longitudinal Travel: (In.)
• Table Longitudinal Travel With Powerfeed: (In.)
• Saddle Width: (In.)
• Column Width: (In.)
• Inverter Type: Delta, B
• Spindle Taper (In. x TPI): R-8
