Jet 690622 Description

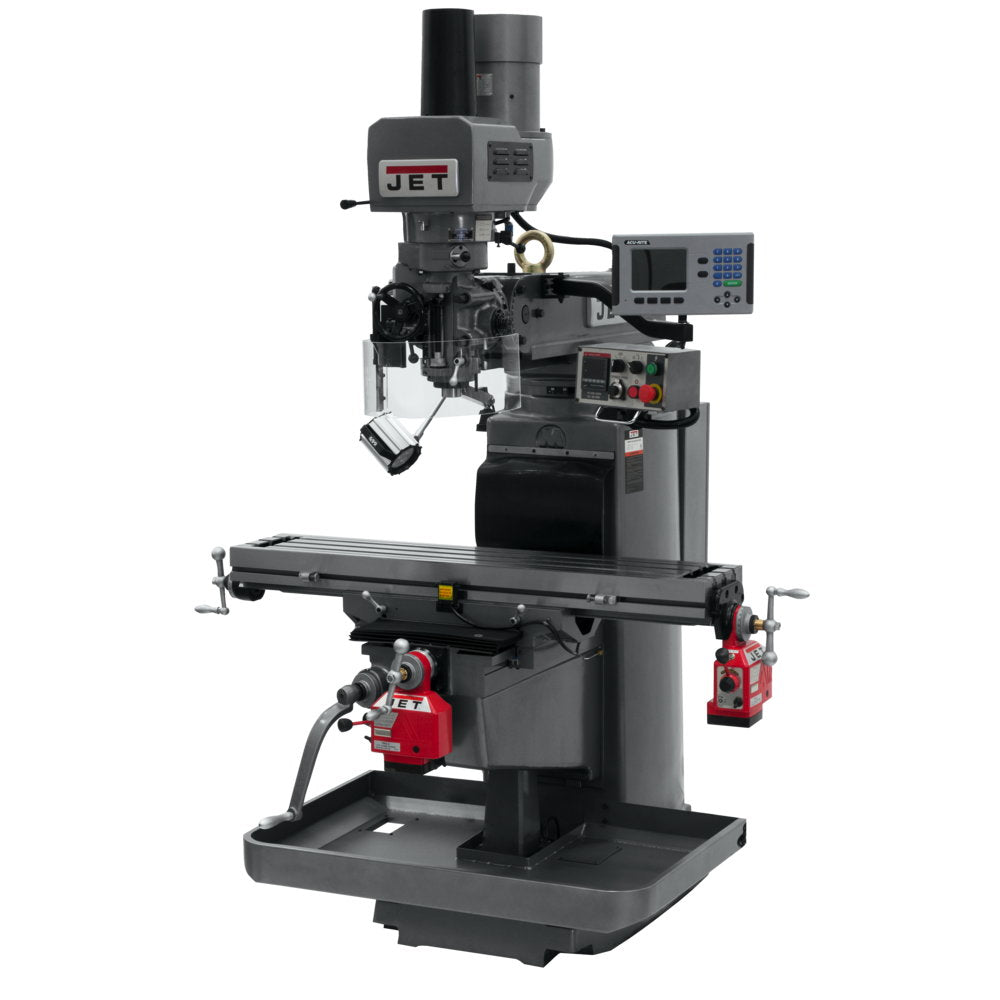

Constructed using the Meehanite® casting process, the JTM-1050EVS2/230, 10" x 50" Electronic Variable Speed Milling Machine provides consistent and reliable operation. The newly designed column and base incorporates a rigid, robust design that is easily leveled without lifting the machine. JET Mills have features you've come to expect and are backed by the industry-leading JET Two Year Warranty
Jet 690622 Features
- JET designed Certified Meehanite® casting with enhanced ribbing ensures rigidity and tolerance retention
- Swing away control box houses an e-stop and puts all controls at the operators fingertips
- The innovative design of the machine base provides an easier solution to level the machine without raising it up off the floor
- Automatic oiler releases 3 to 6 cc/cy of lubrication at adjustable time intervals
- For added safety, the heavy-duty spindle break stops the spindle and interrupts the power, preventing accidental start-ups
- The electrical box has been relocated to the back of the mill and houses two 115V outlets for powered accessories
- CSA/CUS Certified
- Class 7 spindle bearings support the spindle for maximum rigidity in heavy cutting applications
- Spindle head is internally cooled extending bearing, belt and motor life
- Table and ways are hardened up to 54 HRC and precision ground for greater accuracy
Jet 690622 Specifications
Spindle Travel (In.) | 5 |
Table Cross Travel (In.) | 14-3/4 |
T-Slot Centers (In.) | 2-1/2 |
Min. Distance Spindle to Column (Min.) (In.) | 4-3/4 |
Quill Down Feed Rates (IPR) | .0015 - .003 - .006 |
Work Table Weight Capacity (Lbs.) | 840 |
Quill Diameter (In.) | 3-3/8 |
Collet Capacity | 1/8 - 7/8 |
Overall Dimensions (L x W x H) (In.) | 66 x 63 x 87 |
Number of Spindle Speeds | Variable |
Range of Spindle Speeds (RPM) | 60 - 4,500 |
Head Movement | (Deg.) |
Motor (HP) | 3 HP, 230V, 3Ph |
Style (Type) | EVS |
Table Size (L x W) (In.) | 10 x 50 |
Max. Distance Spindle to Column | 26-3/4 |
T-Slots Number and Size | (In.) |
Digital Readout | ACU-RITE 200S |
Powerfeed | X and Y-Axis |
Power Draw Bar | Pneumatic |
Travel of Knee | (In.) |
Travel of Ram | (In.) |
Max Distance Spindle to Table | (In.) |
Table Longitudinal Travel | (In.) |
Table Longitudinal Travel With Powerfeed | (In.) |
Saddle Width | (In.) |
Column Width | (In.) |
Inverter Type | Delta, B |
Spindle Taper (In. x TPI) | R-8 |
