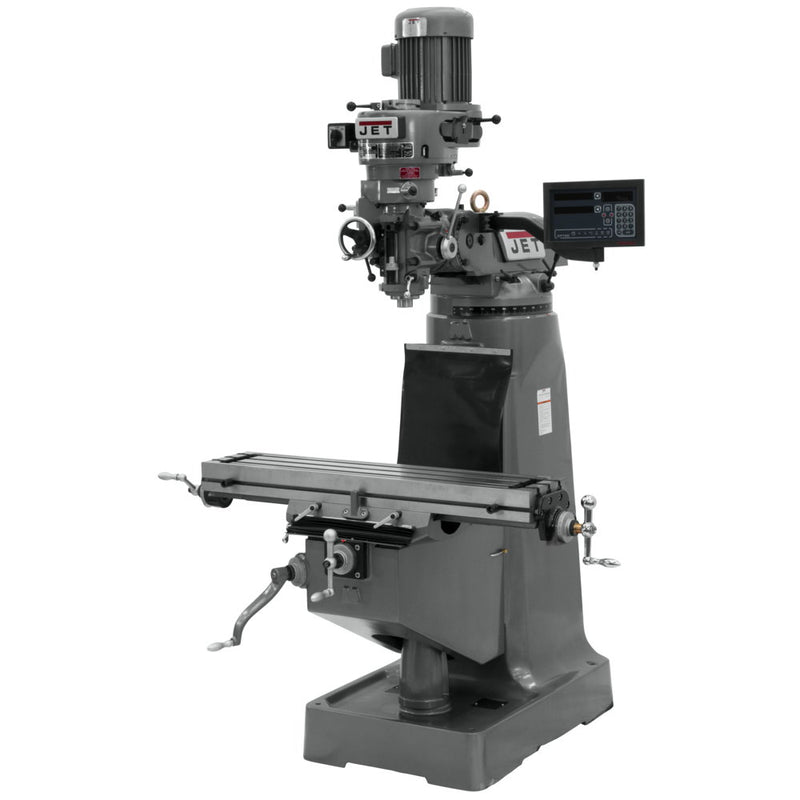

Jet 691190 JTM-1 Mill With 3-Axis Newall DP700 DRO (Quill)


Price:
Sale price$14,379.00

Description



FEATURES:
• Meehanite casting
• Precision bored and honed milling head
• Large diameter quill is chromed
• High precision Class 7 spindle bearings
• Spindle head is internally cooled
• Satin chrome finished dials
• Heavy duty splined motor drive
• One piece quill pinion and shaft
• Three stage power downfeed with automatic stop
• Heavy duty spindle brake

SPECIFICATIONS:
• Spindle Travel (In.): 5
• Table Cross Travel (In.): 12-1/2
• T-Slot Centers (In.): 2-1/2
• Distance Spindle to Column (Min.) (In.): 4-1/2
• Quill Down Feed Rates (IPR): .0015 - .003 - .006
• Work Table Weight Capacity (Lbs.): 550
• Quill Diameter (In.): 3-3/8
• Collet Capacity: 1/8 - 7/8
• Overall Dimensions (L x W x H) (In.): 57 x 64 x 82
• Number of Spindle Speeds: 16
• Range of Spindle Speeds (RPM): 80 - 5,440
• Head Movement (Deg.): 90° R & L, 45° F & B
• Number of Axis: 3 (Quill)
• Weight (Lbs.): 2,200
• Motor (HP): 2 HP, 230V, 3Ph
• Style (Type): Step Pulley R8
• Table Size (L x W) (In.): 9 x 42
• Distance Spindle to Column (Max.) (In.): 19
• T-Slots Number and Size (In.): 3 and 5/8

Three-stage power down feed with auto stop, high(more...)
