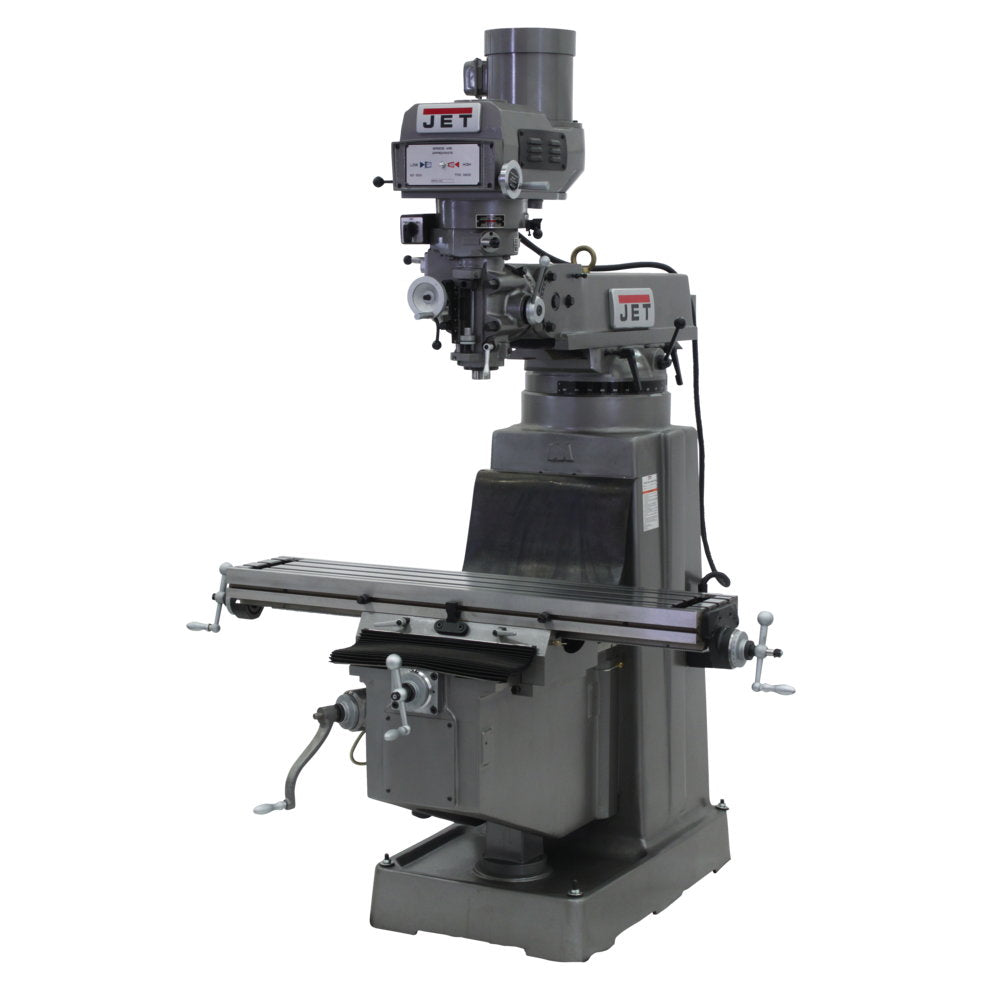

Jet 691205 JTM-1050 Mill With Newall DP700 DRO With X-Axis Powerfeed


Price:
Sale price$18,829.00

Description



FEATURES:
• Meehanite casting
• Hardened and ground table
• Chrome lead screws on X and Y axis
• Turcite B on X and Y axis
• Satin chrome finish on dials
• Precision bored and honed milling head
• Large diameter quill is chromed
• High precision Class 7 spindle bearing
• Spindle head is internally cooled
• No fuse breaker power connection

SPECIFICATIONS:
• Spindle Travel (In.): 5
• Table Cross Travel (In.): 15-1/4
• T-Slot Centers (In.): 2-1/2
• Distance Spindle to Column (Min.) (In.): 5-1/2
• Quill Down Feed Rates (IPR): .0015 - .003 - .006
• Work Table Weight Capacity (Lbs.): 720
• Quill Diameter (In.): 3-3/8
• Collet Capacity: 1/8 - 7/8
• Overall Dimensions (L x W x H) (In.): 96 x 78 x 88
• Number of Spindle Speeds: Variable
• Range of Spindle Speeds (RPM): 70 - 3,800
• Head Movement (Deg.): 90° R & L, 45° F & B
• Number of Axis: 2
• Weight (Lbs.): 2,900
• Motor (HP): 3 HP, 230/460V, 3Ph
• Style (Type): Variable Speed R8
• Table Size (L x W) (In.): 10 x 50
• Distance Spindle to Column (Max.) (In.): 26
• T-Slots Number and Size (In.): 3 and 5/8

The JET JTM-1050 features Meehanite® castings, a heavy-dut(more...)
