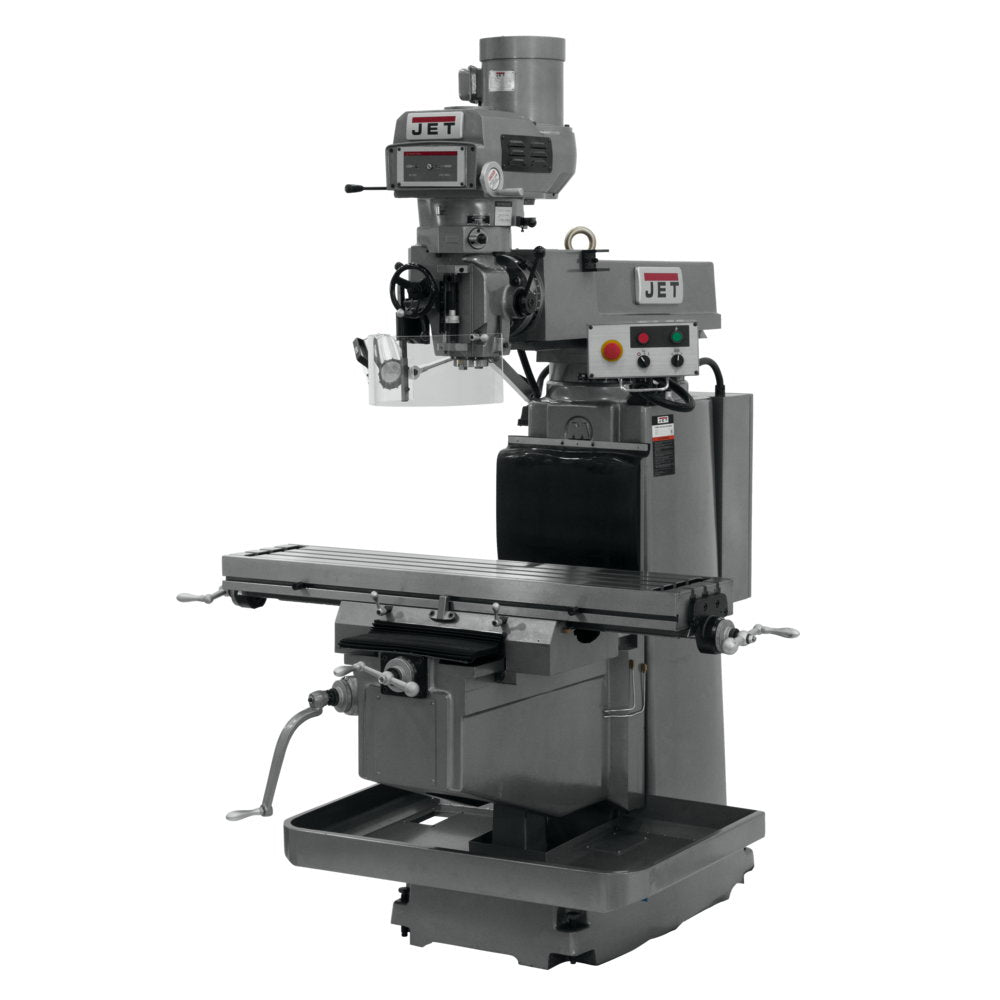

Jet 691940 JTM-1254VS with 2-Axis ACU-RITE G-2 MILLPOWER CNC


Price:
Sale price$44,759.00

Description

FEATURES:
• CNC Vertical Milling Machine Package JTM-1254VS
• Features of the ACU-RITE MILLPWR G2 CNC Package
• Certified Meehanite® Castings
• Precision bored and honed milling head
• High precision Class 7 spindle bearings
• Quick Spindle Feed Nut
• Features of the ACU-RITE MILLPWR G2 CONTROLLER
• USB + Ethernet compatible
• Simplified navigation that eliminates multiple menu screens
• 12.1" High resolution display (1024 x 768) with 3D graphics

SPECIFICATIONS:
• Quill Down Feed Rates (IPR): .0015 - .003 - .006
• Travel of Knee (In.): 19-1/4
• Head Movement (Deg.): 90°R & L 45° F & B
• Motor (HP): 5HP, 230/460V, 3Ph
• Overall Dimensions (L x W x H) (In.): 104-1/4 x 79-7/8 x 92-1/8
• Spindle Travel (In.): 5
• Style (Type): CNC
• Spindle Taper (In. x TPI): NST #40
• Work Table Weight Capacity (Lbs.): 925
• Table Longitudinal Travel (In.): 33-7/8
• Table Size (L x W) (In.): 12 x 54
• Table Cross Travel (In.): 15-1/3
• T-Slot Centers (In.): 2-1/2
• Range of Spindle Speeds (RPM): 80 - 3,800
• Travel of Ram (In.): 25
• Distance Spindle to Column (Max.) (In.): 27-3/4
• Distance Spindle to Column (Min.) (In.): 7-1/2
• Quill Diameter (In.(more...)
