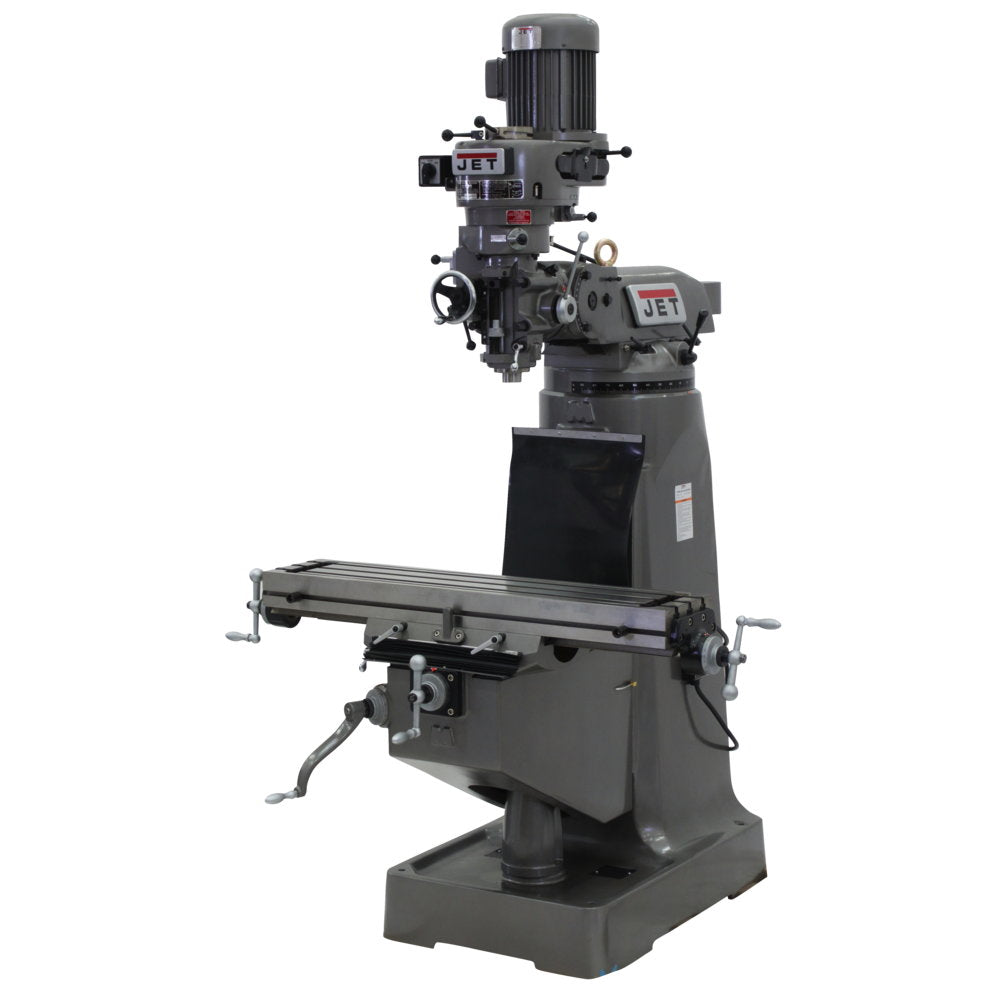

Jet 692182 JTM-1 Mill With 3-Axis Newall DP500 DRO (Knee)


Price:
Sale price$9,799.00 Regular price$12,027.07

Description

FEATURES:
• Certified Meehanite® Castings
• Precision bored and honed milling head
• Large diameter quill is chromed
• High precision Class 7 spindle bearings
• Spindle head is internally cooled
• Heavy duty splined motor drive
• One piece quill pinion and shaft
• Three stage power downfeed with automatic stop
• Heavy duty spindle brake
• Precision hardened and ground ways

SPECIFICATIONS:
• Spindle Travel: 5"
• Table Cross Travel: 12-1/2"
• T-Slot Centers: 2-1/2"
• Min. Distance Spindle to Column: 4-1/2"
• Quill Down Feed Rates (IPR): .0015 - .003 - .006
• Work Table Weight Capacity: 550 lbs
• Quill Diameter: 3-3/8"
• Collet Capacity: 1/8 - 7/8
• Overall Dimensions (L x W x H) (In.): 57 x 64 x 82
• Number of Spindle Speeds: 8
• Range of Spindle Speeds: 80 - 2,720 RPM
• Head Movement: 90° R & L, 45° F & B
• Motor: 2 HP, 115/230V, 1Ph
• Style: Step Pulley R8
• Table Size (L x W) (In.): 9 x 42
• Max. Distance Spindle to Column: 19"
• T-Slots Number and Size: 3 and 5/8"
• Digital Readout: Newall DP500
• Travel of Knee: 14-1/2"
• Travel of Ram: 13-3/8"
• Max Distance Spindle to Table: 17-1/2"
• Table Longitudinal Tra(more...)
