Description

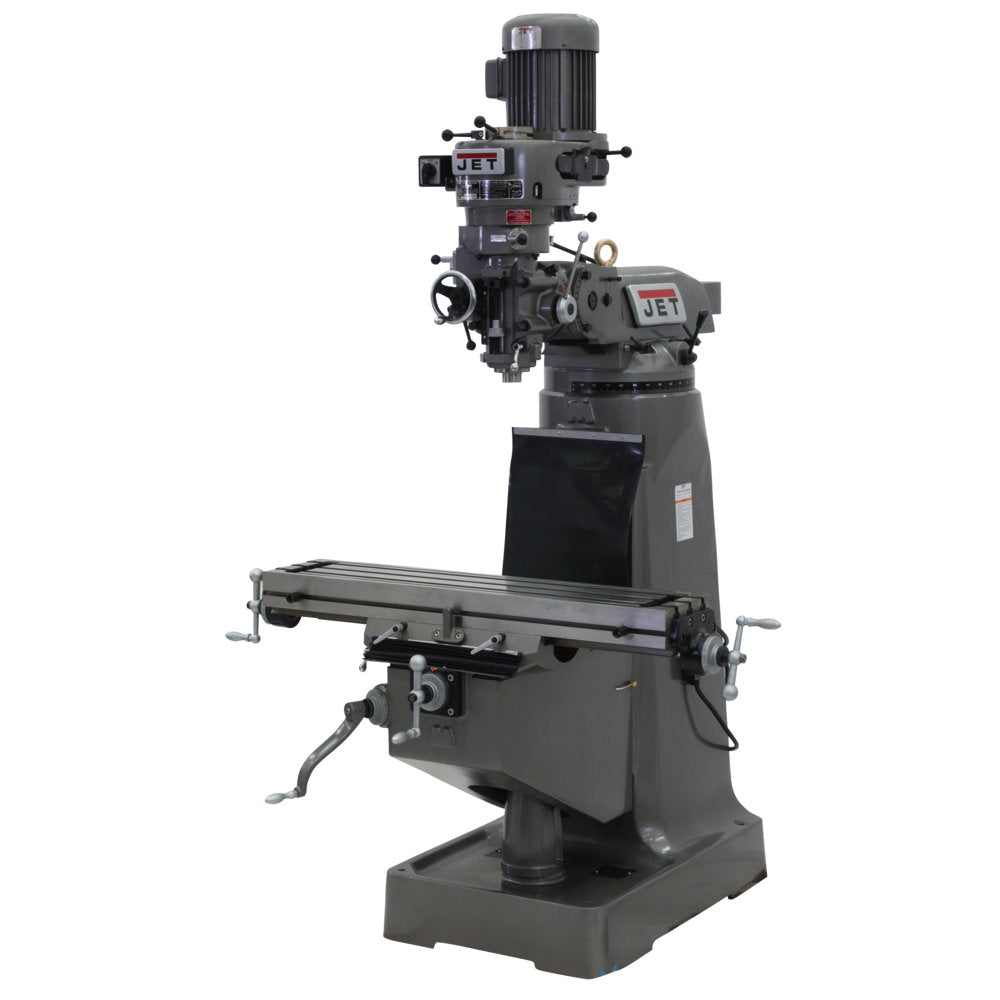

Jet 692191 Description
Three-stage power down feed with auto stop, high precision Class 7 spindle bearings and the rugged stability of Meehanite® castings ensures you get everything you need from the JTM-1 and 2 models. The internally cooled spindle head prevents seizing, and JET precision engineering ensures superior results with all the features you've come to expect, all backed by the industry-leading JET Two Year Warranty
Jet 692191 Features
- Certified Meehanite® Castings
- Precision bored and honed milling head
- Large diameter quill is chromed
- High precision Class 7 spindle bearings
- Spindle head is internally cooled
- Satin chrome finished dials
- Heavy duty splined motor drive
- One piece quill pinion and shaft
- Three stage power downfeed with automatic stop
- Heavy duty spindle brake
Jet 692191 Specifications
Spindle Travel | 5" |
Table Cross Travel | 12-1/2" |
T-Slot Centers | 2-1/2" |
Min. Distance Spindle to Column | 4-1/2" |
Quill Down Feed Rates (IPR) | .0015 - .003 - .006 |
Work Table Weight Capacity | 550 lbs |
Quill Diameter | 3-3/8" |
Collet Capacity | 1/8 - 7/8 |
Overall Dimensions (L x W x H) (In.) | 57 x 64 x 82 |
Number of Spindle Speeds | 16 |
Range of Spindle Speeds | 80 - 5,440 RPM |
Head Movement | 90° R & L, 45° F & B |
Motor | 2 HP, 230V, 3Ph |
Style | Step Pulley R8 |
Table Size (L x W) (In.) | 9 x 42 |
Max. Distance Spindle to Column | 19" |
T-Slots Number and Size | 3 and 5/8" |
Digital Readout | Newall DP500 |
Powerfeed | X-Axis |
Travel of Knee | 14-1/2" |
Travel of Ram | 13-3/8" |
Max Distance Spindle to Table | 17-1/2" |
Table Longitudinal Travel | 23-7/8" |
Table Longitudinal Travel With Powerfeed | 20-2/7" |
Spindle Taper (In. x TPI) | R-8 |
