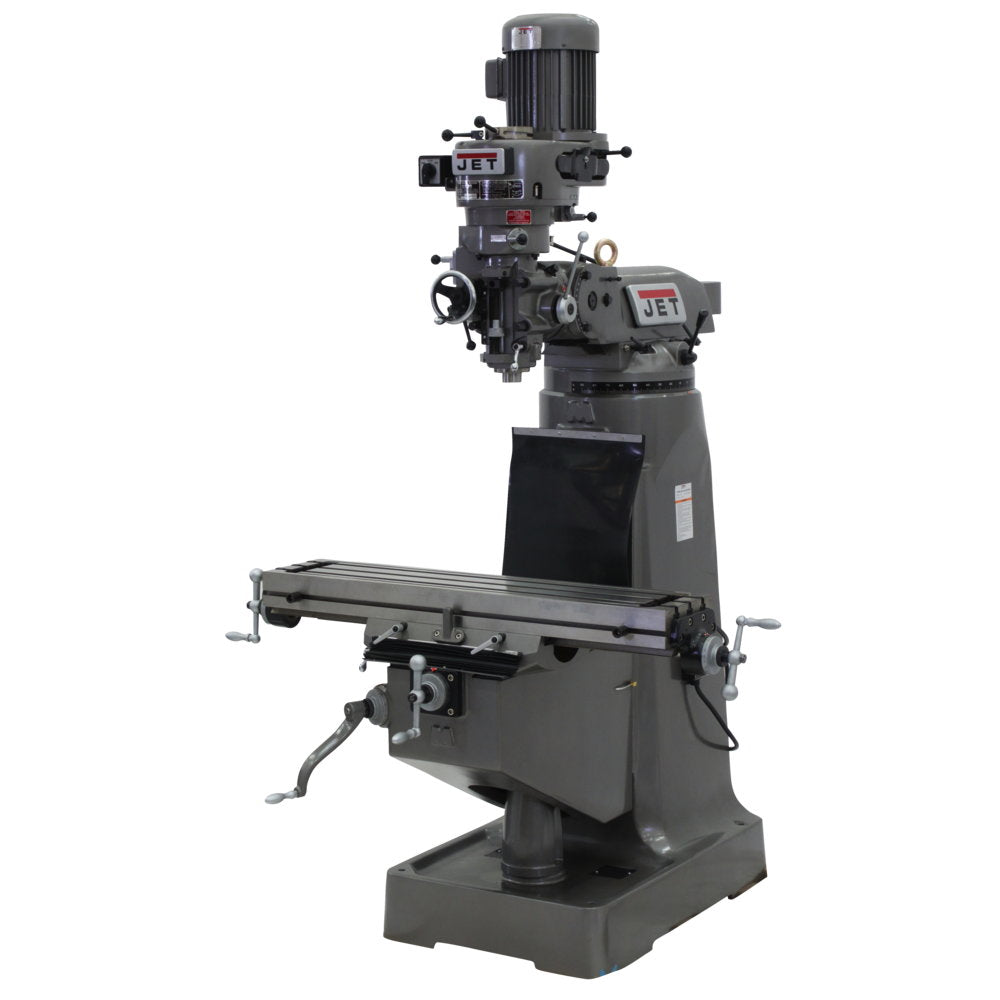

Jet JT9-692195 JTM-2 Mill With Newall DP500 DRO With X & Y-Axis Powerfeeds


Price:
Sale price$14,999.00

Description

Jet 692195 Description

Three-stage power down feed with auto stop, high precision Class 7 spindle bearings and the rugged stability of Meehanite® castings ensures you get everything you need from the JTM-1 and 2 models. The internally cooled spindle head prevents seizing, and JET precision engineering ensures superior results with all the features you've come to expect, all backed by the industry-leading JET Two Year Warranty

Jet 692195 Features

  • Certified Meehanite® Castings
  • Precision bored and honed milling head
  • Large diameter quill is chromed
  • High precision Class 7 spindle bearings
  • Spindle head is internally cooled
  • Heavy duty splined motor drive
  • One piece quill pinion and shaft
  • Three stage power downfeed with automatic stop
  • Heavy duty spindle brake
  • Precision hardened and ground ways

Jet 692195 Specifications

Spindle Travel 5"
Table Cross Travel 12-1/2"
T-Slot Centers 2-1/2"
Min. Distance Spindle to Column 4-1/2"
Quill Down Feed Rates (IPR) .0015 - .003 - .006
Work Table Weight Capacity 550 lbs
Quill Diameter 3-3/8"
Collet Capacity 1/8 - 7/8
Overall Dimensions (L x W x H) (In.) 57 x 64 x 82
Number of Spindle Speeds 8
Range of Spindle Speeds 80 - 2,720 RPM
Head Movement 90° R & L, 45° F & B
Motor 2 HP, 115/230V, 1Ph
Style Step Pulley R8
Table Size (L x W) (In.) 9 x 42
Max. Distance Spindle to Column 19"
T-Slots Number and Size 3 and 5/8"
Digital Readout Newall DP500
Powerfeed X and Y-Axis
Travel of Knee 14-1/2"
Travel of Ram 13-3/8"
Max Distance Spindle to Table 17-1/2"
Table Longitudinal Travel 23-7/8"
Table Longitudinal Travel With Powerfeed 20-2/7"
Spindle Taper (In. x TPI) R-8
