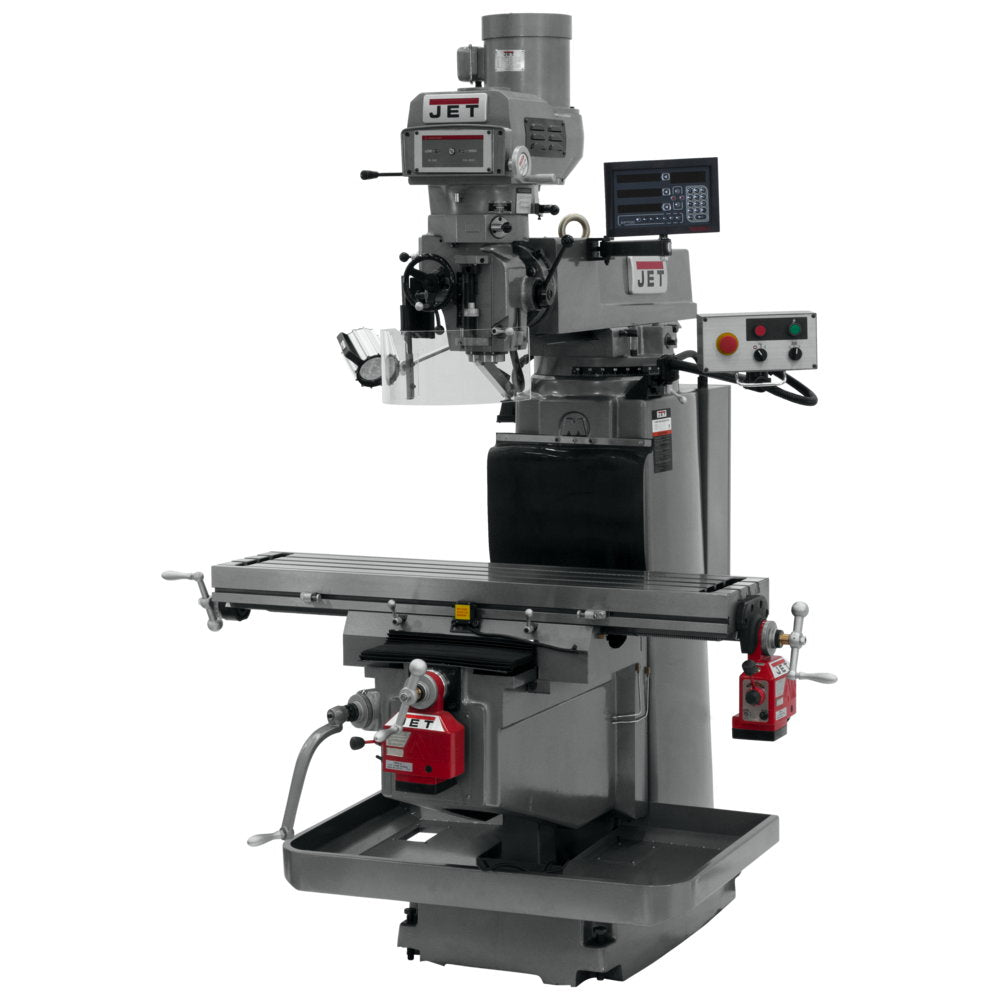

Jet JT9-698069 JTM-1254VS Vertical Mill with DP700 DRO, X/Y Powerfeed


Price:
Sale price$24,999.00

Description

Jet 698069 Description

The JET JTM-1254RVS and JTM-1254VS combine durability, strength and precision engineering, resulting in 12" x 54" Variable Speed Vertical Milling Machines that turn out high quality components. Designed for ease of use, Jet Mills provide ongoing automatic lubrication and quick nut spindle feed along with the JET exclusive new casting, providing the end-user with an easier solution to leveling the machine without raising it up off the floor. These heavy-duty mills are offered in both R-8 & NT-40 Spindles with all the features you've come to expect backed by the industry-leading JET Two Year Warranty.

Jet 698069 Features

  • Certified Meehanite® Castings
  • Precision bored and honed milling head
  • High precision Class 7 spindle bearings
  • Quick Spindle Feed Nut
  • Three-stage power downfeed with automatic stop
  • Heavy-duty spindle brake
  • Precision hardened and ground ways and table
  • Three Precision ground t-slots
  • Turcite B on X & Y Axis
  • Adjustable gibs throughout

Jet 698069 Specifications

Spindle Travel (In.) 5
Table Cross Travel (In.) 15-1/3
T-Slot Centers (In.) 2-1/2
Distance Spindle to Column (Min.) (In.) 7 1/2
Quill Down Feed Rates (IPR) .0015–.003–.008
Work Table Weight Capacity (Lbs.) 925
Quill Diameter (In.) 4-1/8
Collet Capacity 1/8 - 1
Overall Dimensions (L x W x H) (In.) 92-1/8 x 79-7/8 x 104-1/4
Range of Spindle Speeds (RPM) 80 - 3,800
Head Movement (Deg.) 90°R & L 45° F & B
Number of Axis 2
Motor (HP) 5HP, 230/460V, 3Ph
Style (Type) Variable Speed NT40
Table Size (L x W) (In.) 12 x 54
Distance Spindle to Column (Max.) (In.) 27-3/4
Digital Readout Newall DP700
Powerfeed X & Y-Axis
Travel of Knee (In.) 19-1/4
Travel of Ram (In.) 25
Max Distance Spindle to Table (In.) 23
Table Longitudinal Travel (In.) 33-7/8
Table Longitudinal Travel With Powerfeed (In.) 28-1/4
Saddle Width (In.) 25-5/8
Column Width (In.) 14-1/4
number of axis 2
Spindle Taper (In. x TPI) NST #40
