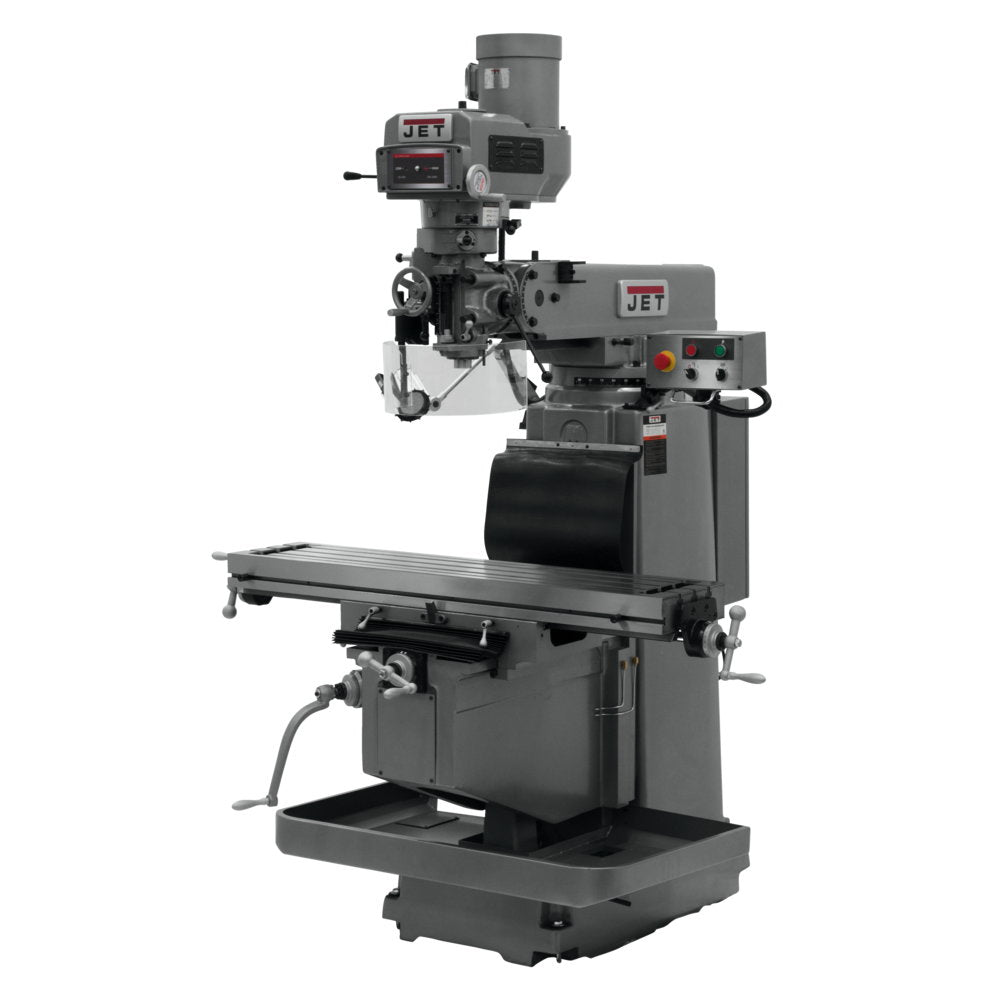

Jet 698083 JTM-1254VS Vertical Mill with DP700 3X-Q, X/Y/Z PFD, APDB


Price:
Sale price$29,399.00

Description

FEATURES:
• Certified Meehanite® Castings
• Precision bored and honed milling head
• High precision Class 7 spindle bearings
• Quick Spindle Feed Nut
• Three-stage power downfeed with automatic stop
• Heavy-duty spindle brake
• Precision hardened and ground ways and table
• Three Precision ground t-slots
• Turcite B on X & Y Axis
• Adjustable gibs throughout

SPECIFICATIONS:
• Spindle Travel (In.): 5
• Table Cross Travel (In.): 15-1/3
• T-Slot Centers (In.): 2-1/2
• Distance Spindle to Column (Min.) (In.): 7 1/2
• Quill Down Feed Rates (IPR): .0015–.003–.008
• Work Table Weight Capacity (Lbs.): 925
• Quill Diameter (In.): 4-1/8
• Collet Capacity: 1/8 - 1
• Overall Dimensions (L x W x H) (In.): 92-1/8 x 79-7/8 x 104-1/4
• Range of Spindle Speeds (RPM): 80 - 3,800
• Head Movement (Deg.): 90°R & L 45° F & B
• Number of Axis: 3 (Quill)
• Motor (HP): 5HP, 230/460V, 3Ph
• Style (Type): Variable Speed NT40
• Table Size (L x W) (In.): 12 x 54
• Distance Spindle to Column (Max.) (In.): 27-3/4
• Digital Readout: Newall DP700
• Powerfeed: X, Y & Z-Axis
• Power Draw Bar: Pheumatic
• Travel of Knee (In.): 19-1/4
• Travel of Ram (I(more...)
