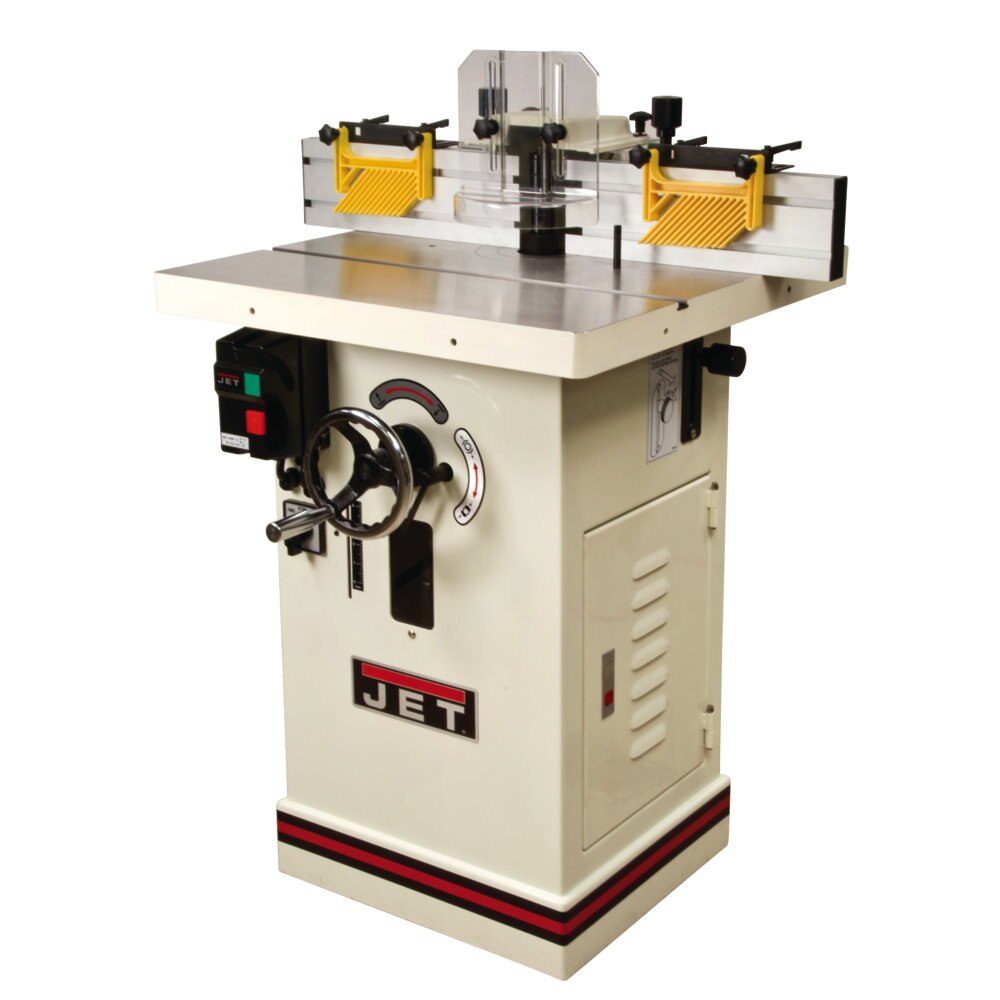

Jet 708309 JWS-25X, JET Shaper, 3HP, 1PH

Sale price$2,799.99


The new model JWS-25X Shaper features a powerful 3HP motor with magnetic controls. The large 25”x 25-1/2” precision ground cast iron table provides plenty of support. Safe, easy cutter set up is assisted by a positive detent spindle lock. The independently adjustable left and right fence has a built in 4” dust port.

• Two-speeds let you select the best speed and torque for different cutter diameters
• Independently adjustable left and right fences, standard with a micro adjust control for precise positioning
• Large 25” X 25-1/2” precision ground cast iron table provides a durable work area
• V-belt transfers maximum power to the spindle
• Extruded aluminum fence comes with T-Slots and 2 feather board hold-downs
• Reversible spindle speeds for diverse shaping jobs
• Powerful 3HP, 1Ph motor with magnetic controls
• Starting pins for irregular shaping
• Extra large chrome handwheel is conveniently located for fast, easy and accurate spindle height adjustments
• 4” Dust port built into fence for convenient hookup to any dust collection system

• Spindle Size Under Nut (In.): 2-13/64, 3-3/16
• Spindle Speed (RPM): 7500/10000
• Dust Collection Minimum CFM Required (CFM): 600
• Table Opening Diameter (In.): 6-9/32
• Motor Power (HP): 3
• Spindles Included: No
• Motor Phase (PH): 1
• Maximum Spindle Diameter (In.): 1/2, 3/4
• Reversible: Yes
• Maximum Diameter Cutter Below Table (In.): 6
• Table T-Slot (In.): 3/4 x 3/8
• Spindle Travel (In.): 3-1/2
• Table Height from Floor (In.): 33
• Fence Size (L x H) (In.): 14-1/2 x 4-3/4
• Electrical Controls: Yes
• Prewired Voltage (V.): 230
• Maximum Diameter Cutter Above Table (In.): 7
• Motor Voltage (V.): 230
• Dust Port Outside Diameter (In.): 4
