Jet 708323 Description

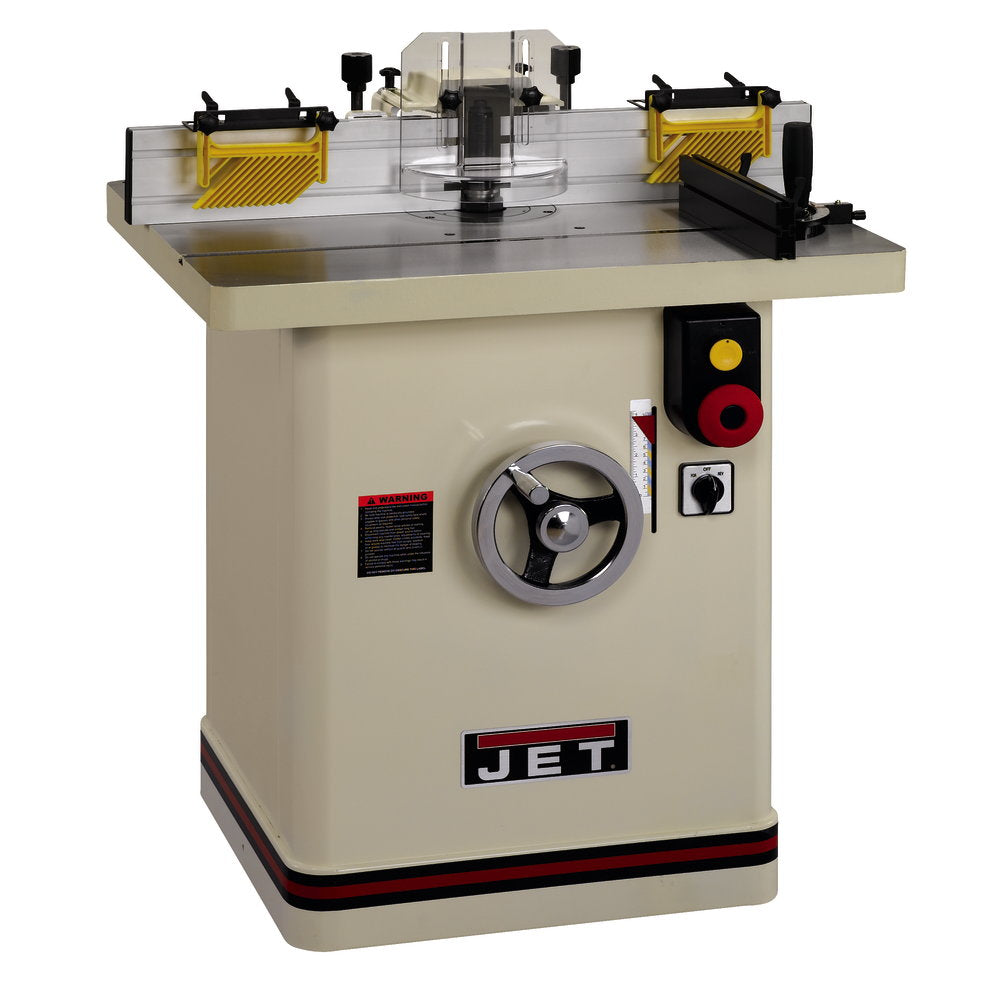

This heavy-duty JET Shaper is available with a powerful 3HP, 1Ph motor with magnetic controls. The four-speed (4000, 6000, 8000, 10000 RPM) step pulley drive with quick release lever allows you to select the best speed and torque for different cutter diameters. The spindle is reversible, and receives maximum power transfer from the v-belt. The independently adjustable fences have micro adjust controls for precise positioning.
Jet 708323 Features
- Four-speeds 4000, 6000, 8000, 10000 RPM let you select the best speed and torque for different cutter diameters
- Powerful 3HP, 1Ph motor with magnetic controls
- Poly-V-belt transfers maximum power to the spindle
- Large 26-3/4” X 32-1/4” precision ground cast iron table provides a durable work area, predrilled for power feeder
- Spindle height scale
- Starting pins for irregular shaping
- Extruded aluminum fence comes with T-Slots and 2 feather board hold-downs
- Extra-large chrome handwheel is conveniently located for fast, easy and accurate spindle height adjustments
- Reversible spindle speeds for diverse shaping jobs
- 4" Dust port built into fence for convenient hookup to any dust collection system
Jet 708323 Specifications
| Spindle Size Under Nut (In.) | 4 |
| Spindle Speed (RPM) | 4000/6000/8000/10000 |
| Dust Collection Minimum CFM Required (CFM) | 600 |
| Table Opening Diameter (In.) | 6-19/64 |
| Motor Power (HP) | 3 |
| Spindles Included | 1-1/4" |
| Motor Phase (PH) | 1 |
| Maximum Spindle Diameter (In.) | 1-1/4 |
| Reversible | Yes |
| Maximum Diameter Cutter Below Table (In.) | 6 |
| Table T-Slot (In.) | 3/4 x 3/8 |
| Spindle Travel (In.) | 4 |
| Table Height from Floor (In.) | 33-1/4 |
| Fence Size (L x H) (In.) | 16 x 4-3/4 |
| Electrical Controls | Yes |
| Prewired Voltage (V.) | 230 |
| Maximum Diameter Cutter Above Table (In.) | 7-1/2 |
| Motor Voltage (V.) | 230 |
| Dust Port Outside Diameter (In.) | 4 |
