Description
Jet 708524 Description

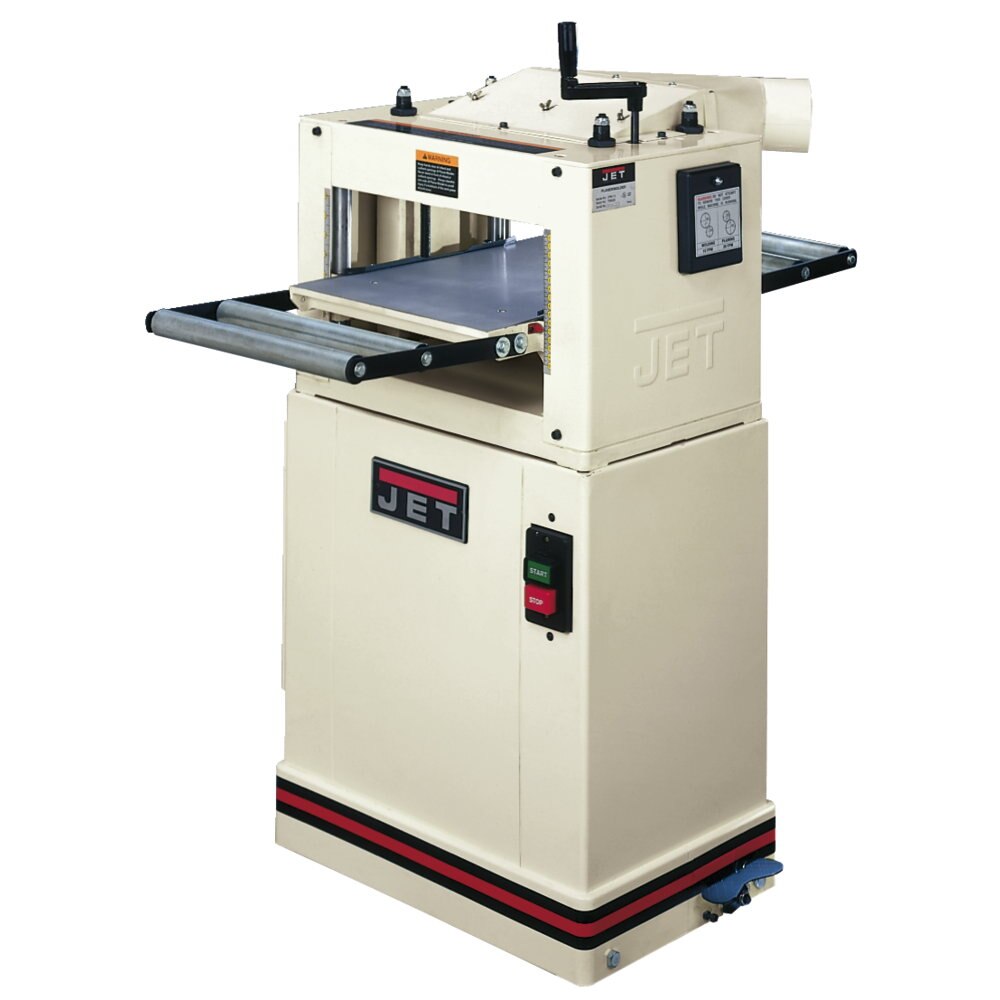

The JET JPM-13CS 13" Closed Stand Planer / Molder boasts a 1.5 HP motor. The sturdy cast iron table and base provide strength and reduce vibration during use. The Three cutter head design produces a superior finish. Built in lockable caster add support and stability to the machine while allowing it to be maneuverable.
Jet 708524 Features
- Cast iron table and base provide strength and reduce vibration during use
- Four precision-ground column design feature adds stability when raising and lowering the table
- Three cutter head design produces a superior finish in either application
- Two speed gear box has feed rates set for optimum planing and molding results
- Molding cutter head accommodates over 40 standard molding cutter sets; most 2" or smaller heads can be installed without removing the planning knives to save you set-up time
- Infeed and outfeed rollers are adjustable and rubber-coated to support your workpiece without marring the wood
- Top-mounted height adjustment handle is easy to use for quick table height changes
- Totally enclosed fan-cooled 1-1/2HP motor uses two matched V-belts to deliver smooth, consistent power to the cutter head
- Exclusive angled 4" dust port keeps the dust hose out of the way while providing efficient chip and dust removal
- Built-in lockable casters add support and stability to machine while in use
Jet 708524 Specifications
| Prewired Voltage (V.) | 115 |
| Cutterhead Diameter (In.) | 2-9/16 |
| Dust Port Outside Diameter (In.) | 4 |
| Motor Phase (PH) | 1 |
| Number of Knives | 3 |
| Motor Voltage (V.) | 115/230 |
| Cutterhead Speed (RPM) | 4500 |
| Style (Type) | Planer/Molder |
| Motor Amps | 15/7.5 |
| Motor Power (HP) | 1-1/2 |
| Cuts Per Minute | 13500 |
| Minimum Planing Length (In.) | 14 |
| Maximum Planing Width (In.) | 13 |
| Feed Rate - Planing (FPM) | 20 |
| Feed Rate - Molding (FPM) | 10 |
| Maximum Planing Thickness (In.) | 6-1/8 |
