Description
Jet 708596K Description

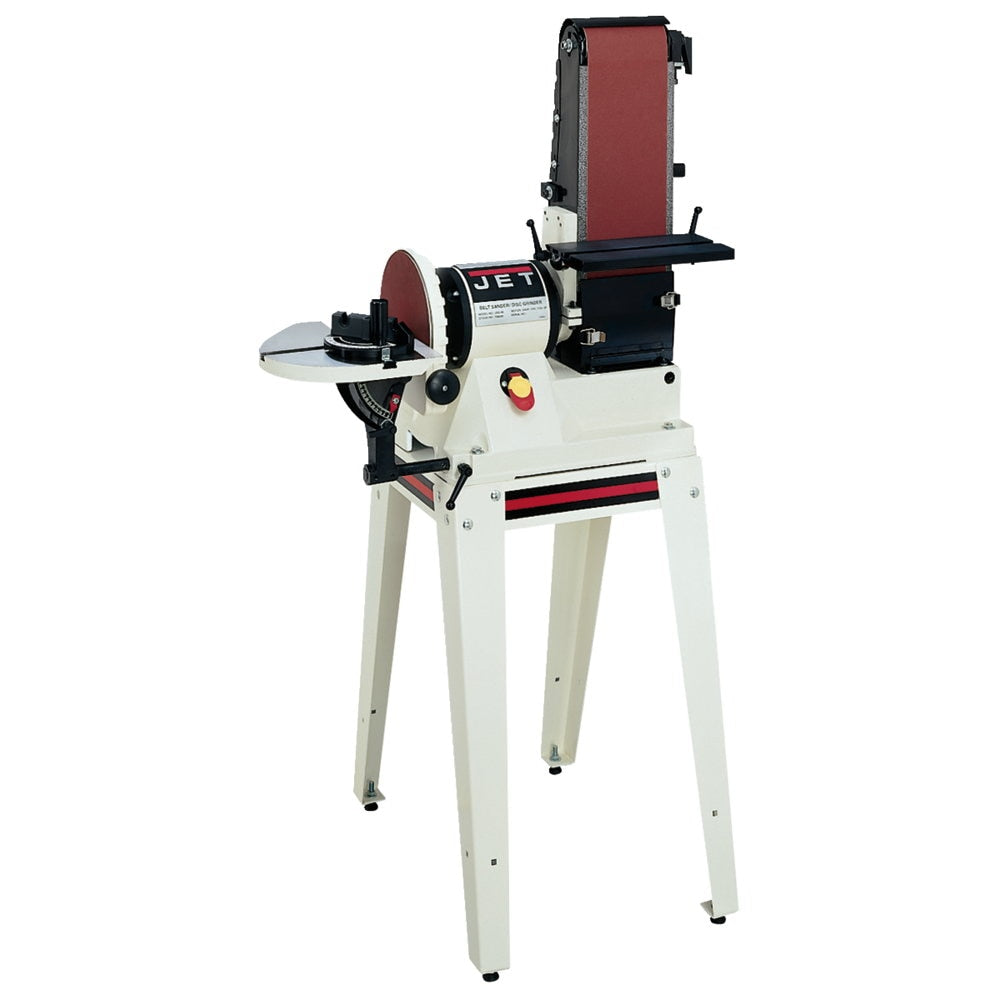

The unique JSG-96OS Sander combines a 9" disc and 6" x 48" belt for workshop versatility. While small and compact, the JSG-96 offers industrial 3/4 HP power while taking up a small footprint in your shop. A quick-release belt tension lever makes belt changes fast and easy while a quick-lock dust cover allows fast disc changes.
Jet 708596K Features
- Large cast iron table has preset stops at 90° and 45° to let you use the belt sander vertically, horizontally or anywhere in between
- Exclusive dual thumbscrew belt tracking adjustment locks to keep belt on track during use
- Graphite covered steel platen runs cooler increasing machine and belt life
- Specially designed belt guard allows full use of the 6" belt width and length
- Drive drum is rubber-coated for a better grip on the sanding belt resulting in less slippage
- Tracking adjustment knob with quick-lock handle keeps belt on track during use
- Quick-release belt tension lever makes belt changes fast and easy
- Quick-lock dust cover allows fast disc changes
- Single 4" dust port on the back of the base collects dust effectively from both the belt and disc
- Powerful 3/4HP motor easily handles the toughest sanding operations
Jet 708596K Specifications
| Motor Voltage (V) | 115 |
| Belt Table Tilt (Deg.) | 10 Up, 45 Down |
| Motor Phase (PH) | 1 |
| Prewired Voltage (V) | 115 |
| Motor Amps | 11 |
| Disc Diameter (In.) | 9 |
| Dust Port Outside Diameter (In.) | 4 |
| Style (Type) | Open Stand |
| Belt Table Size (L x W) (In.) | 11 x 5-1/2 |
| Disc Speed (RPM) | 1725 |
| Sanding Belt Size (L x W) (In.) | 48 x 6 |
| Disc Table Tilt (Deg.) | 10 Up, 45 Down |
| Disc Table Size (L x W) (In.) | 12 x 7-1/2 |
| Belt Speed (RPM) | 2258 |
| Motor Power (HP) | 3/4 |
