Description
Jet 708657K Description

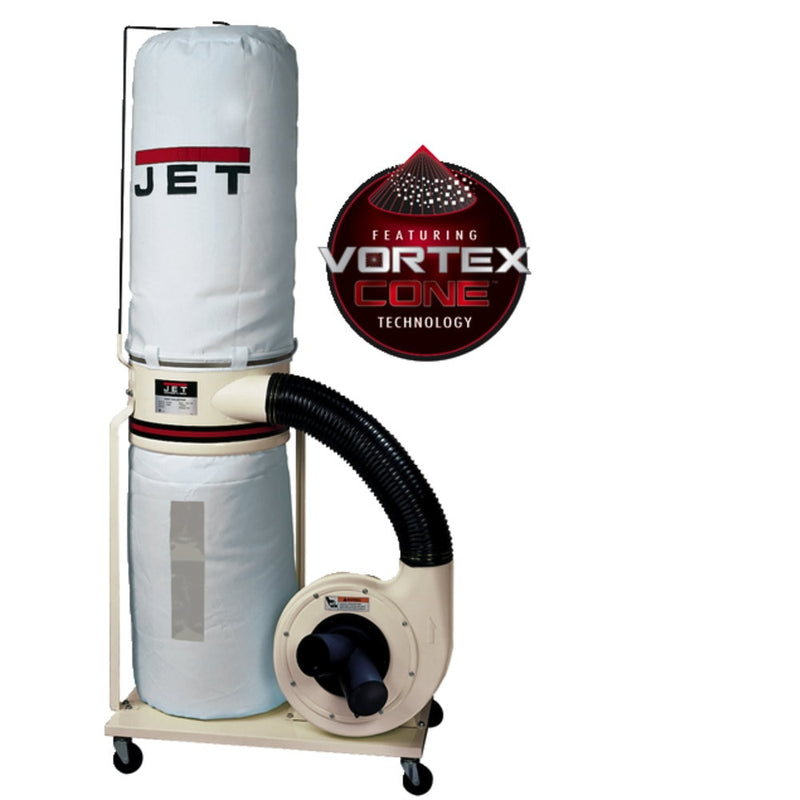

The JET DC-1100VX features the exclusive Vortex Cone™ which improves chip separation to prevent clogging of the filter, and increases packing efficiency of the collector bag. The high air velocity (CFM) stands up to any competitive specifications, and the industrial controls are designed for years of durable use. Collection bags have an elastic band for fast installation and removal. Swivel casters offer maneuverability within the shop. Visit http://www.vortexcone.com for more information.
Jet 708657K Features
- Vortex Cone improves chip separation and collector bag packing efficiency
- Eliminates premature filter clogging for sustained performance
- Single-stage design for economical and quiet operation
- Industrial controls designed for years of trouble-free use
- Quick-connect collection bags with elastic band for fast, easy installation and removal
- High air velocity (CFM) design stands up to any competitive specifications
- Permanently lubricated, totally enclosed, fan-cooled motors are rated for continuous-duty
- Includes four casters for maneuverability and total portabili
Jet 708657K Specifications
| Style (Type) | Bag |
| Prewired Voltage (V.) | 115 |
| Motor Power (HP) | 1-1/2 |
| 1-Hose Connection Diameter (In.) | 6 |
| Collection Bag Length (In.) | 30 |
| Filter Bag/Canister Length (In.) | 32 |
| Impeller Diameter (In.) | 11 |
| Motor Voltage (V.) | 115/230 |
| Air Flow @ 4" (CFM) | 1100 |
| Motor Phase (PH) | 1 |
| Collection Bag Capacity (Cu. Ft.) | 5-3/10 |
| Impeller Material | Steel |
| Number of Air Inlets | 1 at 6", 2 at 4" |
| Static Pressure (Wc.) | 10-1/2 |
| Sound Rating (Db.) | 70 - 80 |
| Bag Diameter (In.) | 20 |
| 2-Hoses Connection Diameter (In.) | 4 |
| Motor Amps | 11/5.5 |
