Description

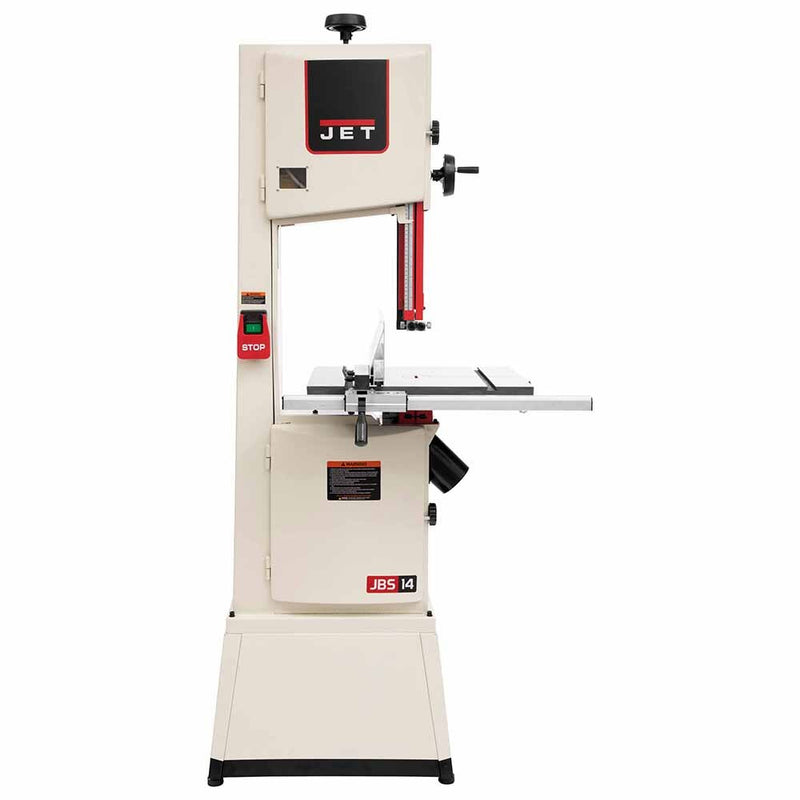

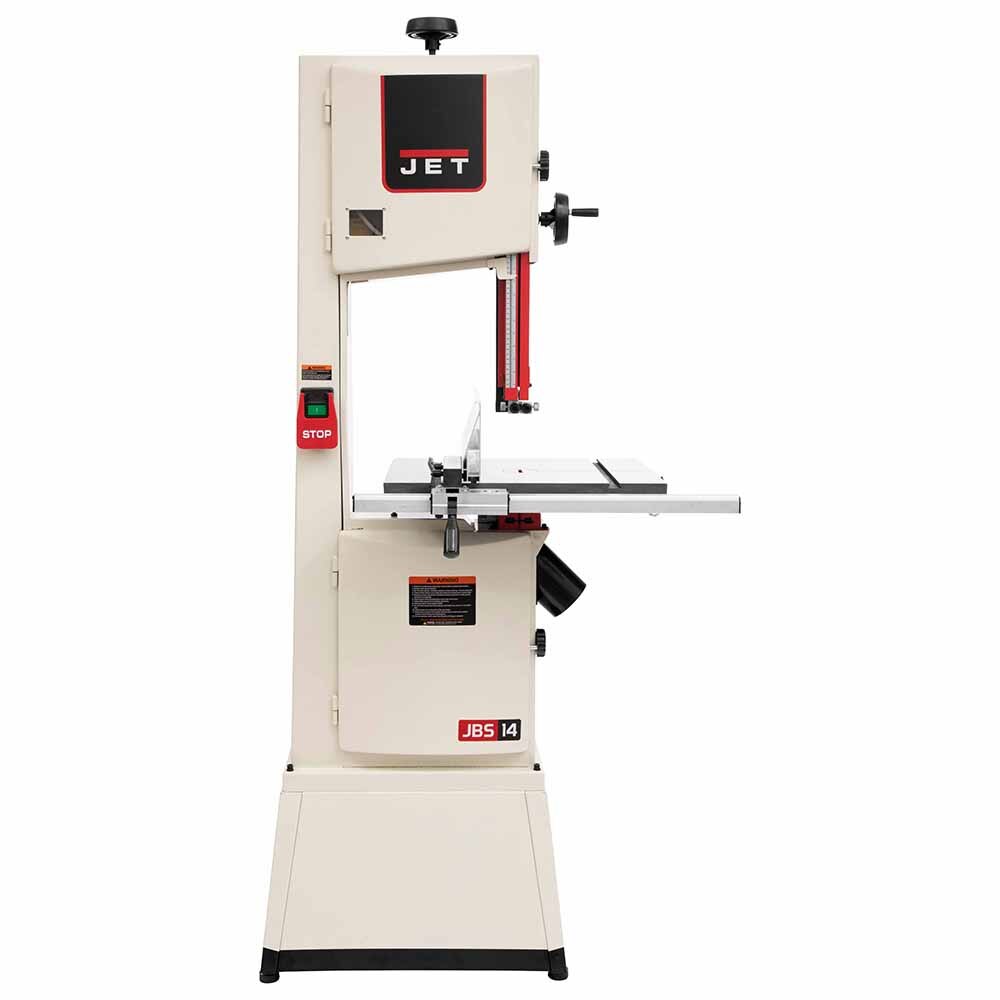

Introducing the Bigger, Heavier JET 14" SFX Bandsaw with its best in class resaw capacity, large throat depth and heavy-duty design. The JET 14" SFX Bandsaw features a deeper table with a massive 360 sq. in. cast iron work surface for greater work piece support. With over a 13" resaw capacity, this band saw is built for cutting large pieces of wood, slicing veneers, and cutting book matched panels. Impressive heavy-duty tubular steel welded construction, with a total weight of over 300 lbs! Jet understands the importance of dust collection and has included dual 4" dust ports for maximum dust collection efficiency.
INCLUDES:
• (1) 14'' Steel frame bandsaw
• (1) Steel stand
• (1) Table with insert pre-installed
• (1) Dust chute
• (1) Resaw fence
• (4) Hex wrenches, 2.5/4/5/6mm (not shown)
• (1) Operating Instructions and Parts Manual
• (1) Hardware pack
FEATURES:
• Deeper table with a massive 360 sq. in. of cast iron work surface for greater work piece support
• Over 13" Resaw capacity for cutting large pieces of wood, slicing veneers, and cutting book matched panels
• Heavy duty tubular steel welded construction with a total weight of over 300 lbs

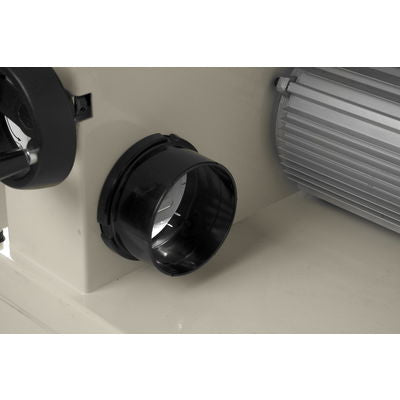

• Dual 4" dust ports for maximum dust collection efficiency

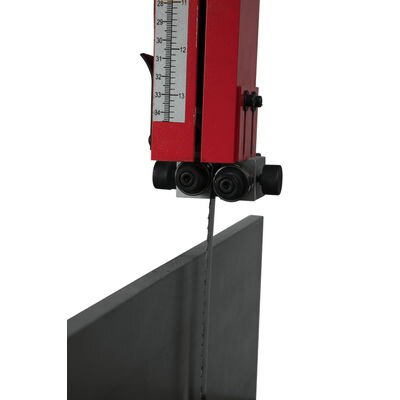

• Independently adjustable, upper and lower ball bearing blade guide

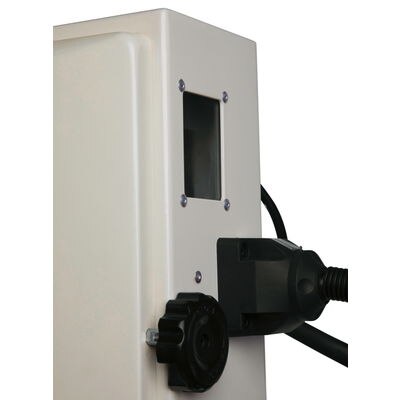

• Convenient 115V AC outlet location for optional accessories

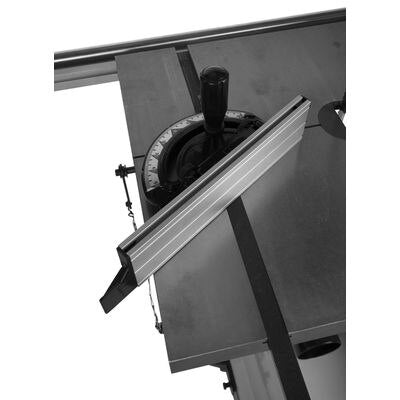

• Premium metal, fully featured miter gauge included
• Engineered die-cast and steel trunnion system, allows for single point adjustments when moving table

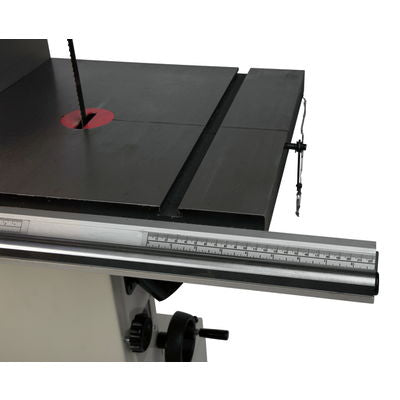

• Larger machined aluminum fence surface with easily visible measurements for the most accurate cutting
• Robust stamped steel doors with welded steel pin hinges for greater product durability
SPECIFICATIONS:
• Minimum Saw Blade Width (In.): 1/8
• Miter Gauge Positive Stops: 0,45R,45L
• Blade Speed (SFPM): 3000
• Table T-Slot (In.): 3/4 (x2)
• Recommended Circuit Size (Amps.): 20
• Stand Type: Closed
• Motor Power (HP): 1.75
• Motor Voltage (V): 115/230
• Dust Collection Minimum CFM Required (CFM): 350
• Motor Phase (PH): 1
• Prewired Voltage (V): 115
• Motor Amps: 15/7.5
• Dust Port Outside Diameter (In.): 2 x 4
• Cutting Capacity Height (In.): 12
• Table Tilt (Deg.): 45 Right
• Blade Width (In.): 1/2
• Table Size (L x W) (In.): 21 x 17
• Maximum Saw Blade Width (In.): 1"
• Cutting Capacity Width (In.): 13.3
• Band Saw Size/Wheel Diameter (In.): 14
