Description
Jet 716250 Description

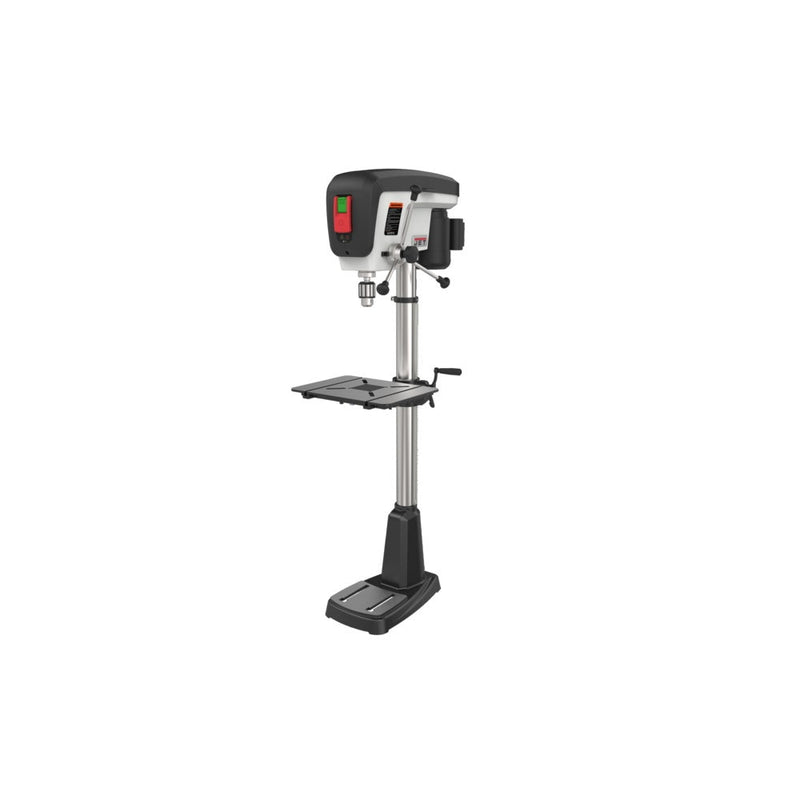

The new JET JDP-15F, 15" Floorstanding Drill Press. From a full 3-1/8" of spindle travel to the sturdy cast iron head with a poly v-belt drive system, this drill press is designed to perform. This drill press also features a one-handed belt-tensioning system and a large 12-1/2" x 17" work table.
Jet 716250 Features
- Spindle travels a full 3-1/8” with one revolution of the handle
- Large 12-1/2" x 17" precision ground work table features twin T-slot grooves and 4 table slots to accommodate any project
- One-handed belt tensioning allows for rapid speed changes
- Power switch features a safety key and large, paddle-style off button
- Integrated depth stop makes repetitive drilling quick and easy
- Xacta-X laser system easily identifies the drill center
- Long-lasting, built-in LED work light reduces shadows
- Table edge lip designed to make clamping easy
- Replaceable MDF table insert
- Large cast iron base provides stability
Jet 716250 Specifications
Motor Power | 3/4 HP |
Number of Spindle Speeds | 16 |
Motor Voltage | 115 V |
Spindle Speed Range | 210 - 3500 RPM |
Max Spindle Distance to Table | 30-1/2" |
Table Tilt (Deg.) | -45 to 45 |
Column Diameter | 2-3/4" |
Swing | 15" |
Chuck Size | 5/8" |
Base Size | 18-7/8" x 11-3/8" |
Motor Amps | 9 |
Table Size (L x W) | 12-1/2" x 17" |
Spindle Travel | 3-1/8" |
Motor Phase (PH) | 1 |
Prewired Voltage | 115 V |
Spindle Taper | MT2/JT3 |
Spindle Distance to Base | 46-1/2" |
Assembled Machine Dimensions (L x W x H) | 27" x 17" x 63-1/4" |
