Jet 719500 Description

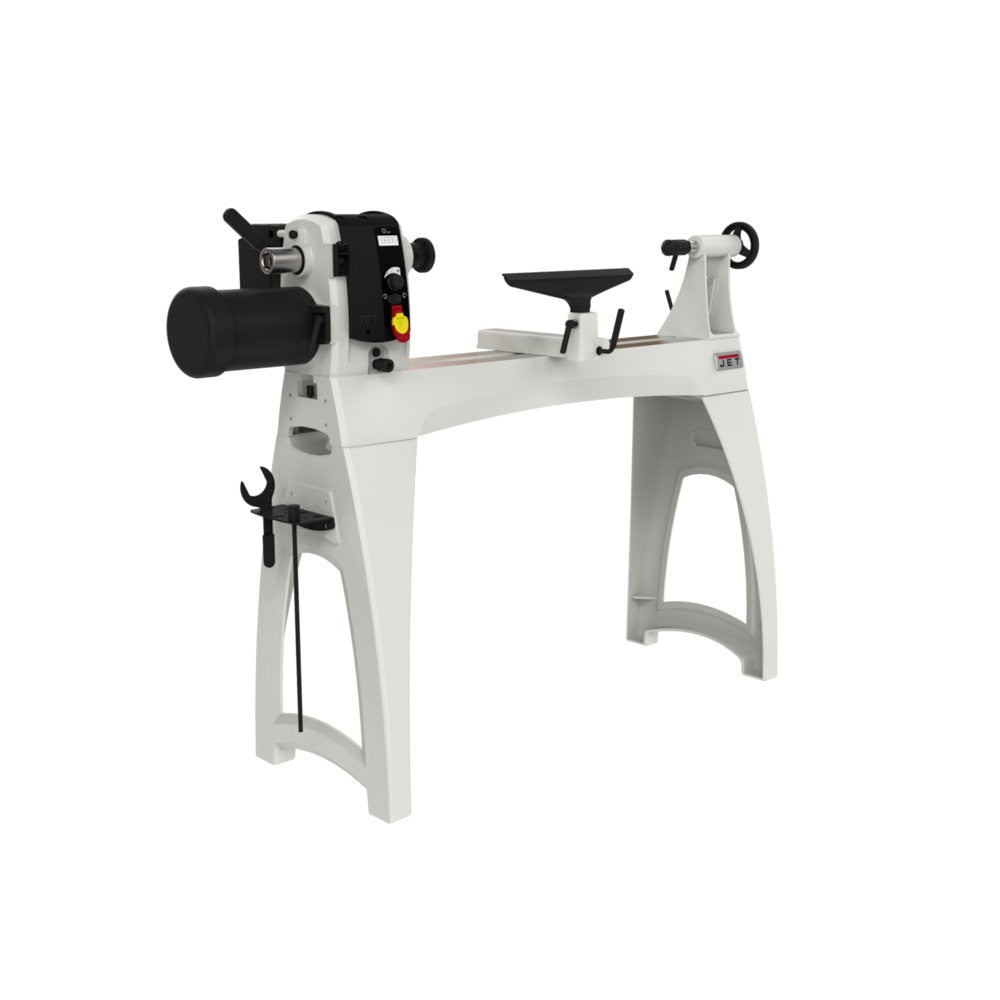

The new JET® 16" x 40" Electronic Variable Speed Woodworking Lathe is loaded with cutting-edge features that distinguish it from others in its class. Included is a sliding headstock that also pivots 360 degrees, electronic infinitely variable speed from 40 – 3200 RPM, and a newly designed headstock locking handle.
Jet 719500 Features
- Headstock slides and rotates for maximum versatility
- Extended spindle nose houses dual headstock spindle bearings
- Improved tailstock quill locking mechanism incorporates an anti-rotation key
- Tailstock features Acme threads for smooth and durable movement
- Banjo uses non-marring, positive locking wedge system to securely hold tool post
- Tool post locking mechanism designed for year of consistent strength
- Spindle lock latch frees up both hands
- Electronic infinitely variable speed from 40 – 3200 RPM
- 36 integrated indexing positions
- Newly designed headstock locking handle accessible from front of lathe
Jet 719500 Specifications
| Motor Amps | 4.6 |
| Distance Between Centers | 40" |
| Quill Travel | 4-1/4" |
| Prewired Voltage | 115 V Input Only |
| Outboard Turning | Yes |
| Tailstock Bore | 3/8" |
| Swing Over Bed | 16-1/2" |
| Number of Indexing Positions | 36 |
| Spindle Bore | 5/8" |
| Motor Power | 1-1/2 HP |
| Quill Taper | MT2 |
| Spindle Thread | 1-1/4" x 8 TPI |
| Motor Phase (PH) | 3 |
| Spindle Speeds | High 120-3200/Low 40-1200 |
| Centerline of Spindle to Floor | 44-1/2" |
| Spindle Taper | MT2 |
| Headstock Movement | Slide & Rotate |
| Motor Voltage | 230 V |
| Speed Range | 40-3200 |
| Swing Over Tool Rest Base | 12-7/8" |
| Recommended Circuit Size | 20 Amps |
| Bed Construction | Cast Iron |
| Wiring Remarks | 115V input only |
| Outboard External Threads (In. x TPI) | 3/4-14 LH |
| Bed Gap | 1-3/4" |
