Description

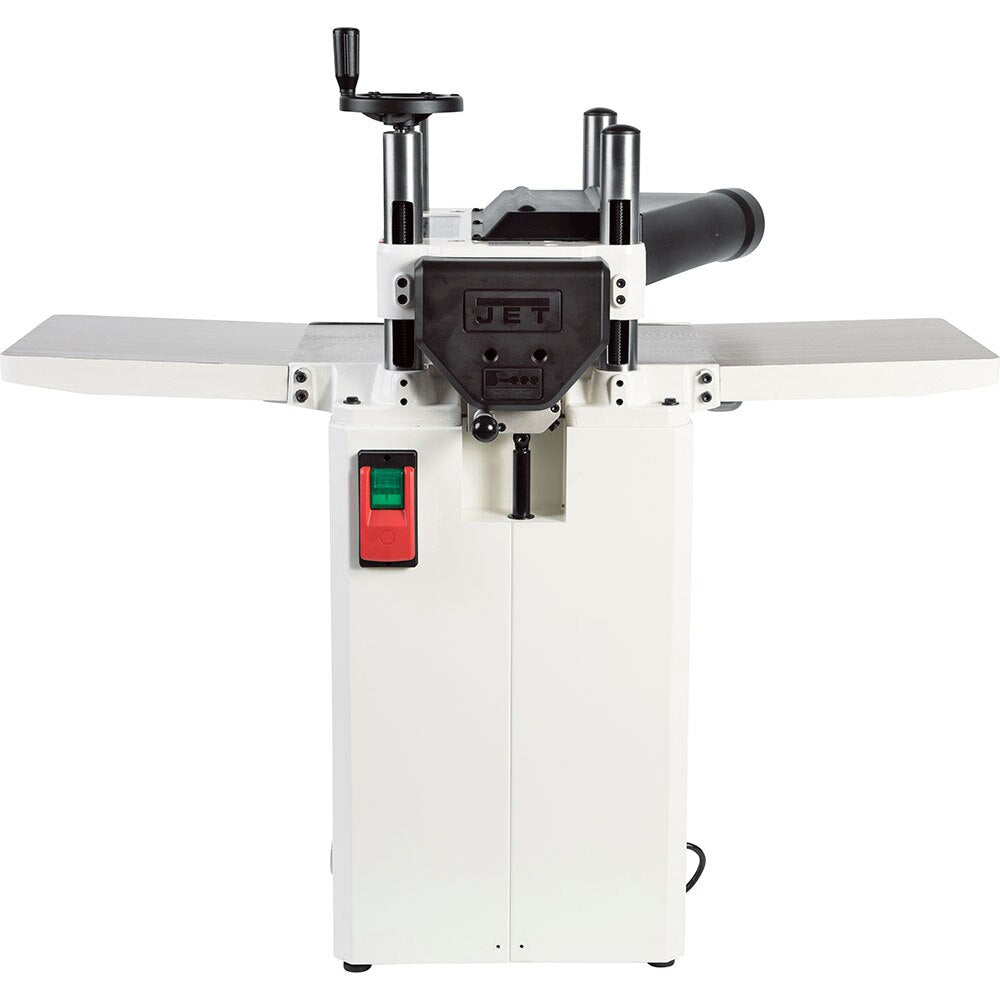

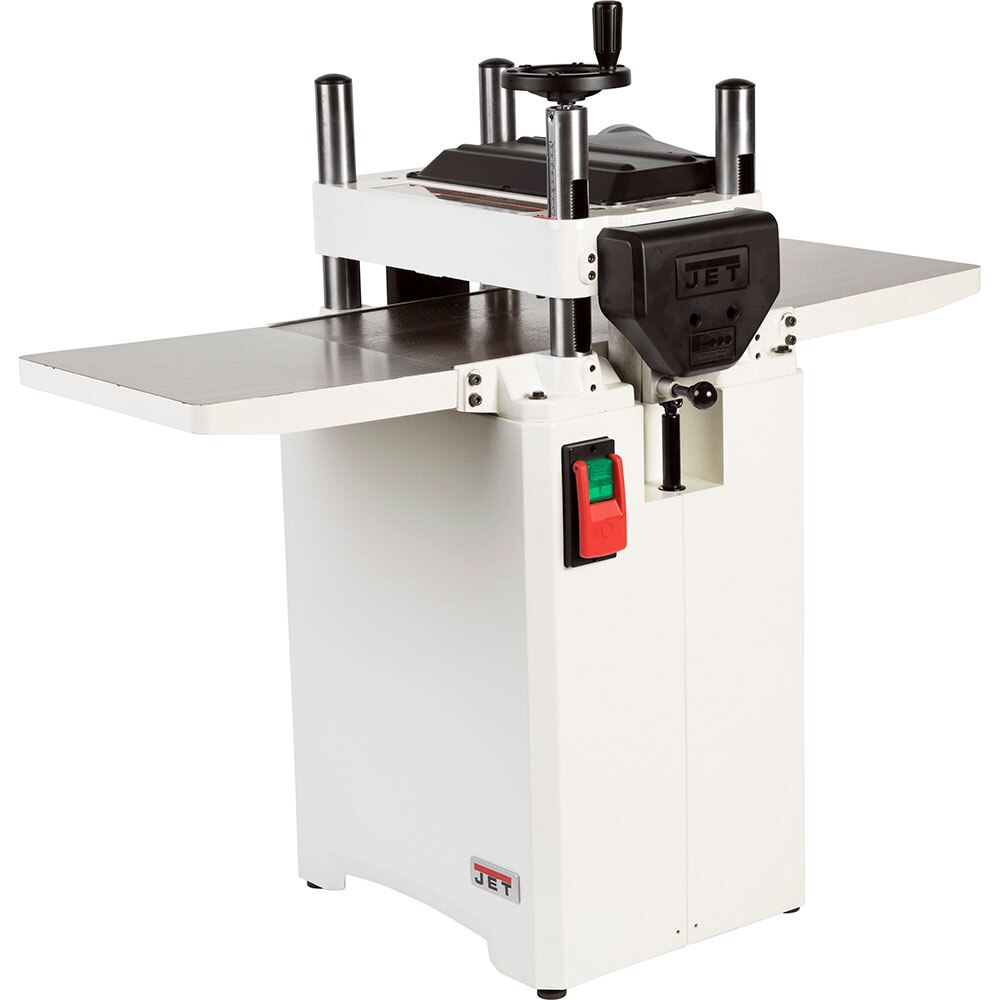

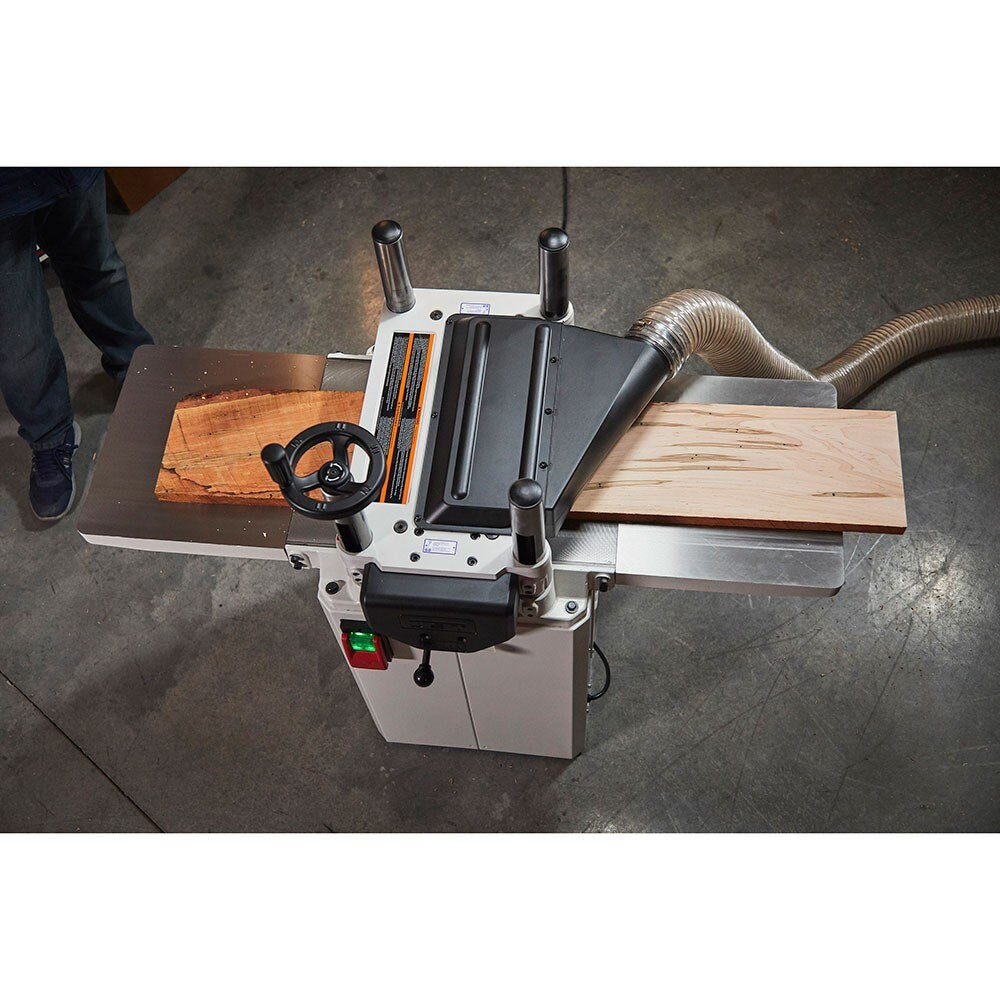

The New Jet 15" Helical Head Planer Delivers The Power And Efficiency That Woodworkers Demand In The Shop. Features Include A Premium Helical Cutterhead With 48 Staggered Carbide Knives For A Superior Finish And Quieter Cut, Innovative Precision Air Strut System Pass™, Rugged 4 Post Design, Cast Iron Infeed/Outfeed Tables, 2 Infeed Speeds And A Heavy-Duty Cast Iron Base Mounted To A Closed Steel Cabinet.
INCLUDES:
• (1) Straight Knife Planer
• (1) Helical Cutterhead
FEATURES:
• Innovative Jet - Precision Air Strut System (Pass™) Provides Consistent Upward Pressure On The Cutterhead, Reducing The Chance Of Board Snipe

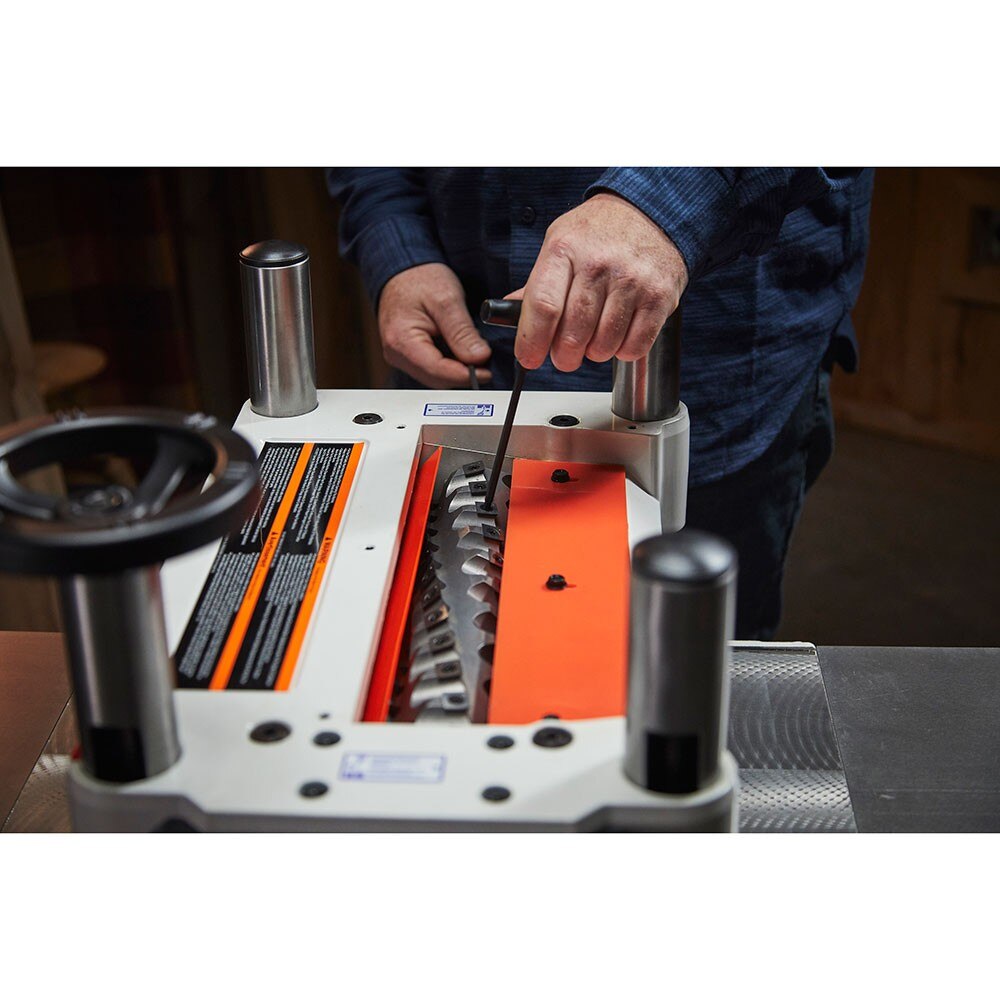

• Helical Cutterhead Houses 48 Staggered Carbide Knives That Are Engineered To Align Themselves Without Any Adjustment For A Superior Finish And Quieter Cut
• Heavy-Duty Precision Ground Cast Iron Table And Four Post Design Provides Maximum Control And Support When Passing Boards Through Planer.
• Powerful 3-Hp Motor With V-Belt Transmission Reduces Vibration And Running Noise

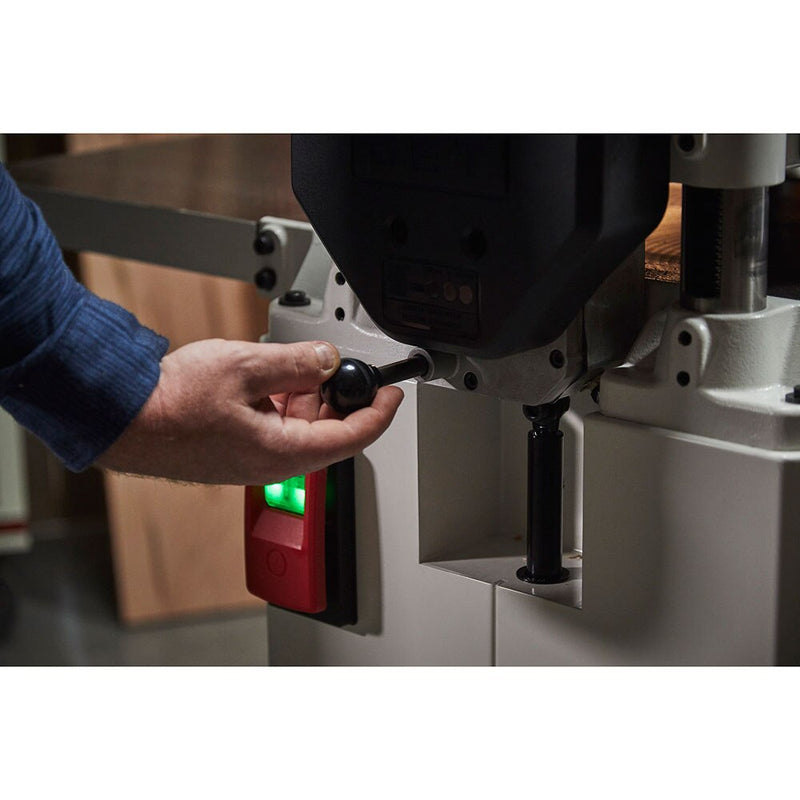

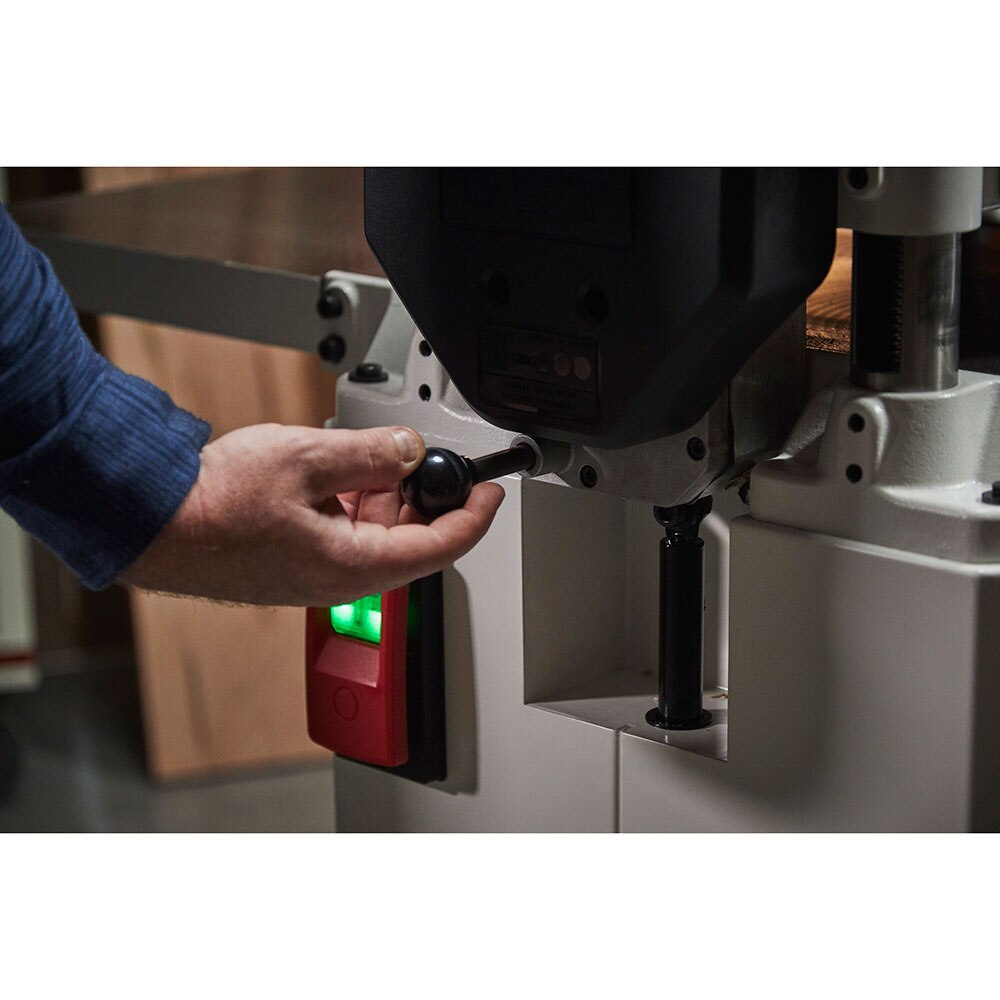

• Dual Infeed Speed Control For 16Fpm Or 20Fpm, Maximizes Cut Efficiency
• Maximum Depth Of Cut 1/8", 6" Cutting Height And 15" Width Capacity

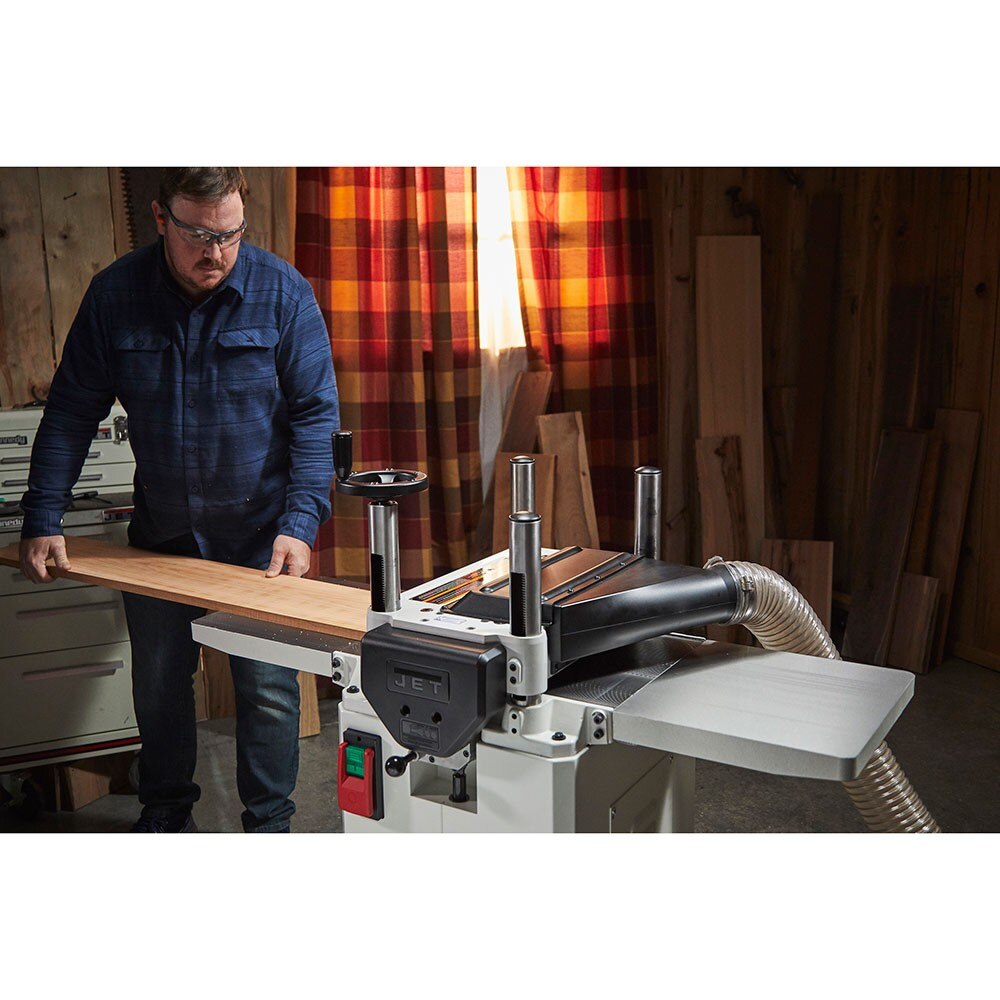

• Large Cast Iron Precision Ground Infeed/Outfeed Tables Provide Support For Large Work Pieces

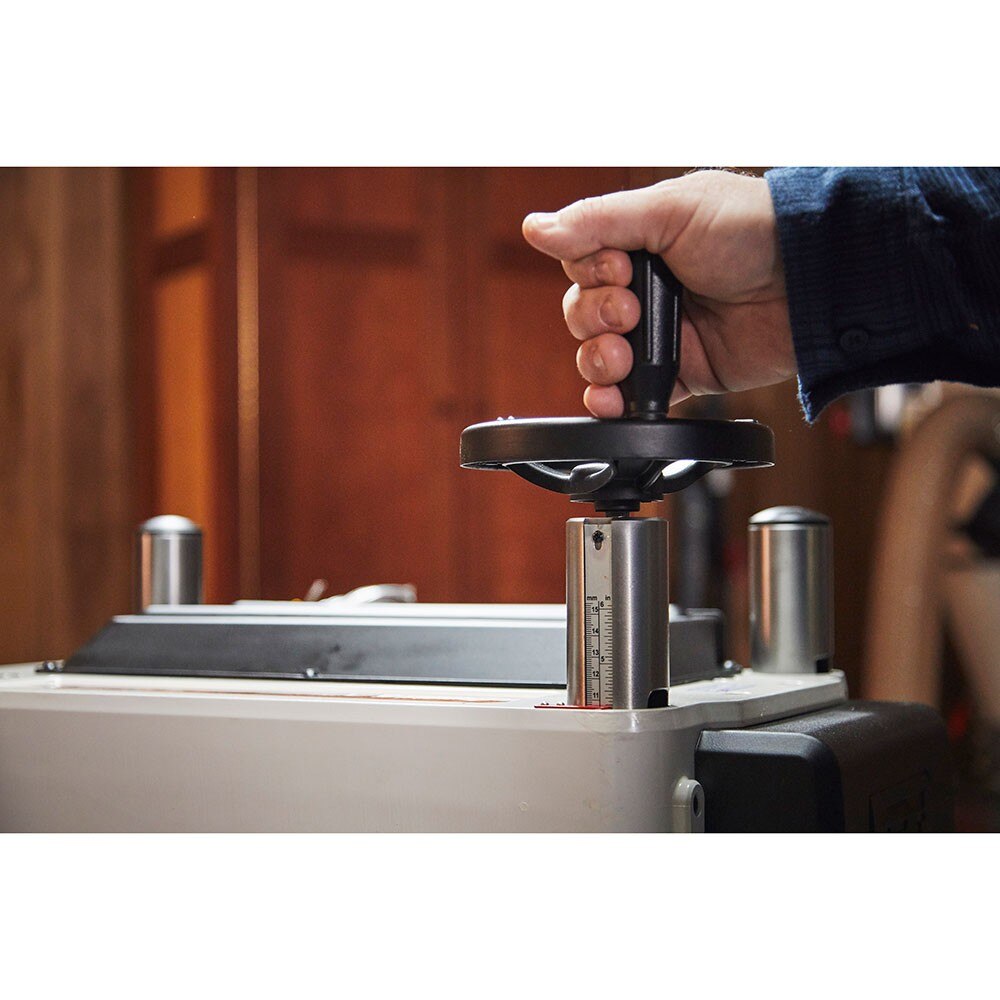

• Large Hand Wheel With Positive Gear Drive Easily Moves The Head To The Desired Board Thickness

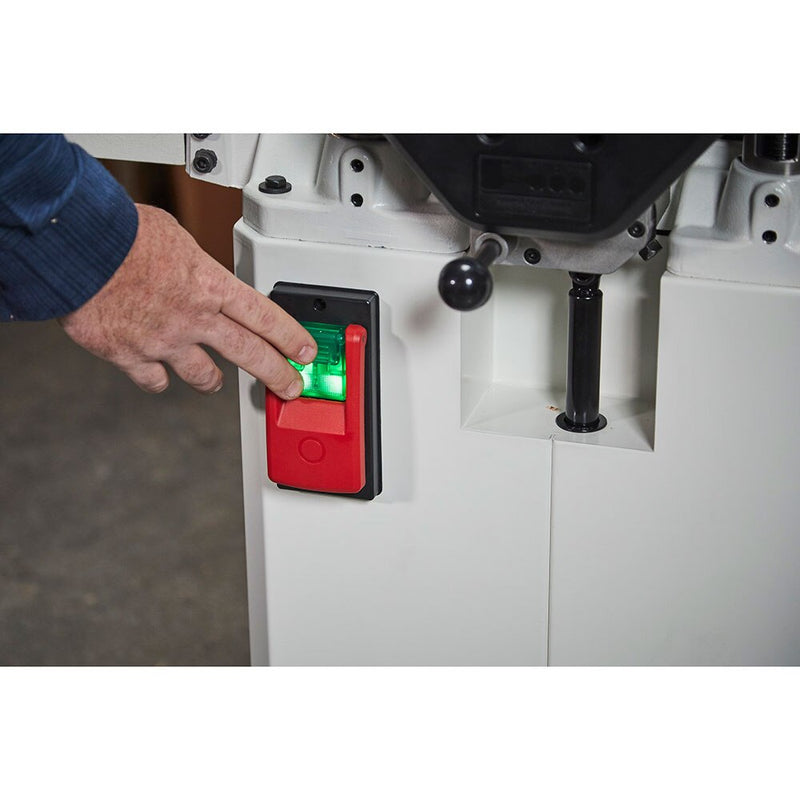

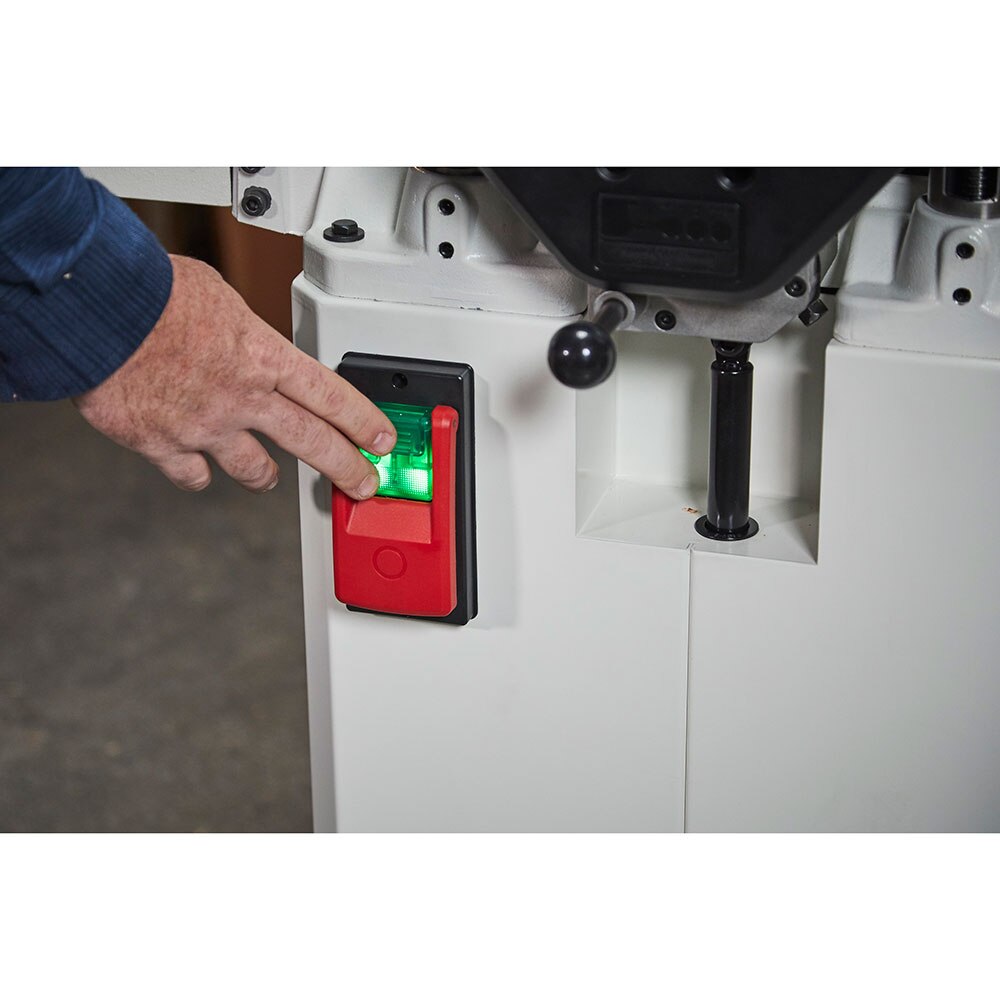

• Magnetic Switch With Green Safety Light Illuminates When Powered

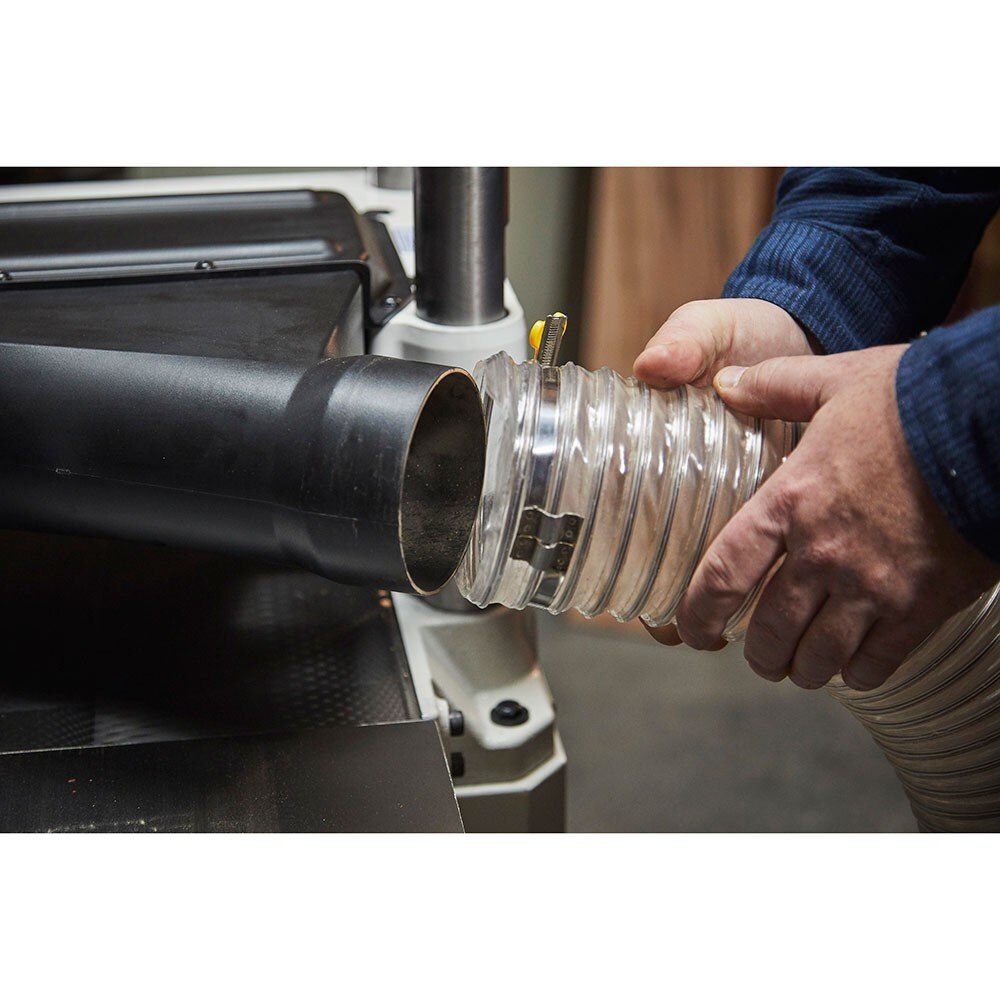

• 4" Dust Port Hooks Up To Dust Management System And Helps Keep Shop Clean
SPECIFICATIONS:
• Height: 44.88"
• Length: 29.92"
• Volume: 20.803
• Width: 26.77"
• Prop 65: Cancer and Reproductive Harm
• Cutterhead Speed (RPM): 5,200
• Maximum Depth of Cut: 1/8"
• Feed Rate (FPM): 16 and 20
• Motor Power (HP): 3
• Dust Collection Minimum CFM Required: 600 CFM
• Number of Speeds: 2
• Number of Knives: 48
• Maximum Planing Thickness: 6"
• Cutterhead Diameter: 2-5/8"
• Motor Amps: 15
• Dust Port Outside Diameter: 4"
• Motor Phase (PH): 1
• Table Size with Extensions (L x W): 15 x 49.2 in.
• Type of Cutterhead: Helical Head
• Maximum Planing Width: 15"
