Description

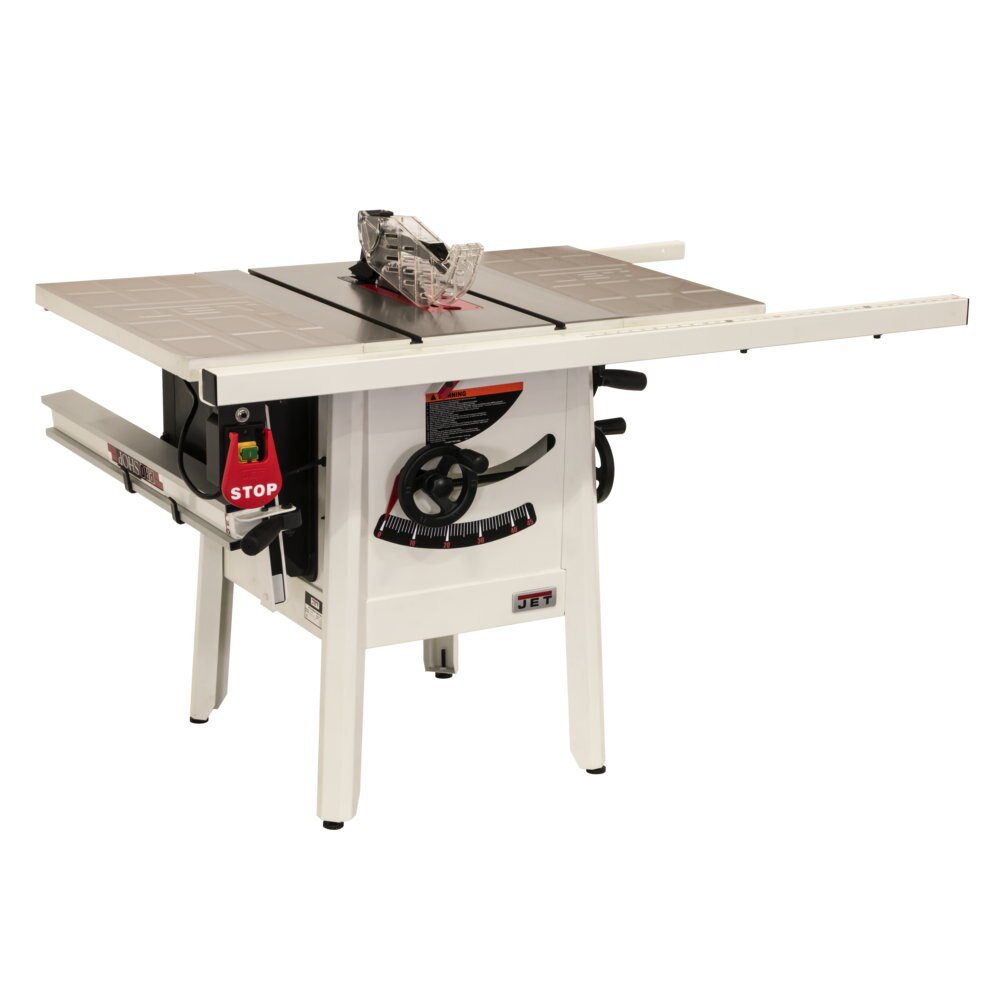

Jet 725004K Description
The JET ProShop Table Saw offers features you expect from a high-end cabinet saw, in the compact design of a contactor-style machine. The redesigned transparent blade guard has independent leaves, and the quick release riving knife reduces chance of kickback. A low profile riving knife and dado insert are included for non-through cuts and dado cuts. The exclusive ProShop fence system is available in 30" or 52" rip capacity.
Jet 725004K Features
- Newly designed arbor lock to change blades quickly and easily
- Quick release riving knife for hassle free riving knife changes
- Improved dust shroud around blade for greater dust collection
- Convenient, magnetic paddle switch for the safest operation possible
- Innovative single belt design for easier belt tensioning and reduced vibration.
- Motor reset switch conveniently relocated to the power switch, instead of the motor
- Low profile riving knife included
- Redesigned guard for better protection and ease of use
- On board storage for all included accessories
- CSA certified
Jet 725004K Specifications
| Recommended Circuit Size (Amps.) | 20 |
| Motor Voltage (V.) | 115 |
| Table Height from Floor (In.) | 34-3/4 |
| Maximum Depth of Cut at 45 Degrees (In.) | 2-1/8 |
| Motor Power (HP) | 1-3/4 |
| Maximum Width of Dado (In.) | 13/16 |
| Table Size (L x W) (In.) | 20 x 27 |
| Table in Front of Saw Blade at Maximum Depth of Cut (In.) | 8.81 |
| Table Size with Extension (L x W) (In.) | 44 x 27 |
| Motor Amps | 14.8 |
| Motor Phase (PH) | 1 |
| Arbor Speed (RPM) | 4000 |
| Maximum Rip Left of Blade (In.) | 13-1/2 |
| Maximum Depth of Cut (In.) | 3-1/8 |
| Miter Gauge Type | T-Slot with Stops |
| Table Type | Cast Iron |
| Arbor Diameter (In.) | 5/8 |
| Dust Collection Minimum CFM Required (CFM) | 350 |
| Maximum Rip Right of Blade (In.) | 30 |
| Prewired Voltage (V.) | 115 |
| Maximum Diameter of Dado (In.) | 8 |
| Blade Diameter (In.) | 10 |
| Dust Port Outside Diameter (In.) | 4 |
