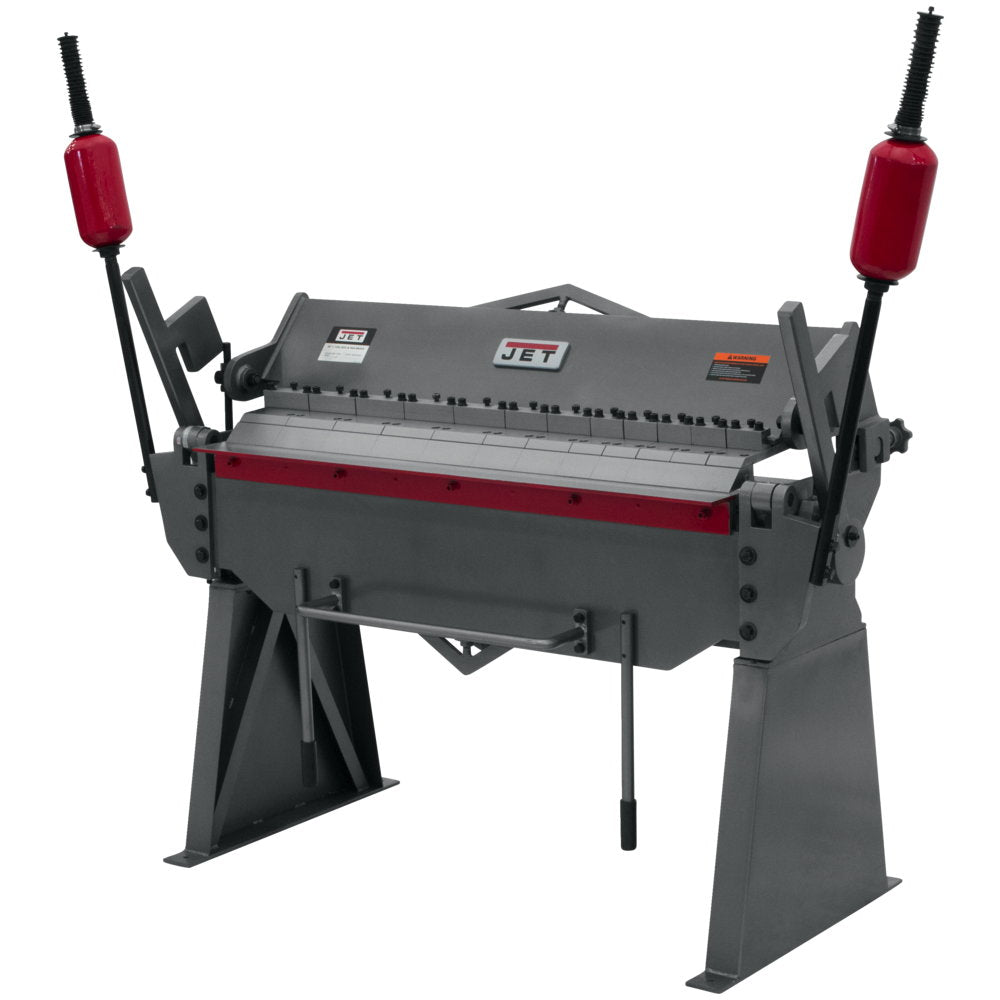

Description
FEATURES:
• Wide assortment of finger widths allow greater versatility in the shop
• With fingers installed it can be used as a full-length nose bar, turning the machine into a straight bending brake
• All body sections are welded steel plate with heavy truss rods and braces designed to give greater strength and durability
• Both the bed and apron are bored in line to assure the utmost accuracy
• Counter weights can be moved up or down to adjust desired leverage
• Stop rod for repeatable bending
• 12 gauge maximum capacity for mild-steel
• 10 gauge maximum capacity for aluminum and copper alloys
• 16 gauge maximum capacity for stainless steel
SPECIFICATIONS:
• Style (Type): Floor Box and Pan
• Maximum Box Depth (In.): 4
• Maximum Lift of Beam (In.): 1-1/2
• Number and Width of Fingers (In.): 12 (5@3in, 2@4in, 5@5in)
• Finger Nose Angle (Deg.): 45
• Bending Length Capacity (In.): 48
• Weight (Lbs.): 1,110
• Mild Steel Capacity
• Wide assortment of finger widths allow greater versatility in the shop
• With fingers installed it can be used as a full-length nose bar, turning the machine into a straight bending brake
• All body sections are welded steel plate with heavy truss rods and braces designed to give greater strength and durability
• Both the bed and apron are bored in line to assure the utmost accuracy
• Counter weights can be moved up or down to adjust desired leverage
• Stop rod for repeatable bending
• 12 gauge maximum capacity for mild-steel
• 10 gauge maximum capacity for aluminum and copper alloys
• 16 gauge maximum capacity for stainless steel
SPECIFICATIONS:
• Style (Type): Floor Box and Pan
• Maximum Box Depth (In.): 4
• Maximum Lift of Beam (In.): 1-1/2
• Number and Width of Fingers (In.): 12 (5@3in, 2@4in, 5@5in)
• Finger Nose Angle (Deg.): 45
• Bending Length Capacity (In.): 48
• Weight (Lbs.): 1,110
• Mild Steel Capacity
