Description
FEATURES:
• Smooths beads and forms mild steel sheet metal up to 16 Gauge
• Smooths beads and forms aluminum and copper up to 1/8 in. thick
• Machine supplied with a pair of upper and anvil dies
• 3-Position airflow regulates speeds of pneumatic hammer
• Machine controlled with 110V AC foot control
• 2-Die Set Brackets
• Quick change of upper dies
• Retractable handle makes machine easy to move around the shop
• Wider base support to prevent movement of machine while in use
SPECIFICATIONS:
• 3-Speed Regulator (Hits Per Min.): 4,400 - 4,800 / 3,200 - 3,500 / 1,800 - 2,000
• Frame Tube Sizes (In.): 4 x 4
• Head Opening (In.): 2-1/2
• Throat (In.): 24
• Noise Level (DB): 93 - 105
• Overall Dimensions (L x W xH) (In.): 61 x 31 x 28
• Maximum Pressure (PSI): 90
• Weight (Lbs.): 258
• Air Consumption (CFM): 8.8

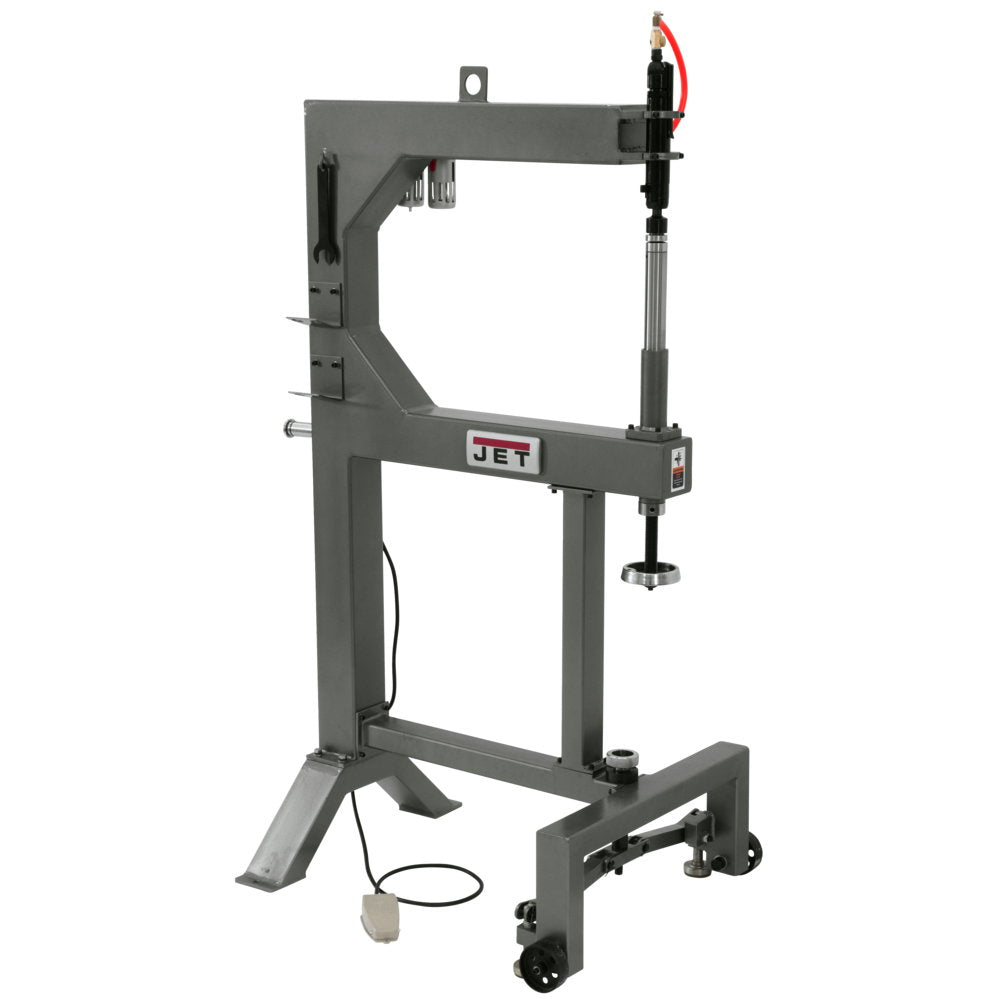

JET’s 24” Planishing Hammer has a quick change set up on the upper dies and a deep throat that works to the middle of most panels. The head with 3-speed regulator is capable of 4,400 – 4,800 / 3,200 – 3,500 / 1,800 – 2,000 blows-per minute (BPM). Easy to-reach, adjustable flow control valve allows the user to deliver the proper BPM needed for any job. Operates on standard shop air.
