Description
FEATURES:
• Durability
• Welded all-steel frame and powder coat finish provide maximum durability and protection
• Clamp jaw is designed to distribute the load away from the beam flange edge increasing safety
• Used for quick mounting of a hoist or for lifting a broad range of beams up to 12-3/5 inches wide for increased versatility
• Standards
• Complies with ANSI / ASME B30.17 and B30.20 standards
• Certification- Load tested to 125% of capacity with certificate
SPECIFICATIONS:
• Load Capacity (Metric Tons): 3
• Capacity (Lbs.): 6,600
• Weight (Lbs.): 21
• Maximum Beam Flange Width (In.): 12-3/5
• Minimum Beam Flange Width (In.): 3-1/7
• Load Capacity (Tons): 3

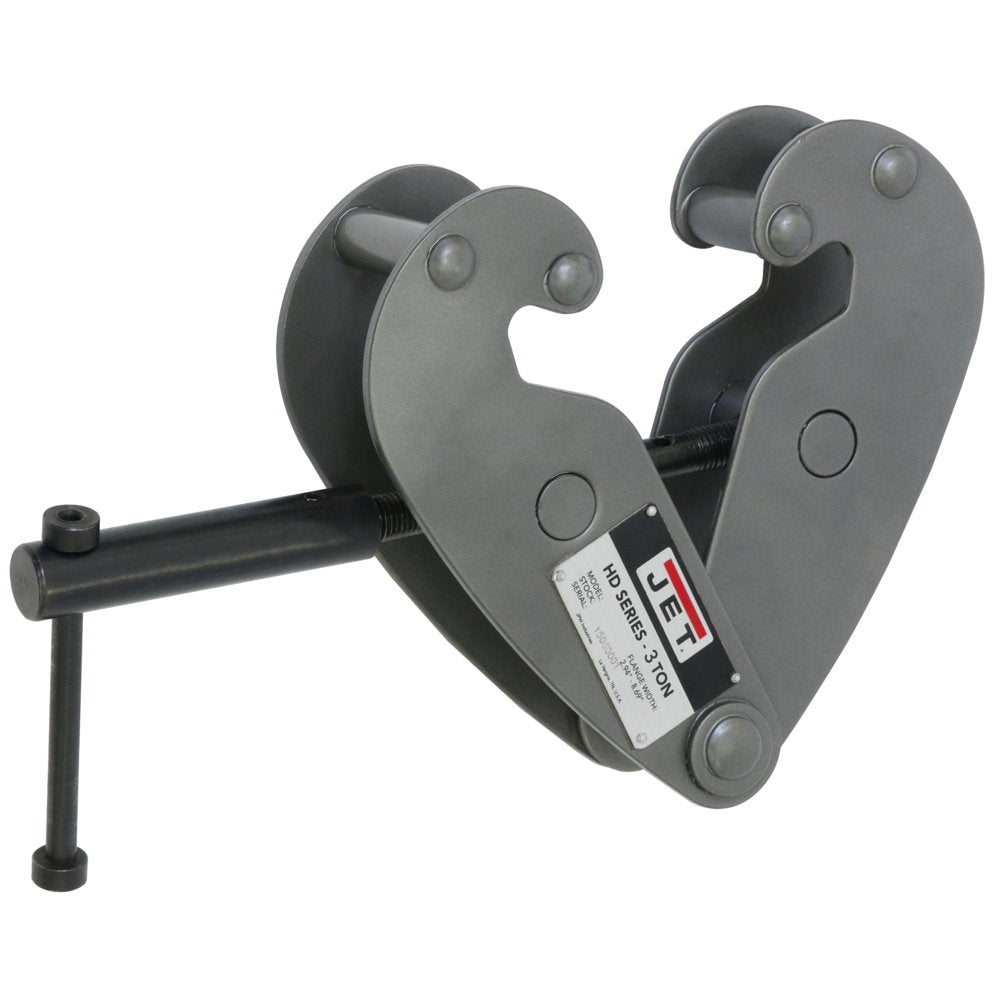

JET HD Series Beam Clamps come in capacities from 1 ton to 5 tons and can accommodate a beam up to 12 inches wide. Each JET beam clamp jaw is designed to distribute the load away from the beam flange and adjusts easily for a wide range of standard H or I beams. Available up to 5 Ton capacities, the HD Series has a greater beam flange width for wider beams.
